Carbon Steel Flange for Low-Pressure Water Supply
Per l’approvvigionamento industriale
Prepara una RFQ più chiara
Includi i dati seguenti per aiutare RELIA a comprendere il componente e definire il passo successivo.
- Disegno, campione o norma di riferimento
- Grado materiale e processo preferito
- Dimensioni, tolleranze e finitura superficiale
- Applicazione, quantità obiettivo e destinazione
Tempi di produzione, imballaggio e condizioni di spedizione vengono confermati per ogni progetto dopo l’accordo su specifiche e condizioni commerciali.
-
Surface TreatmentPolishedApplicationIndustrial Equipment
-
Bolt Hole Diameter1/2"Bolt Hole Quantity4

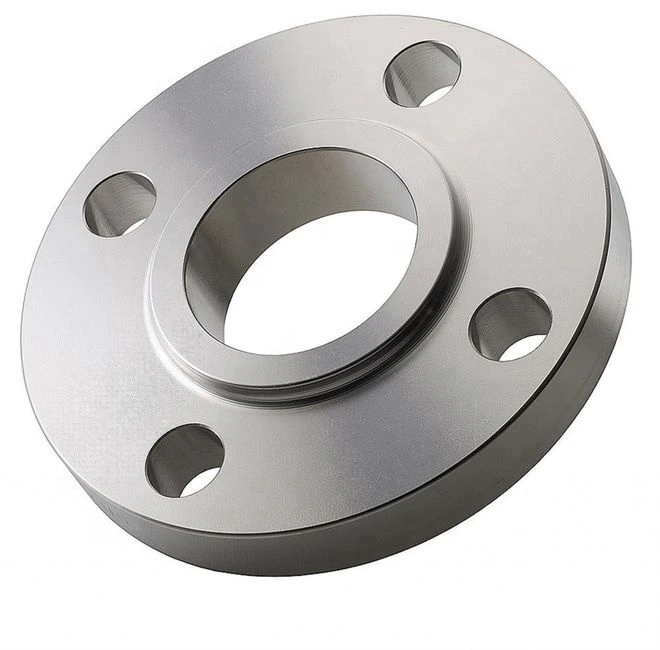

This carbon steel flange listing is intended for low-pressure water supply enquiries. Its title references JIS B2220, S10C, ASME and ISO, and describes a Polished plate flange. Confirm the actual construction and material documentation before matching these references to a specific water-system connection.
Identify the intended plate construction
The selectable types cover several flange designs, but do not include a separate Plate Flange choice. Ask for the drawing of the proposed component rather than treating the plate wording as another name for an existing option. Select the actual type and connection details required by the project.
Specify nominal size, facing, thickness, bore and the full drilling pattern. The table states four half-inch bolt holes; verify their applicability against the mating flange. The shared 1/2–120 inch range does not demonstrate a common drilling layout or confirm every material and construction combination as available.
Confirm S10C and the applicable specification
Request actual grade, condition and traceability records supporting the S10C designation. Carbon Steel is the generic selectable material and does not independently verify that more specific reference. Define the intended finish beyond Polished and agree how the relevant surfaces will be inspected.
Confirm the applicable edition and selected requirements of JIS B2220 for the actual component. ASME and ISO wording does not supply additional numbered specifications or establish certification. Agree the required dimensional and connection basis without assuming interchangeability between different standard systems.
Quantify the water supply duty
Low Pressure is a general description rather than a numerical operating limit. Provide water composition, temperature, normal and transient pressure, cycles and joint requirements for review. No potable-water approval is established here. Confirm the material and dimensional inspections, finish acceptance, marking, preservation, quantity and delivery against the actual water-system specification.
Informazioni tecniche per ogni richiesta prodotto
Prepara i requisiti prima della conferma finale del prodotto.
La pagina prodotto è un punto di partenza. Disegni, campioni, interfacce, materiali, quantità e accettazione vengono verificati prima di confermare stock o produzione.
Valuta questo prodotto nel contesto del tuo progetto.
Condividi disegno, campione, riferimento, quantità e applicazione. I punti non definiti possono restare aperti.
