DIN ANSI PN16 Forged Plate Flange, Carbon Steel or 304/316/316L Stainless Enquiry
Per l’approvvigionamento industriale
Prepara una RFQ più chiara
Includi i dati seguenti per aiutare RELIA a comprendere il componente e definire il passo successivo.
- Disegno, campione o norma di riferimento
- Grado materiale e processo preferito
- Dimensioni, tolleranze e finitura superficiale
- Applicazione, quantità obiettivo e destinazione
Tempi di produzione, imballaggio e condizioni di spedizione vengono confermati per ogni progetto dopo l’accordo su specifiche e condizioni commerciali.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.25 in
-
Pipe Class1000SizeCustomized Size
-
Product nameElbow
This DIN/ANSI PN16 plate-flange enquiry brings together carbon-steel and 304/316/316L stainless references. Define one supplied component specification before comparing quotations. Product naming and ring photographs cannot certify an accepted grade, standard, facing or operating capability.
Choose the document that controls the joint
Identify the governing DIN or ANSI document, edition and required dimensional provisions. Agree the supplied plate construction, pipe attachment and mating-flange requirements explicitly. Different standard names do not establish a common drilling pattern, face arrangement or rating; request the corresponding conformity and inspection records.
The fifteen actual Flange choices pair each 10 mm, 12 mm, 14 mm, 50 mm and 30 mm label with Stainless Steel, Alloy or Carbon Steel. Explain the selected label's nominal or measured meaning. Specify material designation, grade, condition and traceability; stainless title grades cannot certify the other alternatives.
Compare the full mating dimensions
Submit the mating drawing with bore, outside diameter, thickness, bolt circle, hole count and diameters, face geometry, relevant pipe-end preparation and tolerances. The separate 0.25-inch mounting-hole entry cannot define the complete interface. Customized Size and Equal/Hexagon wording require confirmation against approved geometry.

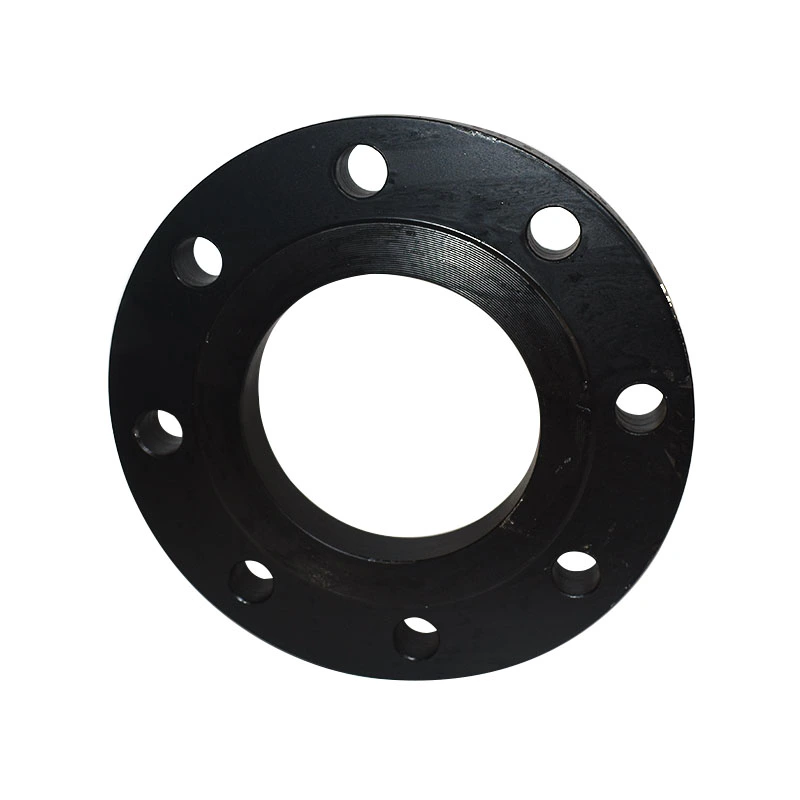

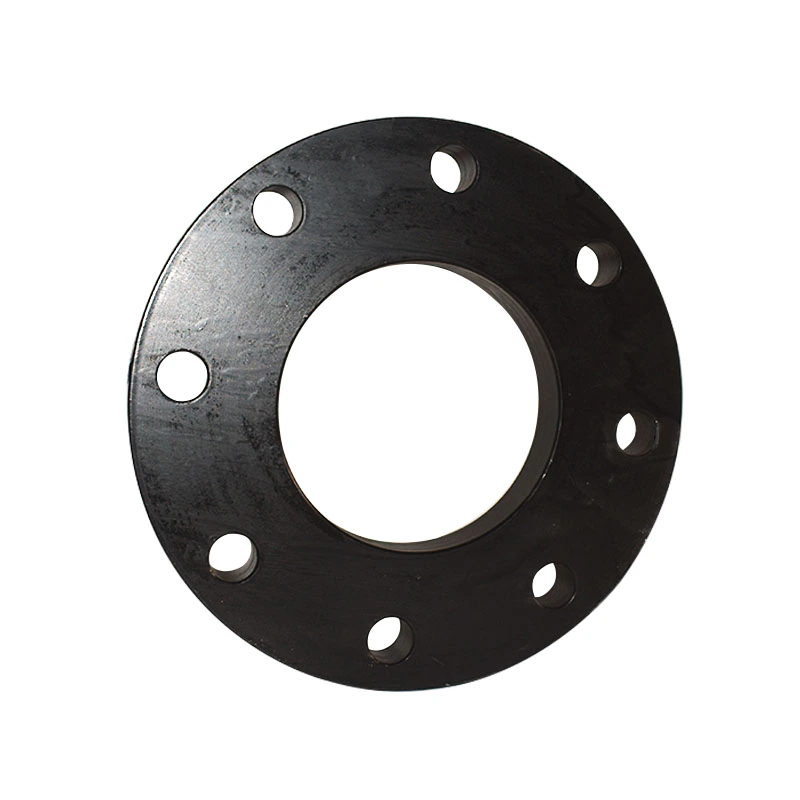

The reference views show drilled annular forms, including visible face lines on a dark ring. They cannot establish supplied face type, grade, forging or painting. Obtain relevant production records and define the component-specific welding scope, finish coverage and functional-surface exclusions.
Set inspection and operating acceptance together
Resolve the governing basis of PN16, the title's class reference and the Class 1000 table entry through accepted documents. Avoid assumed numerical equivalence. State medium, pressure, temperature, cycling and imposed loads; specify compatible gasket and bolting, assembly responsibilities and inspection criteria. Include requested OEM/ODM/OBM deliverables and the stated one-year warranty terms.
Informazioni tecniche per ogni richiesta prodotto
Prepara i requisiti prima della conferma finale del prodotto.
La pagina prodotto è un punto di partenza. Disegni, campioni, interfacce, materiali, quantità e accettazione vengono verificati prima di confermare stock o produzione.
Valuta questo prodotto nel contesto del tuo progetto.
Condividi disegno, campione, riferimento, quantità e applicazione. I punti non definiti possono restare aperti.
