Custom Carbon Steel Tee for Oil and Gas Pipelines

• warranty

  1 Year
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Equal
  head code

  Hexagon
• Overall Length

  Customized Size
  Height

  Customized Size
• Surface Treatment

  Painting
  Pressure

  High Pressure
• System of Measurement

  Metric
  Mounting hole diameter

  Customized Size
• Pipe Features

  Other
  Pipe Class

  Other
• Application

  Other
  Thread Types

  Customized Size

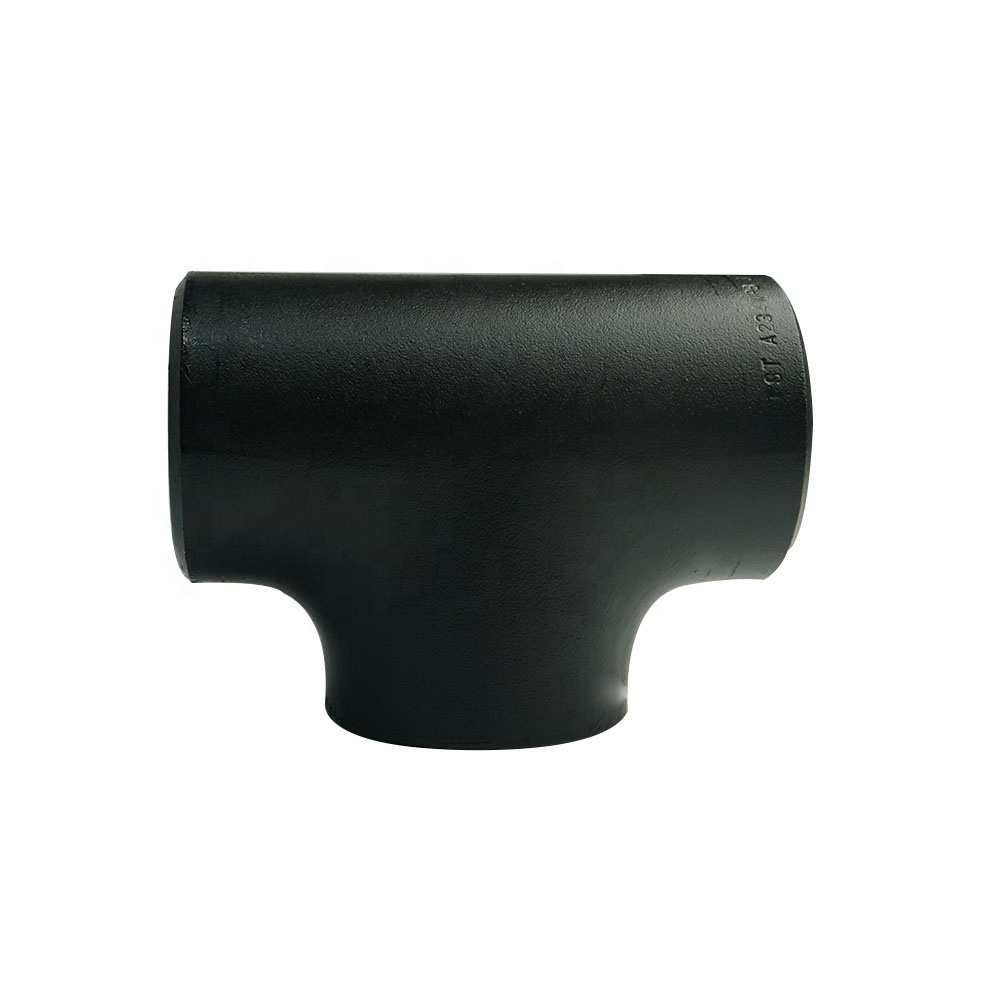

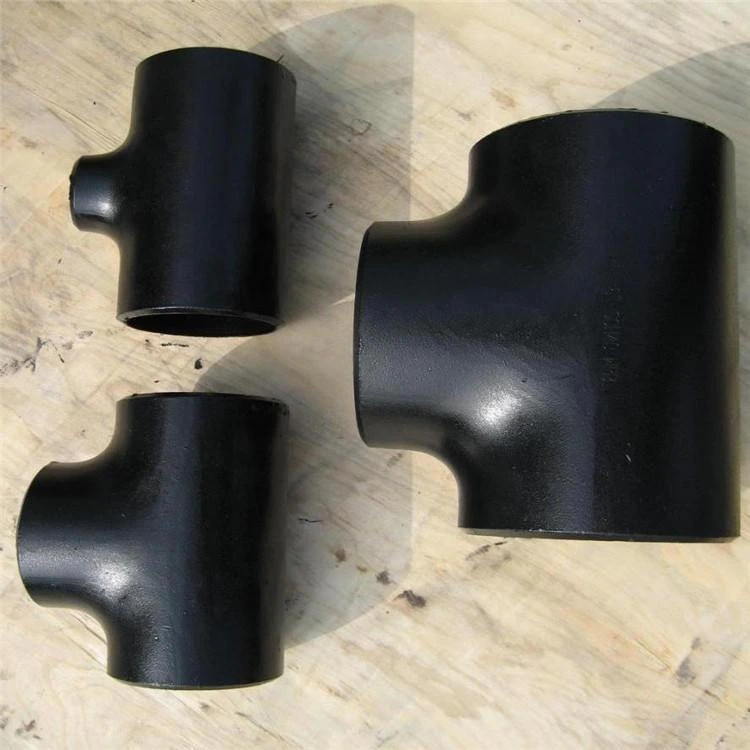

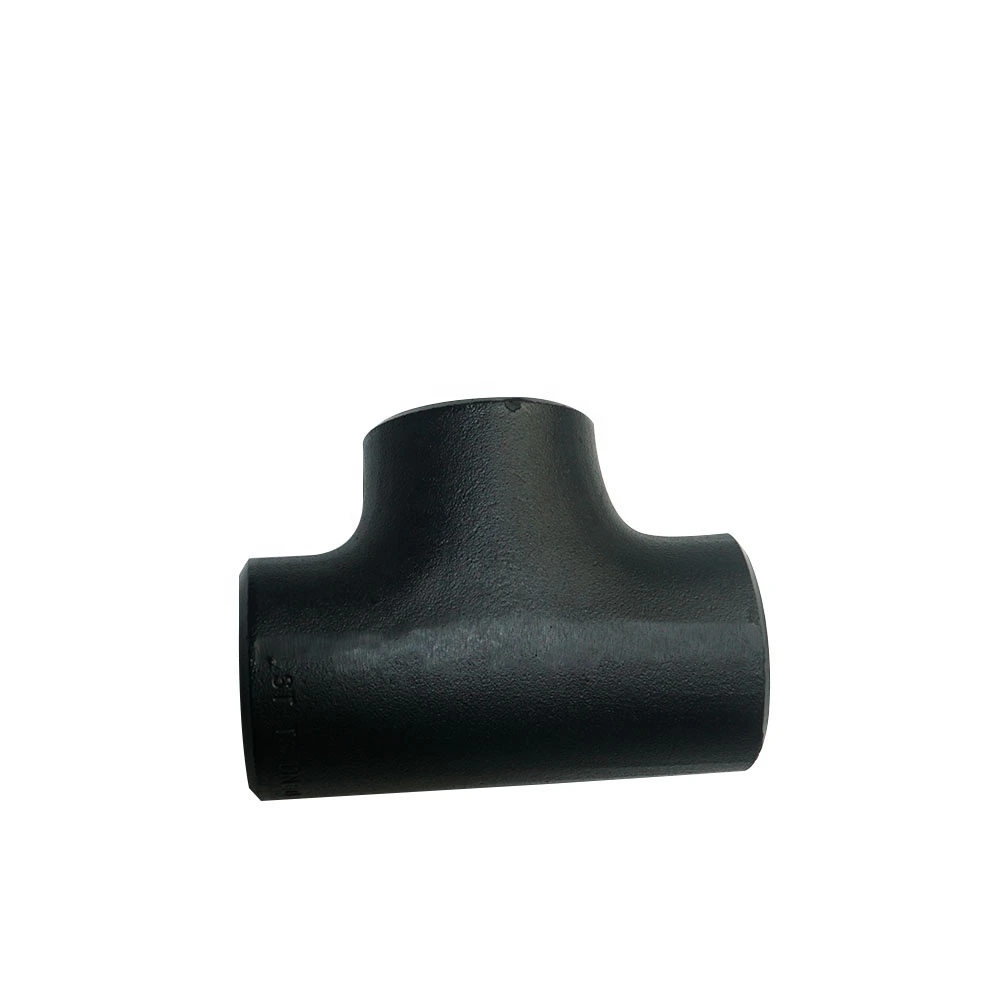

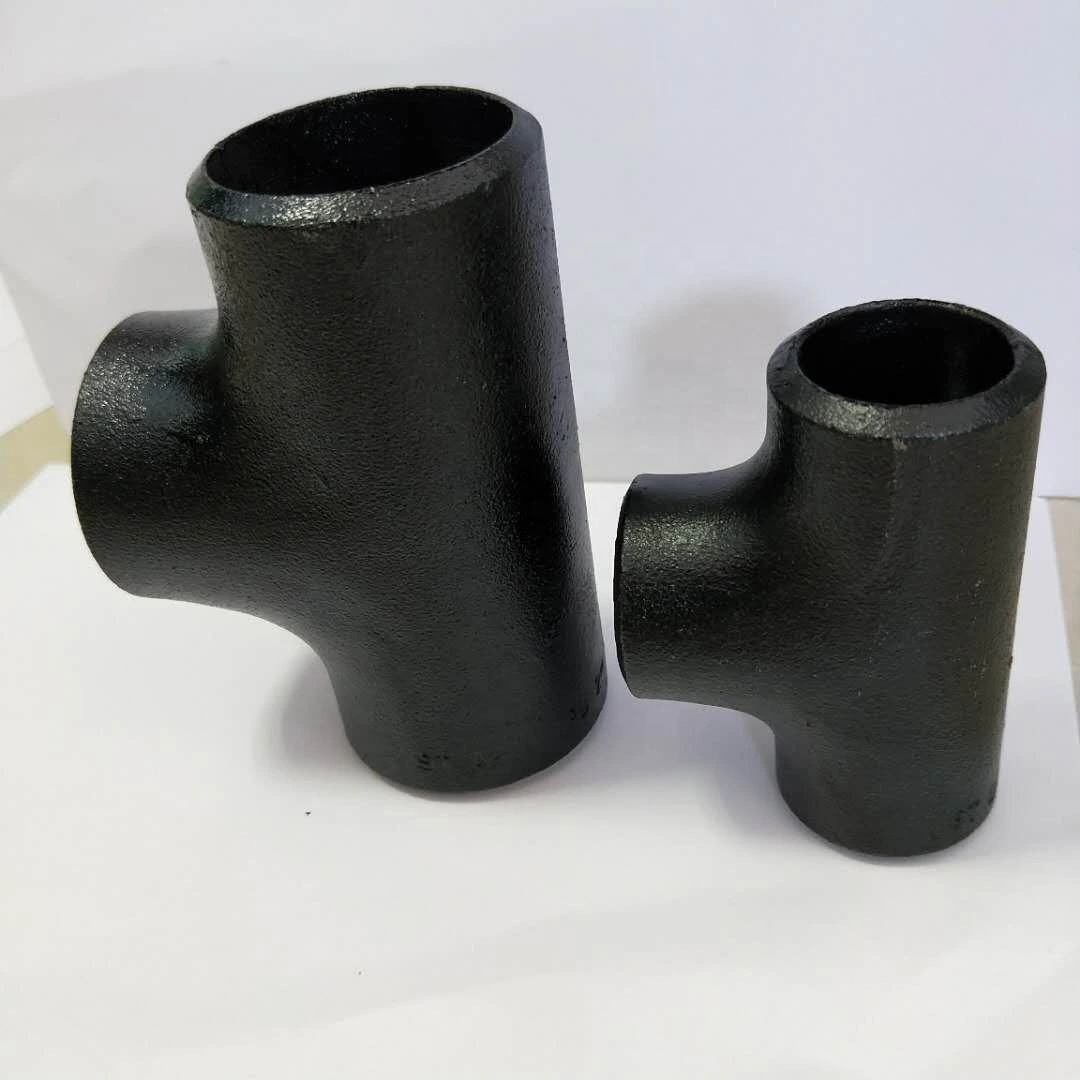

This customizable carbon steel tee listing is intended for oil and gas pipeline enquiries, including large-diameter requirements. The main photograph shows tee forms, but the actual variants are labelled Reducer. Establish the selected geometry and confirmed customization scope before interpreting the title as a complete supply offer.

Turn the customization request into a dimensional drawing

Specify run and branch sizes, every end dimension, center distances, overall length and height for the intended layout. Include wall thickness or schedule and required welding end preparation. Large Diameter gives no exact size, and Customizable does not demonstrate unrestricted manufacturing capability.

The variant entry spans half-inch to 110 inches and the table uses metric measurement. Agree the actual dimensions and unit basis for the chosen size. Resolve the Equal field and Reducer-labelled selection against the drawing; photographed proportions do not establish measured end equality or the exact offered configuration.

Identify the governing standards and manufacturing evidence

The title names ASME and ASTM without document numbers. Request the exact governing documents, editions and selected scope rather than importing a standard from a similar fitting. Carbon Steel and a234wpb are the two material labels; confirm the required material designation and full condition with traceable records.

Obtain manufacturing and inspection evidence for the forged and welded descriptions appropriate to the selected supply. Define the painted finish, preparation and acceptance criteria. Customized mounting-hole and thread fields should only become requirements where the actual drawing establishes those interfaces; the labels alone do not provide them.

Assess the pipeline duty for the confirmed design

Provide oil or gas composition, pressure, temperature, cycling and mechanical loads for material, joint and rating assessment. High Pressure supplies no numerical operating limit. Agree project tests and acceptance records for the confirmed custom dimensions, manufacturing condition and finish before treating the fitting as suitable for that pipeline duty.
