Carbon Steel SCH5S Welded Tee
Per l’approvvigionamento industriale
Prepara una RFQ più chiara
Includi i dati seguenti per aiutare RELIA a comprendere il componente e definire il passo successivo.
- Disegno, campione o norma di riferimento
- Grado materiale e processo preferito
- Dimensioni, tolleranze e finitura superficiale
- Applicazione, quantità obiettivo e destinazione
Tempi di produzione, imballaggio e condizioni di spedizione vengono confermati per ogni progetto dopo l’accordo su specifiche e condizioni commerciali.
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPlainPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesCustomized SizePipe ClassCarbon Steel
-
ApplicationShipbuilding, Oil Field, Offshore, Water System, Natural GasThread TypesCustomized Size
Specify one material and wall requirement for this carbon-steel welded-tee enquiry. A234 WPB, WPC, A105 and SCH5S appear in the title, but do not establish a certified multi-grade component. Confirm the full designation, grade, condition and applicable documents for the actual quotation.
Identify which material references are supplied choices
The two actual selections use Carbon Steel or a234wpb wording, Reducer type and one 1/2-to-110-inch label. WPC and A105 are title references rather than separate recorded material options. Obtain accepted material allocation and traceable records before promising either as delivered supply.

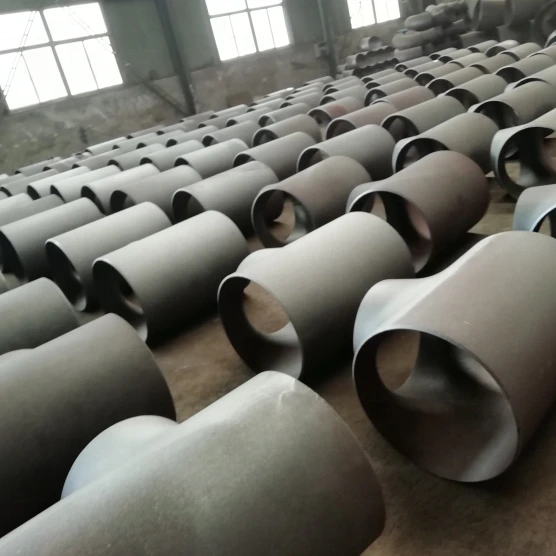

Confirm actual tee identity against the type discrepancy. Reference images show branched forms but cannot certify supplied configuration or grade. Select one requested nominal size, clarify measured conventions and Metric wording, and confirm individual availability instead of treating the range-like label as continuous supply.
Approve the SCH5S drawing for the quoted material
Define run/branch end diameters, branch angle, center-to-end distances, actual wall/end thickness, preparation and tolerances. Identify the intended SCH5S dimensional basis and its application to the quoted component. Resolve Equal, Hexagon and customized length, height, hole, feature and thread entries through relevant drawing definitions.
Specify complete governing material/component documents and editions. Obtain manufacturing and inspection evidence for the actual forged/welded body requirements, separately from Welding installation connectivity. Agree Plain supplied surface condition; reference color and title wording do not certify body construction, conformity or protective performance.
Set numerical duty and release requirements
High Pressure is nonnumeric, and Carbon Steel under Pipe Class is material wording. State medium, pressure, temperature, cycling, loads, material compatibility and connected joint conditions. Listed industrial contexts need actual acceptance. Agree material/manufacturing/dimensional and joint inspection, marking/traceability, installation, confirmed size supply, OEM scope and stated one-year warranty terms.
Informazioni tecniche per ogni richiesta prodotto
Prepara i requisiti prima della conferma finale del prodotto.
La pagina prodotto è un punto di partenza. Disegni, campioni, interfacce, materiali, quantità e accettazione vengono verificati prima di confermare stock o produzione.
Valuta questo prodotto nel contesto del tuo progetto.
Condividi disegno, campione, riferimento, quantità e applicazione. I punti non definiti possono restare aperti.
