Stainless Steel Butt-Weld Pipe Elbow Enquiry

• model number

  1/2"--72"
  Technic

  Pushing
• Connectivity

  Welding
  shape

  Equal
• head code

  Round
  Surface Treatment

  Smooth
• Mounting hole diameter

  0.26 in
  Pipe Class

  1000
• Standard

  ASME
  Size

  Customized Size
• Color

  Balck

This stainless steel butt-weld pipe elbow listing has one actual Elbow variant with a broad stainless material designation. Develop the enquiry from a selected bend drawing: the page does not assign an angle, bend radius, wall schedule or exact grade. These details determine how the elbow connects the two adjoining pipes.

Set the bend angle and radius before choosing dimensions

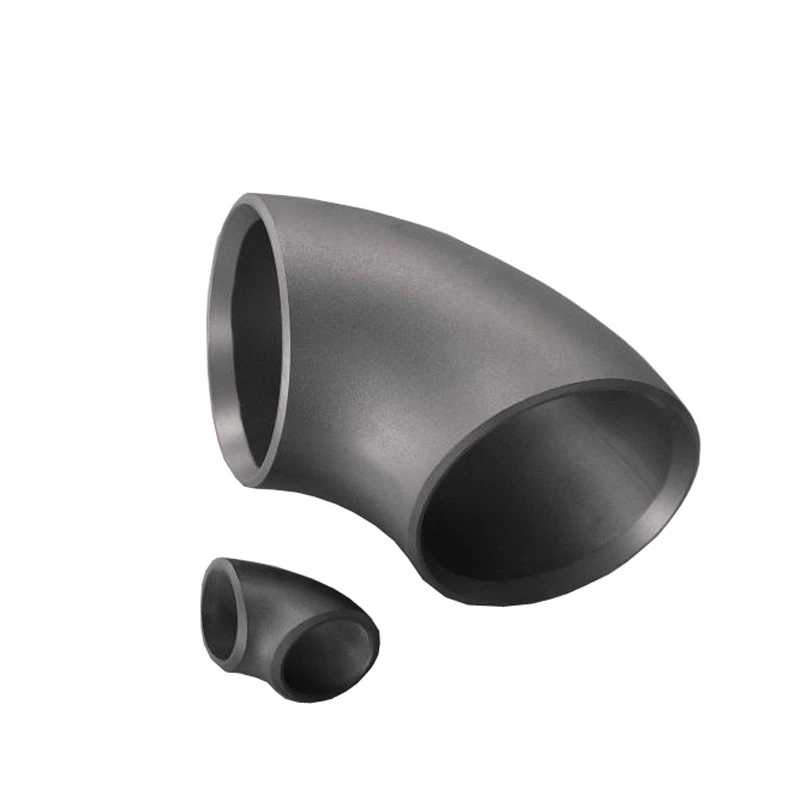

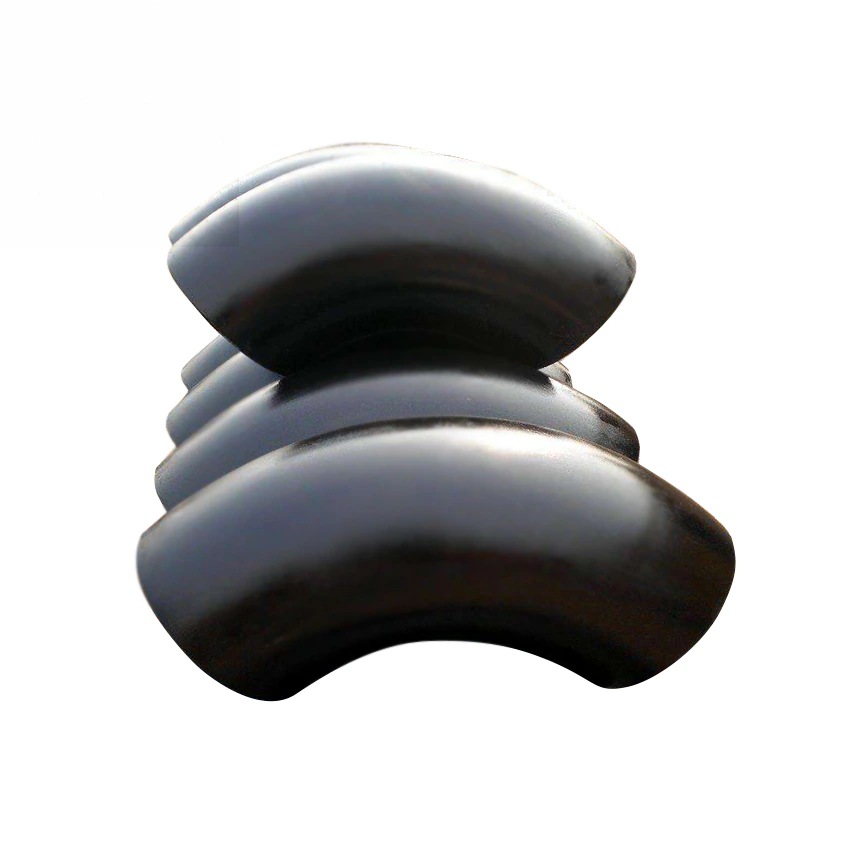

State the intended change of direction, centreline radius and centre-to-end dimensions. Define one nominal size, its convention, both outside diameters and actual walls, confirming the Equal end relationship. The half-inch to seventy-two-inch option is a range-like label rather than a selected dimension or proven supplied range. Neither the mounting-hole entry nor the dark curved shapes in the gallery establish end dimensions, angle or radius.

Document the stainless material and applicable elbow standard

Specify an exact stainless grade and material document with records linked to the selected elbow. The title and option do not identify a particular grade. Ask for the numbered ASME document, edition and applicable dimensional inspection; avoid assigning a standard number from the generic ASME field. Support the Pushing process entry through production and inspection evidence. Appearance cannot establish metallurgy or manufacturing route.

Check both butt-weld connections under actual bend duty

Match the end preparation to both adjoining pipes and agree alignment, joining procedure and inspection clearance around the bend. Clarify actual surface and weld-zone condition beyond Smooth and the original color entry. Establish the unit and standard basis behind Pipe Class 1000 before interpreting it for service. Provide fluid, pressure, temperature, corrosion and bend loads for assessment of the elbow, both pipes and completed welds. Customized Size alone does not confirm a dimension can be supplied.
