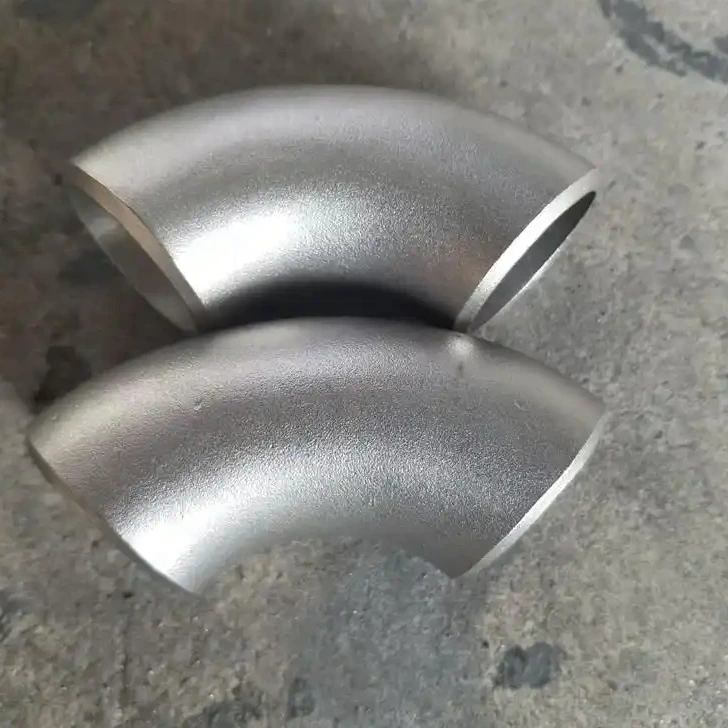

SCH40 45° Long Radius Seamless Elbow

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This SCH40 45-degree long-radius seamless elbow listing combines a specific angle/schedule enquiry with a generic Carbon Steel material choice. The sole variant uses a shared half-inch-to12-inch label. Confirm the individual size, actual geometry and construction records before matching the elbow to the project pipe route.

Match long-radius geometry and SCH40 wall to pipework

Request a selected drawing with nominal size, angle/tolerance, centerline radius, center-to-end lengths, bore, outside diameter and actual wall dimensions/tolerances. Long Radius wording alone does not establish installation clearance. Check the bend envelope and required alignment against the available route.

Allocate SCH40 to the selected size, material/dimensional basis and each mating end. The schedule is not a standalone operating-pressure rating. Confirm individual availability; the common range and repeated length/height fields do not establish every supplied size or measured component dimension.

Document seamless construction and manufacturing claims

The title says Seamless, the table says FORGED, and connectivity is Welding. Confirm the body manufacturing route and seamless evidence separately from the attachment method. These terms require allocation to actual records rather than assuming one proves or contradicts the others.

Specify the full carbon-steel material document, grade, condition and traceability. No particular grade or dimensional standard is named here. Clarify Hexagon, mounting-hole and NPT entries against the selected component; agree mating pipe wall, end preparation, welding procedure and inspection without adding unsupported interfaces.

Agree finish evidence and actual construction duty

Set smooth-finish criteria and medium-specific evidence for the corrosion-resistant claim. Low Pressure is qualitative, and Not Rated leaves numerical capability unknown. State medium, pressure, temperature, cycling, loads and compatibility, obtain fitting/joint acceptance, and agree material/manufacturing/dimensional documents, marking, size supply, quotation scope and three-year warranty/OEM terms.
