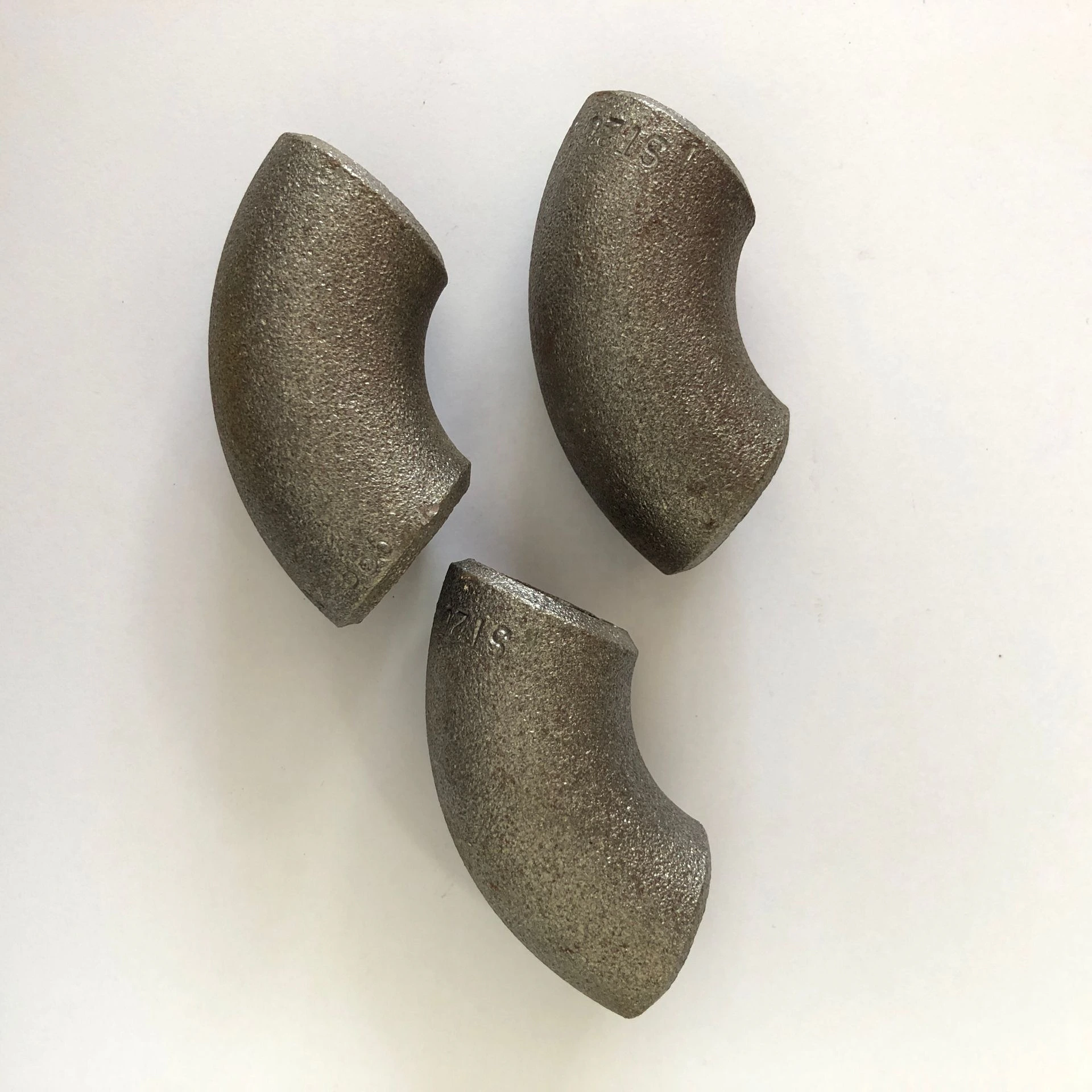

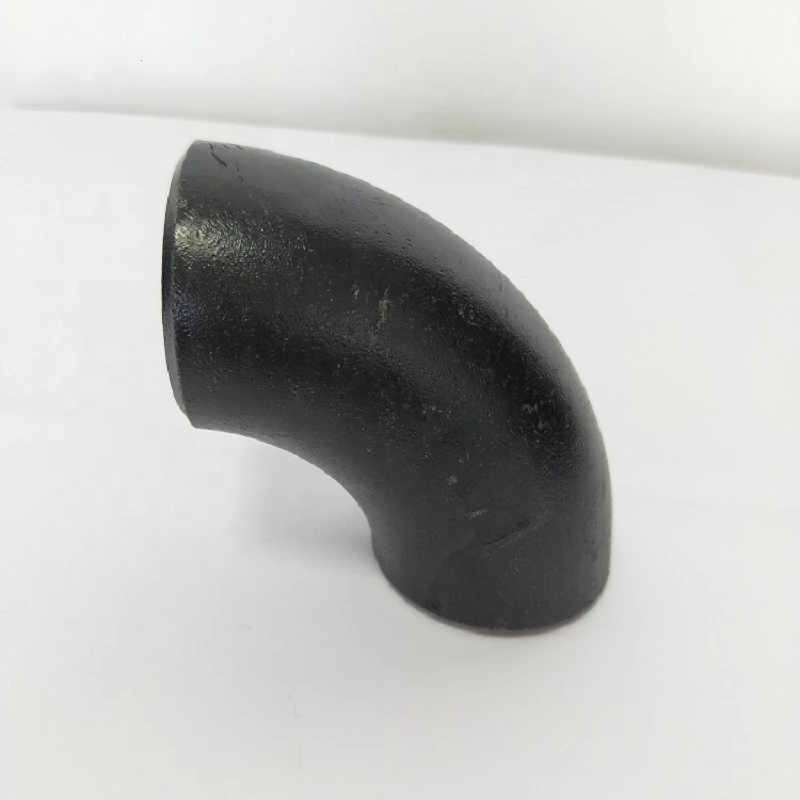

WPB Carbon Steel 90-Degree Long-Radius Welded Elbow

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This WPB carbon steel 90-degree long-radius welded elbow is listed for industrial piping with A234 and STD references. The actual size option is a half-inch to 12-inch range. Confirm the individual size, wall and manufacturing description before approving a supply quotation.

Translate STD into an individual dimensional requirement

Request the actual wall dimensions and governing dimensional basis behind STD for the selected size. Do not automatically substitute another schedule designation. Specify the nominal sizing convention, 90-degree angle, actual long radius and tolerances together with the matching pipe dimensions.

The length, height and hole entries repeat the range rather than provide finished measurements. Obtain these dimensions on the approved drawing and clarify the Hexagon head code. The range does not establish availability or completed inspection of each nominal size.

Clarify welded wording, forged production and material scope

Resolve the title description Welded against FORGED in the table using the actual production record. Explain whether welding wording describes manufacture or connection, without assuming seamless or butt-weld construction. Request the complete WPB material designation, condition, certificates and traceability, plus the A234 document, edition and actual conformity scope.

Allocate Welding and NPT to specific ends with preparation, any applicable full thread designation, mating components, sealing and examination. Agree measurable smooth-surface acceptance and protection during delivery. A generic connectivity entry does not supply a complete joint specification.

Confirm industrial service and corrosion acceptance

Record the actual medium composition, pressure and temperature limits, cycles, external exposure and mechanical loads. Low Pressure and Not Rated leave numerical industrial duty unverified for the selected elbow. Assess corrosion resistance for the stated conditions and obtain material, joint and rating evidence. Agree the resolved drawing, production route and inspection/testing requirements before project acceptance.
