EN1092 PN6 / 10 / 25 / 40 Stainless 304 Socket-Weld Flange Enquiry

• Surface Treatment

  FF
  model number

  DIN ANSI JIS
• Application

  Agricultural Irrigation, Air Conditioning, Chemical Industry, Construction, Environmental Engineering, Fiber Optic Co MMunication, Food And Beverage
  Pressure

  Class150/300/600/9001500/2500
• Color

  Silver
  Packing

  Plywood\wooden Pallets
• Coating

  Blank Paint

This EN1092 stainless 304 socket-weld flange enquiry lists PN6, 10, 25 and 40 references. Its FM title wording and FF table entry leave the actual sealing face unresolved. Confirm the face designation and selected sectional drawing before pairing the flange with a gasket or using the pressure labels for selection.

Resolve FM and FF against the mating face drawing

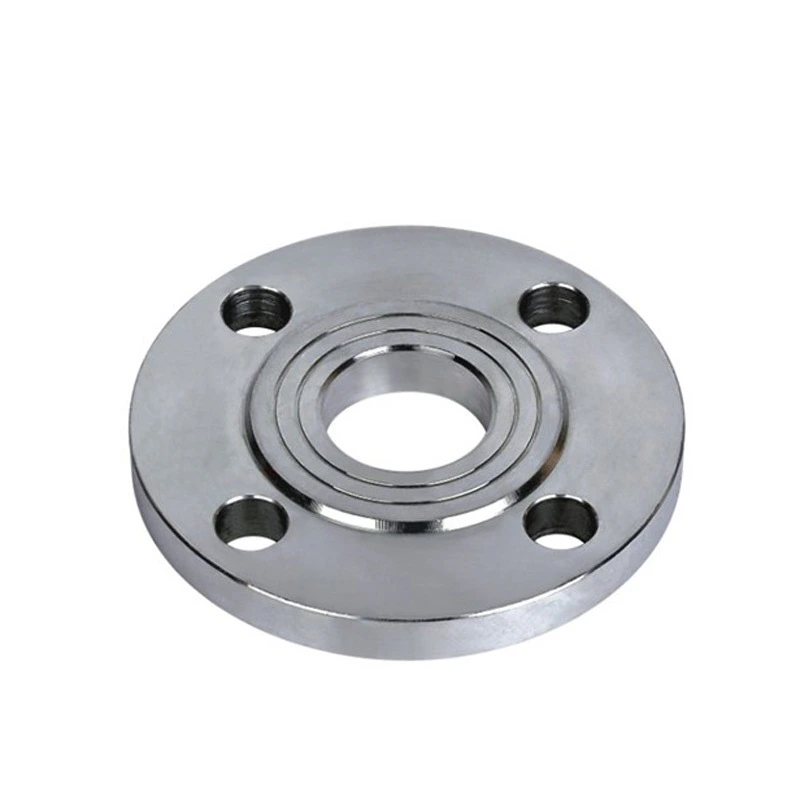

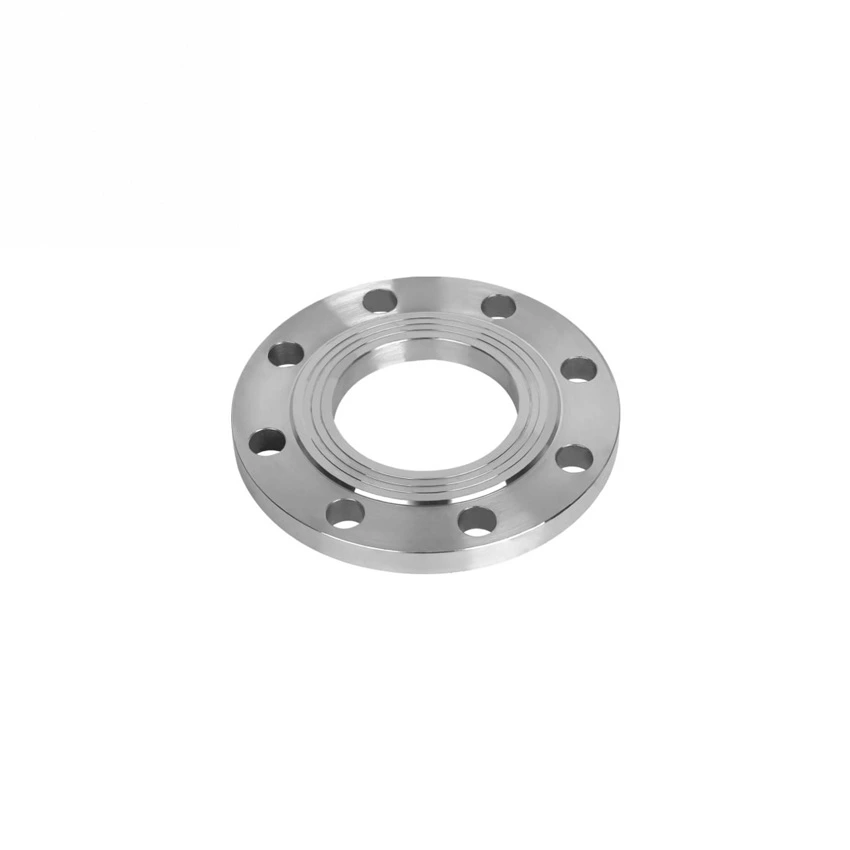

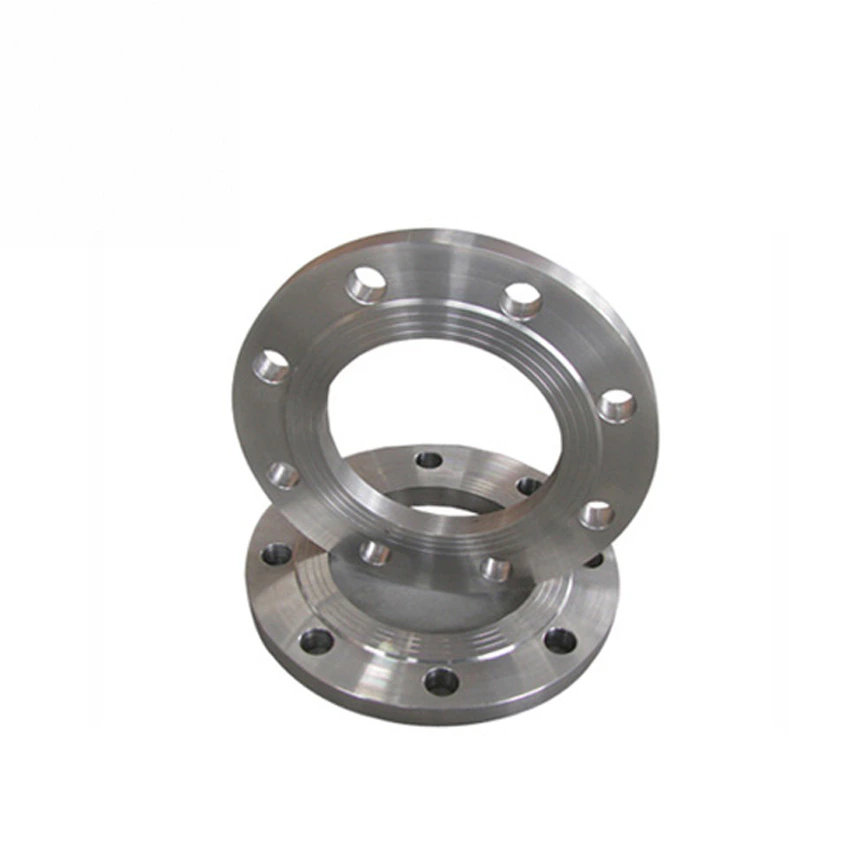

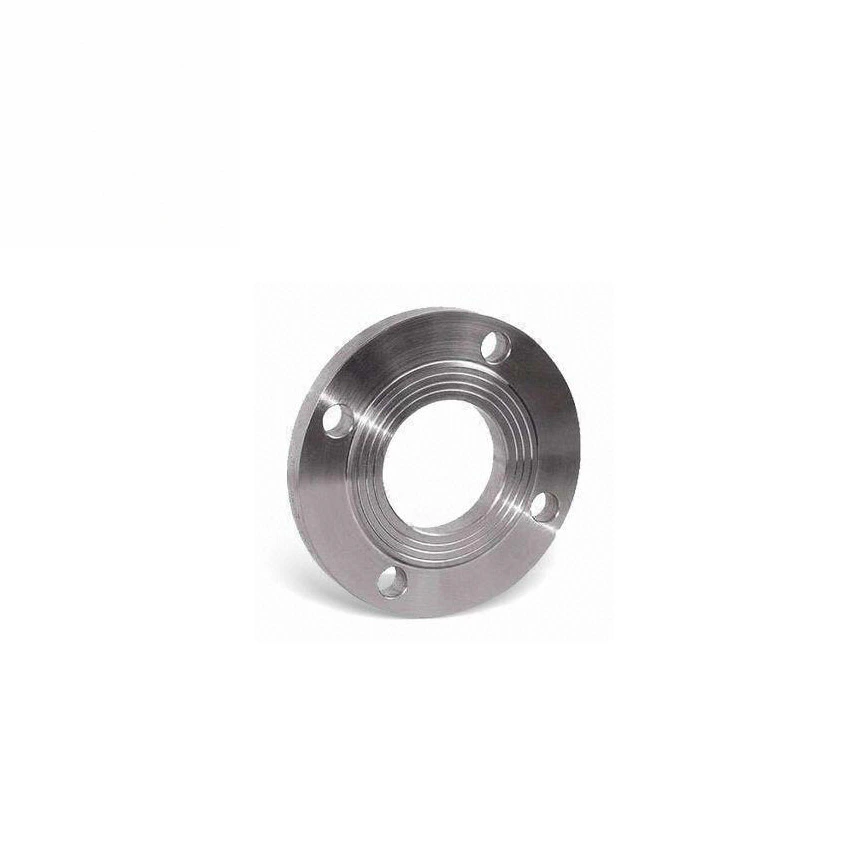

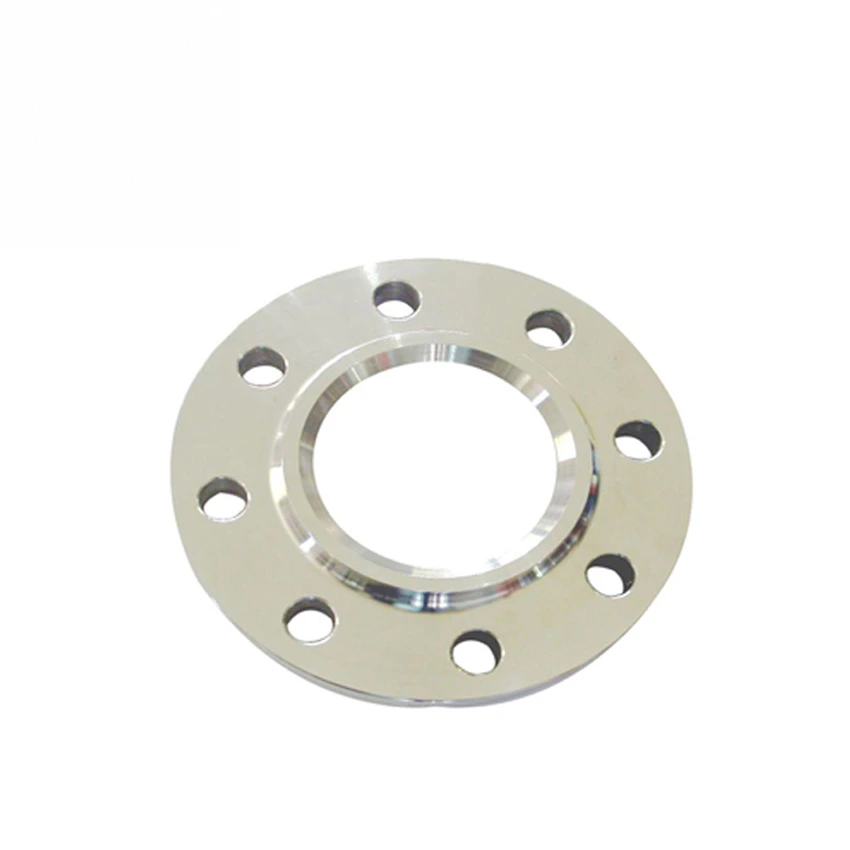

Ask what FM means for this offered flange and why the Surface Treatment field states FF. Do not expand the abbreviation or choose a face from photographs alone. Obtain the actual sealing profile, dimensions and finish, together with the intended mating flange and gasket arrangement. The gallery's machined annular details do not establish the selected face specification. Keep sealing selection conditional until the pair is documented.

Specify the socket section and one EN1092 rating

Confirm socket recess, engagement, bore, hub and welding detail against the actual adjoining pipe. Choose one nominal size and convention; the half-inch to twenty-four-inch option is not a selected dimension or demonstrated supply range. Request thickness, flange diameter, bolt circle and hole pattern. Identify the EN1092 part, edition and flange type, then establish one PN designation for the selected size and material. DIN ANSI JIS entries are not interchangeable documents, and the malformed class string needs clarification.

Document the stainless material and complete joint acceptance

Verify the requested 304 material through a full specification and traceable grade records; the broad stainless option does not establish it. Clarify actual finish and coating beyond Silver and Blank Paint. Agree gasket and bolting, socket welding and inspection with actual fluid, pressure, temperature, corrosion and mechanical loads. The listed industries, including food and beverage, do not demonstrate hygienic or service approval for this assembly.
