ANSI B16.9 A403 WP304L Stainless Steel Straight Pipe Tee

• warranty

  1 year
  customized support

  OEM, ODM, OBM
• model number

  tee 3698
  Technic

  Forged
• Connectivity

  Female
  shape

  Equal
• head code

  Square
  Overall Length

  4 in
• Height

  6
  Surface Treatment

  Painting
• Pressure

  Low Pressure
  System of Measurement

  inch
• Mounting hole diameter

  0.25 in
  Pipe Features

  underground rated, No additional Features, Uv Resistant, Chemical Resistant, Corrosion-resistant, Flexible
• Pipe Class

  150
  Application

  Agricultural Irrigation, Automotive Repair, Heating Systems, Construction Engineering, Power Industry
• Thread Types

  NPT

This ANSI B16.9 A403 WP304L stainless steel straight-tee enquiry focuses on a defined run and branch connection. Carbon steel alternatives are also selectable. Confirm the actual three-end layout and chosen material specification before accepting a selected tee.

Run, branch and equal-tee dimensional evidence

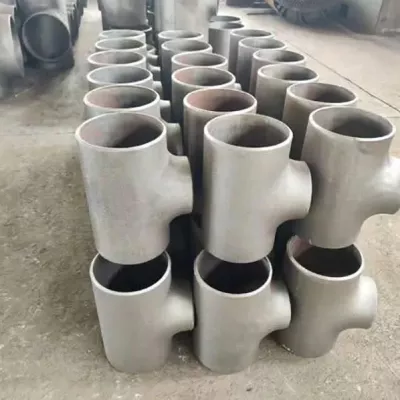

Specify all three nominal sizes, outside diameters, wall thicknesses and centre-to-end dimensions. Straight and Equal wording do not supply measured branch dimensions. Gallery examples include visibly smaller branches, so confirm the actual equal or reducing arrangement on the selected drawing rather than assigning it from appearance.

The labels 10 mm, 12 mm, 14 mm, 50 mm and 30 mm each need a complete run/branch map and installation clearance. The listed length of 4 inches, height of 6 without a unit and mounting-hole diameter of 0.25 inches are not established dimensions for every variant.

WP304L traceability and selected end preparation

Obtain the exact material specification, grade and certificate for the chosen item. A403 WP304L is the stainless enquiry reference and must not be assigned to carbon steel alternatives. Neither photo markings nor surface colour certify the title grade. Request the complete applicable B16.9 specification edition and relevant dimensional/material conformity evidence.

Confirm the actual joining design. Female and NPT labels need a complete thread designation and engagement if threaded ends are required. A welded request needs independently specified preparation, bevel and wall match. Forged and Painting entries require selected-item manufacturing and finish evidence; no seamless route is established.

Requirements for the complete branch connection

Provide the three-end drawing, selected material, connection details and piping duty. Class 150 and Low Pressure wording do not establish a fixed working pressure. State medium, pressure, temperature and exposure with inspection requirements. Underground, UV, chemical, corrosion and flexibility requirements need actual component evidence; application examples alone do not approve a particular installation.
