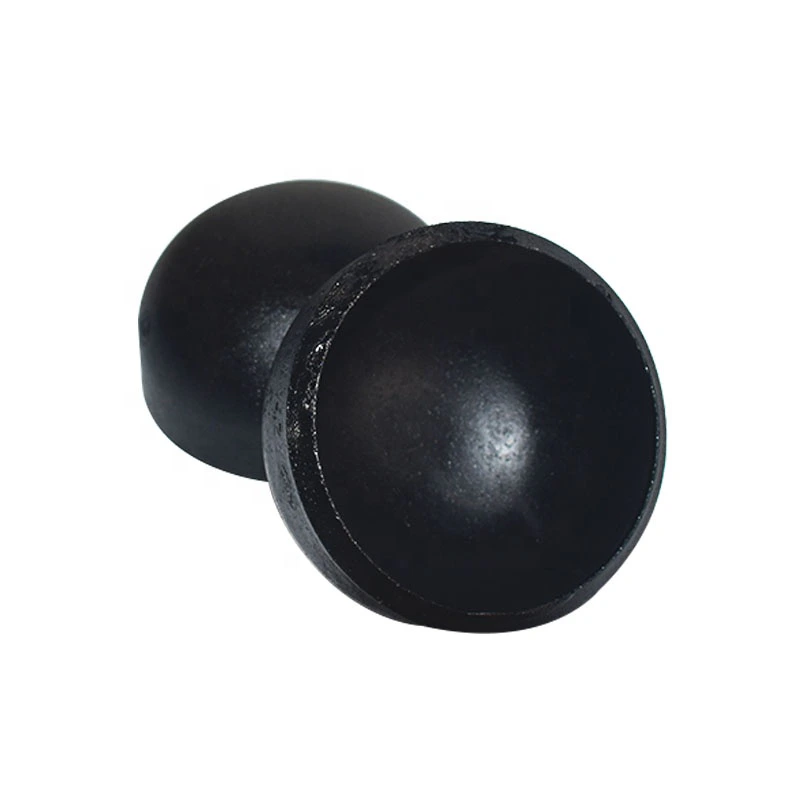

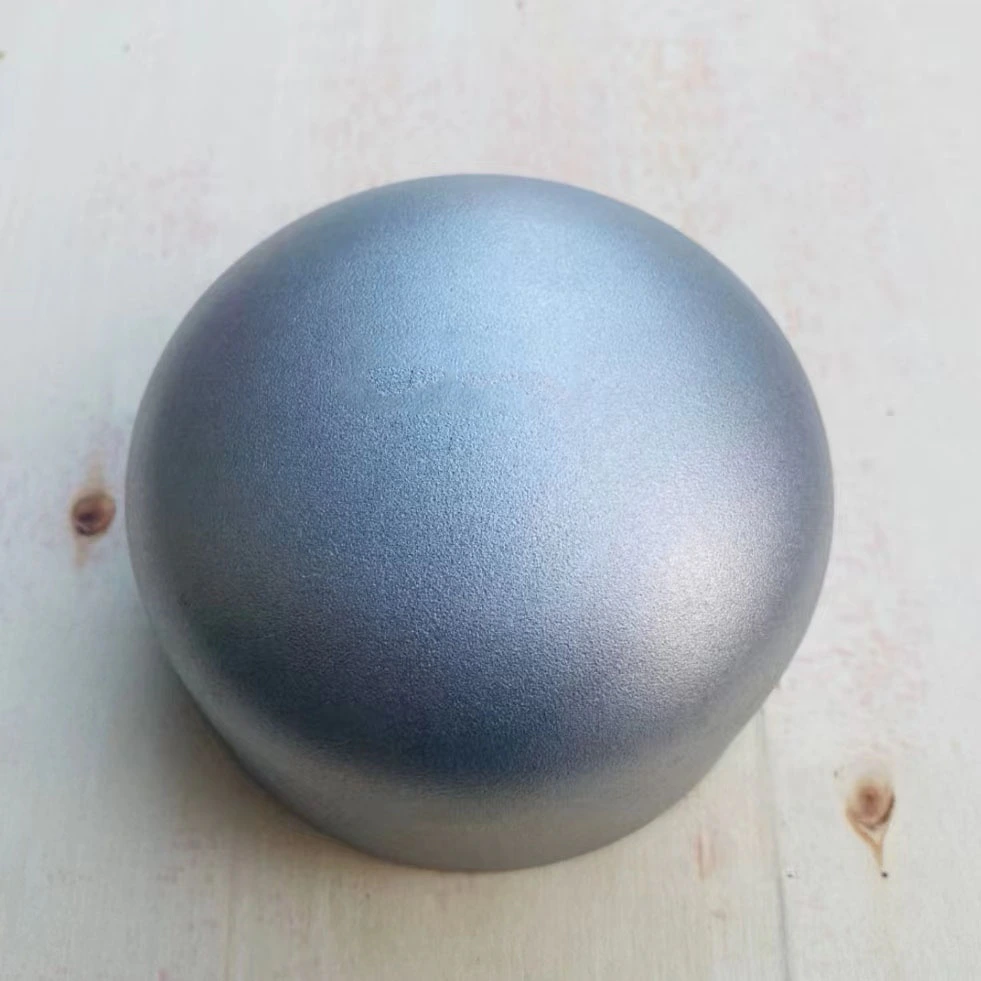

Pipe End Cap for Water Supply Systems
Para compras industriales
Prepare una RFQ más clara
Incluya estos datos para que RELIA comprenda la pieza y pueda acordar el siguiente paso.
- Plano, muestra o norma de referencia
- Calidad del material y proceso preferido
- Dimensiones, tolerancias y acabado superficial
- Aplicación, cantidad objetivo y destino
Los plazos de producción, el embalaje y el envío se confirman para cada proyecto tras acordar especificaciones y condiciones comerciales.
-
warranty1 Yearcustomized supportOEM, OBM, ODM
-
TechnicMachiningConnectivityFlange
-
shapeRoundhead codeHexagon
-
Overall Length4 inSurface TreatmentPainting
-
PressureLow PressureSystem of Measurementinch
-
Mounting hole diameter0.25 inPipe FeaturesFlexible, Corrosion-resistant, No additional Features, Uv Resistant, Chemical Resistant, underground rated
-
Pipe Class150ApplicationAgricultural Irrigation, Automotive Repair, Heating Systems, Power Industry, Construction Engineering, Shipbuilding, petrochemical industry, Metallurgical Industry, home appliance installation, building water supply and drainage, fire protection systems, oil & gas industry, electrical wiring protection, shipbuilding & marine engineering
This pipe end cap is listed for water supply systems, with threaded flange and corrosion-resistant wording in the title. Its material records disagree: the title describes stainless steel, while the only variant specifies carbon steel. Confirm the supplied material before treating either description as the selected specification.
Resolve material and the intended cap connection
The title names stainless steel with 304/316 alternatives, but the actual variant is Cap / 10 mm / Carbon Steel. Request a material certificate and a consistent selected configuration. Neither stainless grade nor carbon steel should be assumed for the supplied item from this conflicting record.
The table identifies Flange connectivity without thread details. Obtain a drawing explaining the threaded flange arrangement, applicable thread specification, mating interface, face, drilling and joining requirements. Confirm the meaning of 10 mm and the required nominal size, wall and dimensional tolerances.
Allocate the table geometry and painted condition
Four-inch overall length and quarter-inch mounting-hole diameter are recorded with round shape, hexagon head and inch measurement system. Assign relevant entries to the selected drawing instead of using them as pipe size. The machining entry also needs manufacturing and inspection records for the resolved construction.
Painting does not identify a coating system. Agree surface preparation, coating type, thickness and acceptance, then obtain evidence relevant to corrosion, chemical or UV exposure. Flexible and underground labels likewise require application-specific verification; the broad feature list does not establish performance by itself.
Set water-service conditions and acceptance evidence
Specify water chemistry, potable-water requirements where relevant, pressure, temperature, cycling and external exposure. Request selected material, coating, joint and rating evidence for those conditions. Low Pressure and Class 150 are source labels rather than numerical operating limits; include project testing, traceability and documentary acceptance in the enquiry.
Información técnica para cada consulta
Prepare los requisitos antes de confirmar el producto.
La página es el punto de partida. Planos, muestras, interfaces, materiales, cantidades y criterios de aceptación se revisan antes de confirmar stock o fabricación.
Comente este producto en el contexto de su proyecto.
Comparta plano, muestra, referencia, cantidad y aplicación. Los puntos desconocidos pueden quedar abiertos para revisión.
