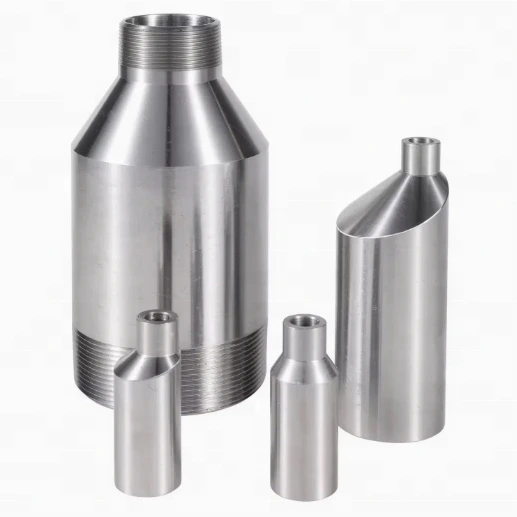

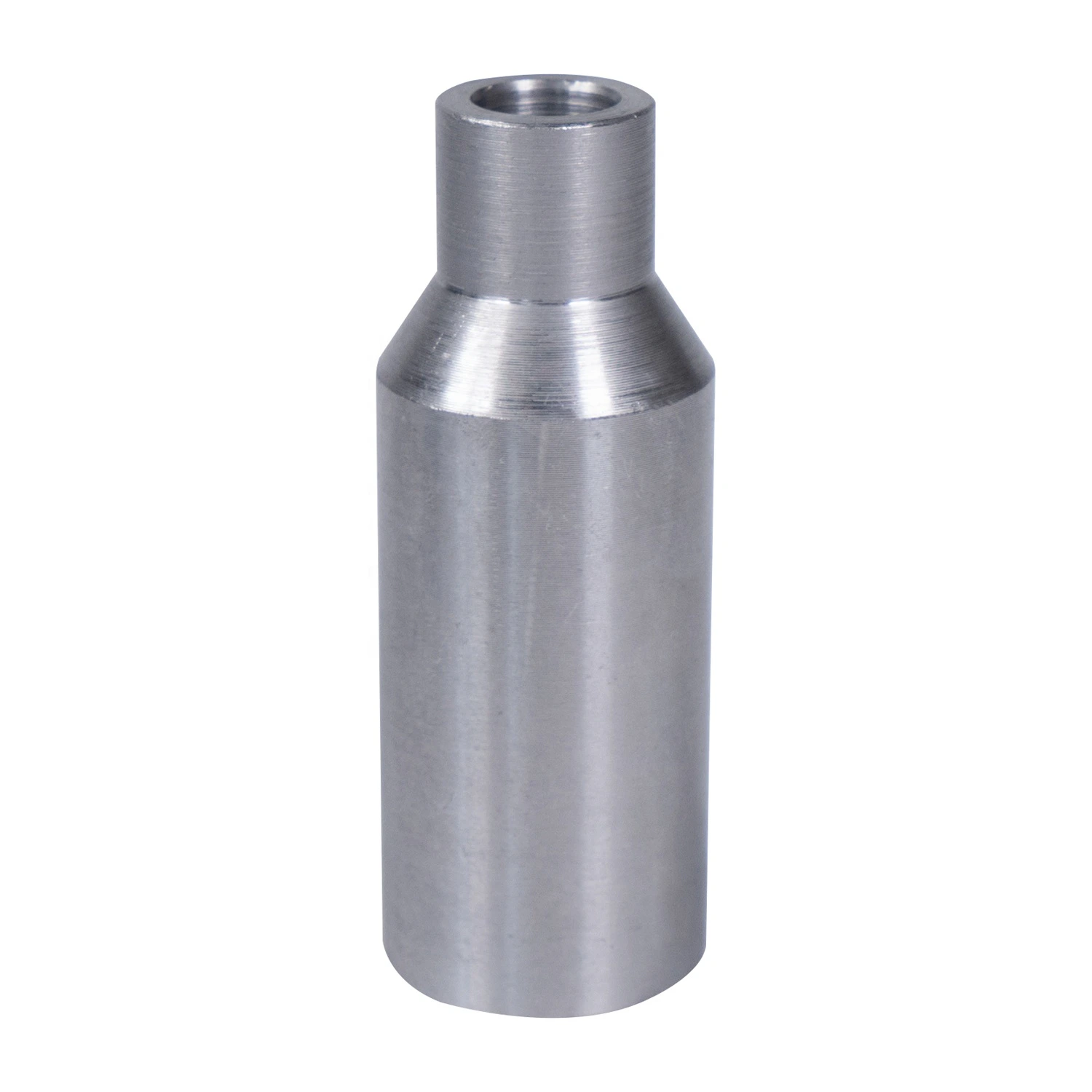

TP316L Stainless Steel Concentric Swage Nipple

• warranty

  1 Year
  customized support

  OEM
• Technic

  Polished
  Connectivity

  Socket Weld
• shape

  Round
  head code

  90 Degree
• Overall Length

  2 in
  Surface Treatment

  Smooth
• Pressure

  High Pressure
  System of Measurement

  inch
• Mounting hole diameter

  0.25 in
  Pipe Features

  Flexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features, underground rated
• Pipe Class

  3000#
  Application

  Agricultural Irrigation, Automotive Repair, Heating Systems, Power Industry, Construction Engineering, Shipbuilding, petrochemical industry
• Thread Types

  NPT

This TP316L stainless steel concentric swage nipple is listed for oil-industry enquiries with an A312 material reference. The actual variant is 20NB stainless steel. Confirm the selected geometry, material records and end arrangement before assigning the component to an oil or chemical duty.

Define the concentric transition and both nominal ends

Provide a drawing identifying both end sizes, axis relationship, transition, wall thickness and tolerances. Clarify the concentric title against the 90-degree table code rather than assuming that code defines the actual nipple. Round does not establish equal ends or a complete transition geometry.

State the nominal sizing convention behind 20NB and allocate the listed 2 in length and 0.25 in hole to actual features. Confirm the envelope, installation orientation and selected availability. A single nominal label does not identify both sides of a swage nipple.

Verify TP316L supply and the actual end schedule

Specify the complete selected material designation, condition and governing document with its edition. Confirm the requirements and conformity scope associated with A312 for the ordered component, supported by traceability and material certificates. The title reference alone does not establish the complete supply package.

Obtain actual production and inspection records; Polished is finish wording rather than proof of manufacture. Resolve Socket Weld and NPT into an end schedule covering preparation, any full thread designation, mating parts, sealing and examination. Agree measurable Polished and Smooth criteria and delivery protection.

Qualify the oil composition and operating envelope

Identify actual oil composition, pressure and temperature, cycling, chemical exposure and mechanical loads. Establish the Class 3000 basis for the selected material without treating the class number as operating pressure. Require relevant corrosion, chemical or other claimed performance evidence and clarify any buried use. Document material/joint acceptance with the resolved drawing, interfaces, finish and testing requirements.
