A234 WPB Carbon Steel Tee for Pipelines

• warranty

  1 Year
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Equal
  head code

  Hexagon
• Overall Length

  Customized Size
  Height

  Customized Size
• Surface Treatment

  Painting
  Pressure

  High Pressure
• System of Measurement

  Metric
  Mounting hole diameter

  Customized Size
• Pipe Features

  Other
  Pipe Class

  Other
• Application

  Other
  Thread Types

  Customized Size

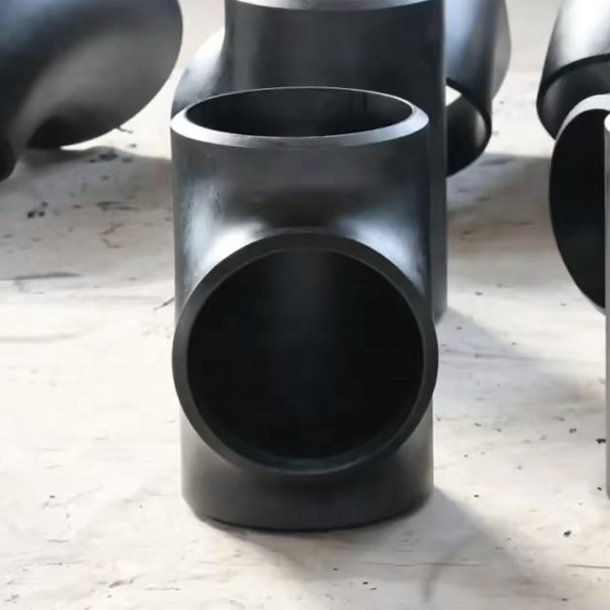

This pipeline listing describes a painted carbon steel tee with A234 WPB and ASME B16.9 references. Its original image supports a tee form, while the selectable types are labeled Reducer. Confirm the proposed tee and its relationship to the actual order option before agreeing dimensions and inspection requirements.

Confirm the selected tee and branch drawing

Provide run and branch sizes, outside diameters, wall requirements, center-to-end dimensions and actual end preparation. Equal wording does not supply those measurements. The image supports shape only and should not be used to assign precise dimensions, a material grade or the supplied coating.

The shared 1/2–110 inch option is broad listing information rather than a selected tee size. Customized Size and Metric entries also require an approved drawing with agreed units. Clarify Hexagon wording and confirm exact availability for the component described by the purchase specification.

Request WPB, production and painting evidence

Obtain material designation, condition and traceability records supporting A234 WPB, with the applicable specification editions. Carbon Steel and a234wpb labels do not replace actual certificates. Agree production inspections supporting the Forged and Seamless references and confirm the selected ASME B16.9 component scope.

Define paint chemistry, covered areas, relevant thickness and inspection criteria. Painting and a dark visual surface do not establish those requirements or coating performance. Connect the actual surface acceptance and preservation package with the approved drawing and required documentation.

Establish the pipeline operating envelope

Describe the medium, contaminants, pressure, temperature, cycles, transients and loads. High Pressure and Other class provide no numerical allowable rating. Assess the actual tee and joint under the pipeline requirements, then confirm material, dimensional, end and paint records, marking, preservation and delivery. Agree OEM requests and warranty terms separately.
