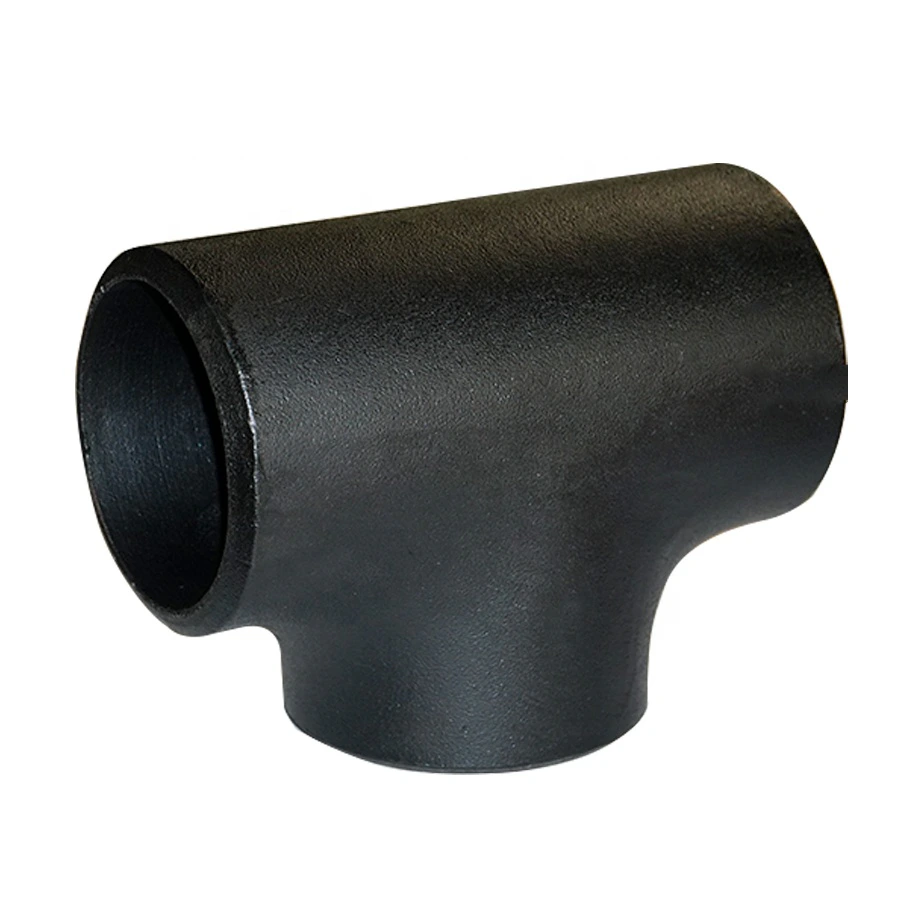

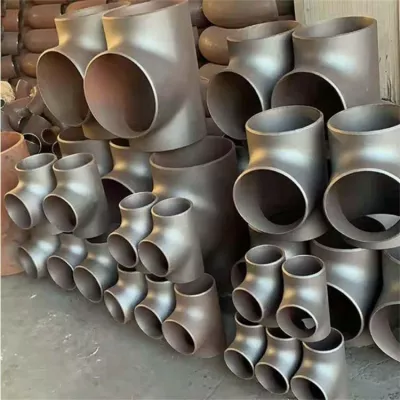

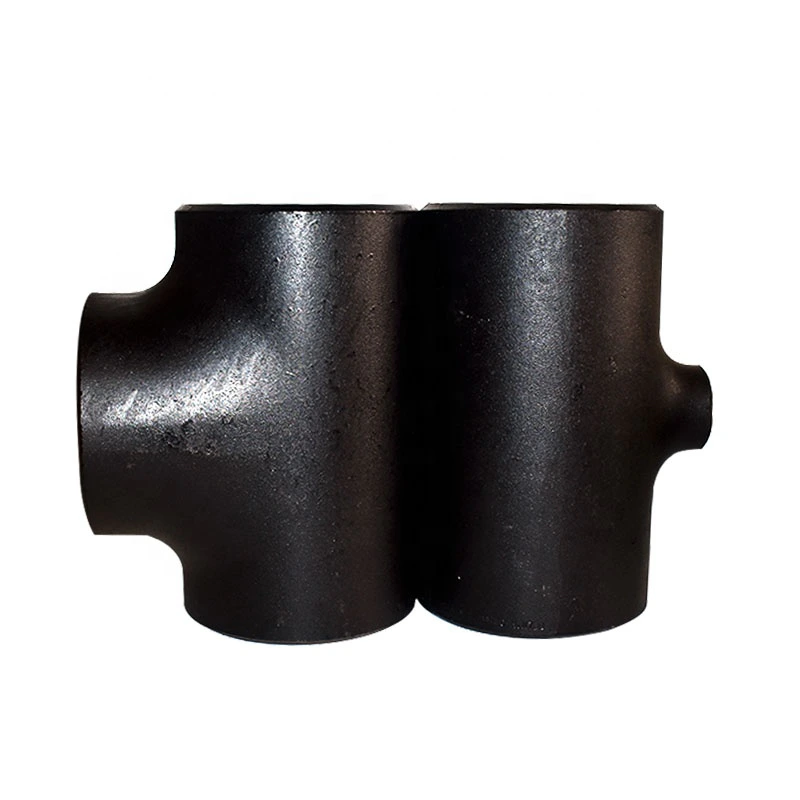

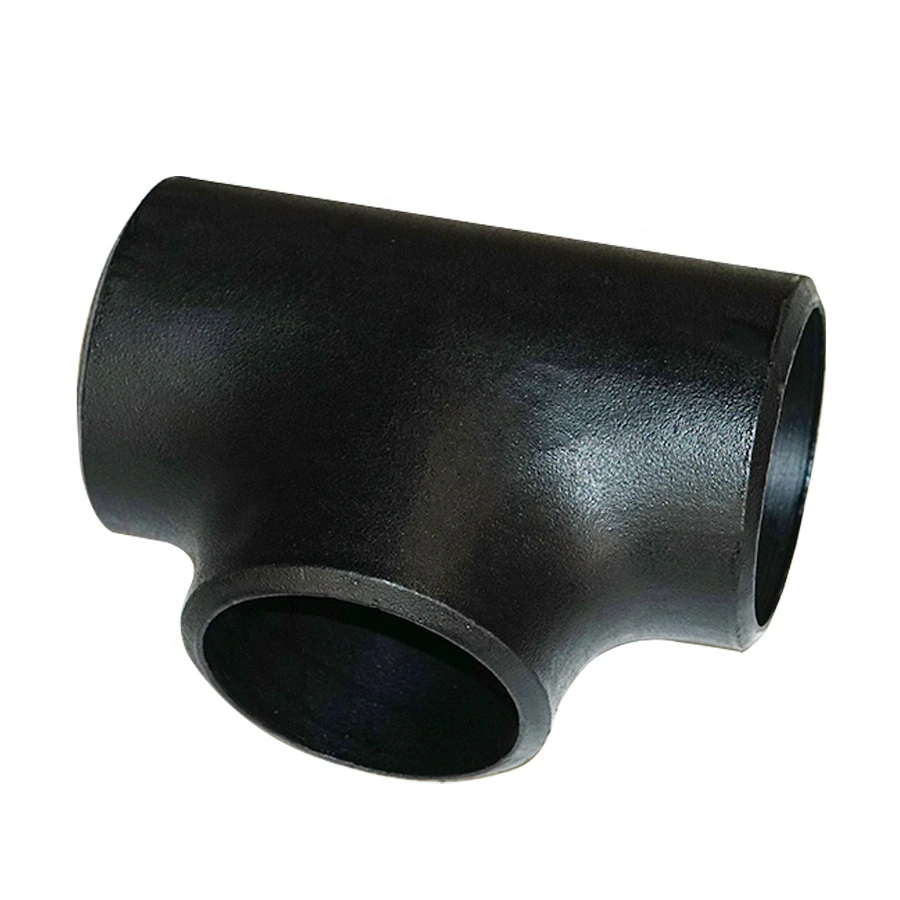

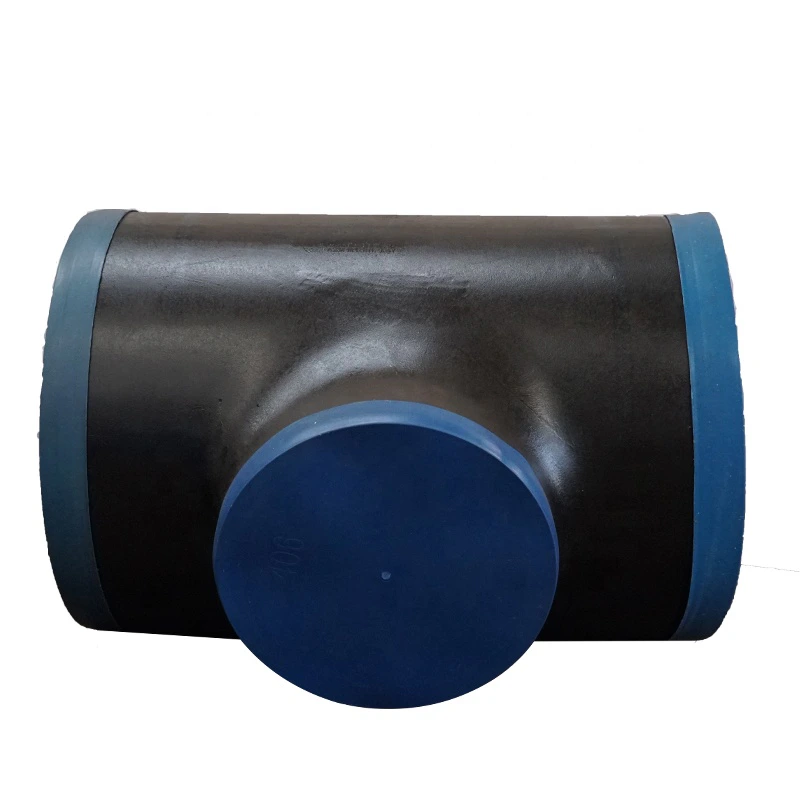

ASME B16.9 A234 WPB Carbon Steel Equal Tee
للتوريد الصناعي
جهّز RFQ أكثر وضوحًا
أدرج المعلومات التالية كي تفهم RELIA القطعة وتناقش معك الخطوة التالية.
- رسم أو عينة أو معيار مرجعي
- درجة المادة والعملية المفضلة
- الأبعاد والتفاوتات وتشطيب السطح
- الاستخدام والكمية والوجهة
يتم تأكيد مدة الإنتاج والتعبئة وشروط الشحن لكل مشروع بعد الاتفاق على المواصفات والشروط التجارية.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
model numbertee 4023TechnicForged
-
ConnectivityWeldingshapeEqual
-
head codeHexagonSurface TreatmentPainting
-
Mounting hole diameter0.25 inPipe Class150
An equal pipe tee provides a branch connection from a through run. This enquiry centres on the ASME B16.9 and ASTM A234 WPB carbon-steel requirements named in the title, with welding identified as the intended connection. Specify the three-end geometry and exact material needed for your project so the proposed fitting can be checked against the mating pipes.
Define each end of the branch connection
Give the run size and branch size separately, even when an equal arrangement is required. Explain whether the listed millimetre size refers to nominal size, outside diameter or another measurement. A dimensional drawing should identify the pipe interfaces, wall thickness or schedule, overall fitting envelope and weld-end preparation. Check these details together with branch position and installation space before accepting a model for the layout.
Select the material and standard scope
For an A234 WPB requirement, identify the exact carbon-steel grade and applicable specification edition, then request records traceable to the selected fitting. Alternative stainless-steel option labels require their own grade specification and assessment. Define the B16.9 edition and dimensional acceptance criteria, and confirm the manufacturing and inspection requirements for the item offered. Surface appearance alone cannot establish a forming process, material grade or standard conformity.
Relate the tee to operating conditions
Provide the fluid, operating pressure and temperature alongside the required welding and inspection arrangements. The isolated Pipe Class field does not establish an allowable operating pressure for the selected material, wall and joint. Likewise, generic head-code and mounting-hole fields cannot substitute for a tee drawing. A useful enquiry therefore combines a dimensioned branch layout with grade records, wall and end details, and the evidence needed to assess the complete connection under its intended duty.
معلومات فنية لكل استفسار عن منتج
جهّز المتطلبات قبل التأكيد النهائي للمنتج.
صفحة المنتج هي نقطة البداية. تتم مراجعة الرسوم والعينات والواجهات والمواد والكميات ومتطلبات القبول قبل تأكيد المخزون أو الإنتاج المخصص.
ناقش هذا المنتج في سياق مشروعك.
شارك الرسم والعينة والمرجع والكمية ومعلومات التطبيق. يمكن ترك البنود غير المعروفة مفتوحة للمراجعة.
