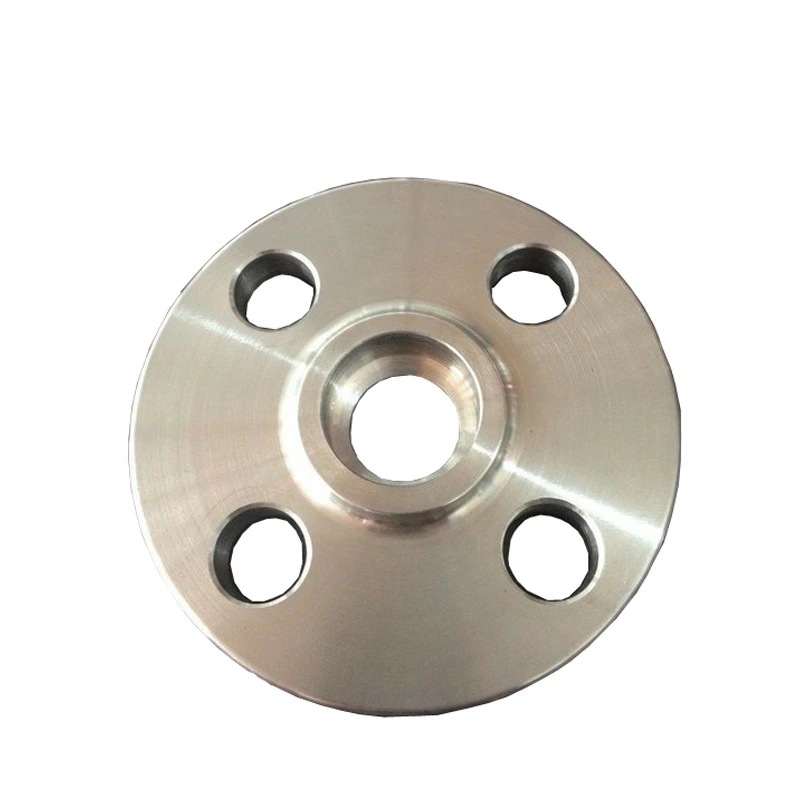

Forged Slip-On Flange for Industrial Piping
Para sourcing industrial
Prepare uma RFQ mais clara
Inclua os dados abaixo para que a RELIA entenda a peça e alinhe o próximo passo com você.
- Desenho, amostra ou norma de referência
- Classe do material e processo preferido
- Dimensões, tolerâncias e acabamento superficial
- Aplicação, quantidade-alvo e destino
Prazo de produção, embalagem e condições de envio são confirmados por projeto após o acordo de especificações e termos comerciais.
-
Surface TreatmentPolishedmodel number4056
-
ApplicationIndustrial EquipmentBolt Hole Diameter1/2"
-
Bolt Hole Quantity4
Choose a governing specification for this polished forged alloy slip-on industrial-flange enquiry. B16.5, DIN, EN1092-2 and GOST appear as title references; they do not independently establish simultaneous conformity or interchangeability. Record the required document, edition, relevant part and acceptance basis before matching connected equipment.
Fix the material and construction for one quotation
The actual catalogue offers thirty-six combinations across four materials and nine flange types. Identify the intended Alloy Steel and Slip On Flange combination, then specify complete alloy designation, grade, condition and traceability. Other material/type options need their own accepted requirements.
One shared half-inch-to120-inch label does not establish supply at every size or coverage by every referenced document. Confirm the individual nominal size and availability. Obtain manufacturing and inspection records for the actual forged requirement; reference appearance cannot certify grade or production.
Resolve bolting through the governing drawing

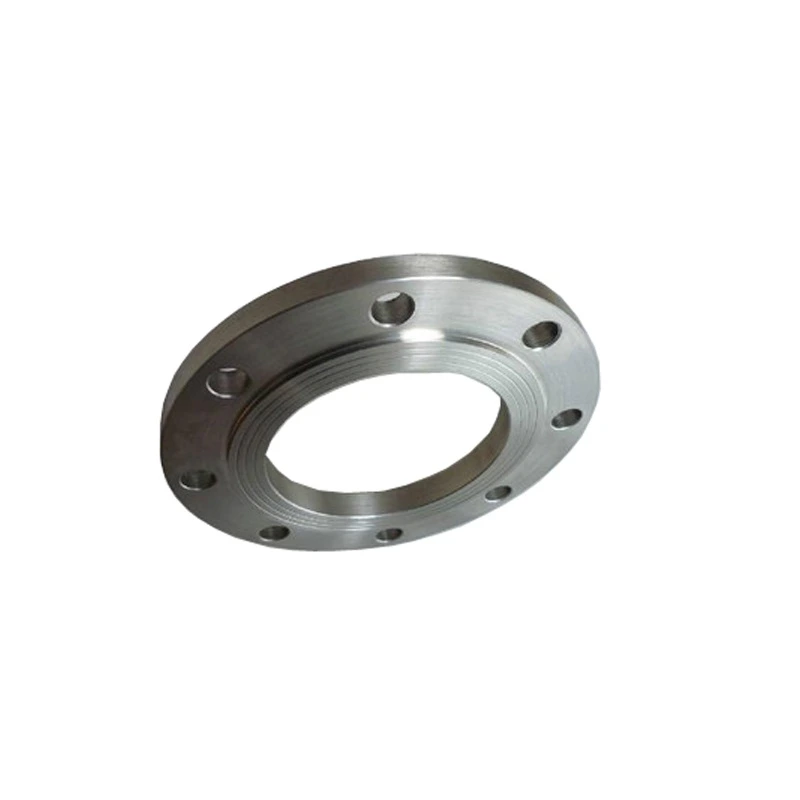

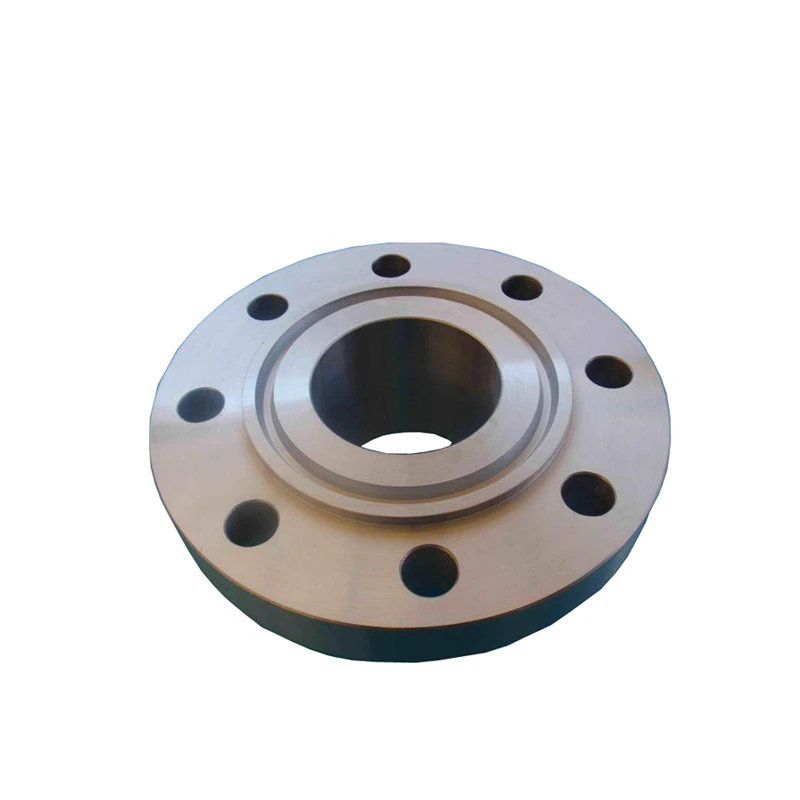

The table lists four half-inch bolt holes, while the images show different reference forms. Confirm the actual supplied hole count, diameter and bolt-circle dimensions rather than assigning generic entries to every variant. Include bore/pipe fit, outside diameter, thickness, hub dimensions where relevant, facing dimensions and tolerances.
Establish mating-flange compatibility under the accepted specification. Agree polished surfaces and finish/inspection criteria without assuming corrosion resistance or hygiene approval. Define gasket, fasteners, slip-on attachment preparation, alignment and installation inspection for the actual joint.
Set class and duty for industrial equipment
Model4056 is a listing reference; no numerical pressure class is recorded. Supply medium, pressure, temperature, cycling and external loads, together with the required joint acceptance. Agree material/manufacturing/dimensional and joint inspections, marking/traceability, confirmed size availability, documentation and quotation scope before releasing the component.
Informações técnicas para cada consulta
Prepare os requisitos antes da confirmação final do produto.
A página é o ponto de partida. Desenhos, amostras, interfaces, materiais, quantidades e aceitação são avaliados antes de confirmar estoque ou produção.
Discuta este produto no contexto do seu projeto.
Compartilhe desenho, amostra, referência, quantidade e aplicação. Pontos desconhecidos podem ficar em aberto.
