Stainless Steel ASTM A234 SCH40/SCH80 Forged Welded Pipe Fittings, Reducer Enquiry
Para sourcing industrial
Prepare uma RFQ mais clara
Inclua os dados abaixo para que a RELIA entenda a peça e alinhe o próximo passo com você.
- Desenho, amostra ou norma de referência
- Classe do material e processo preferido
- Dimensões, tolerâncias e acabamento superficial
- Aplicação, quantidade-alvo e destino
Prazo de produção, embalagem e condições de envio são confirmados por projeto após o acordo de especificações e termos comerciais.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.26 in
-
Pipe Class150SizeCustomized Size
-
Product nameElbow
This stainless steel ASTM A234 SCH40/SCH80 forged welded pipe-fitting enquiry needs a selected component and wall drawing before acceptance. Establish the delivered subtype and geometry rather than assigning the title's 90-degree naming to every actual reducer choice.
Choose a component and measured wall
Fifteen actual reducer variants cover 10 mm, 12 mm, 14 mm, 50 mm and 30 mm with Stainless Steel, Alloy or Carbon Steel. Select one existing combination and define the size's measurement basis. A single label does not identify both ends of a transition.
Request the supplied subtype, end diameters, bores, wall thicknesses, overall length, transition or bend profile and tolerances. If a bend is required, specify angle and radius explicitly. Choose the applicable schedule on the accepted size-specific drawing; SCH40 and SCH80 naming does not create actual schedule variants or establish measured wall.
Accept material scope and body manufacture
Confirm the applicable scope of A234 for the selected material, together with the grade, product form, condition and traceable inspection records. Stainless Steel, Alloy and Carbon Steel are distinct alternatives. Stainless naming cannot establish a grade or apply one specification to every option.

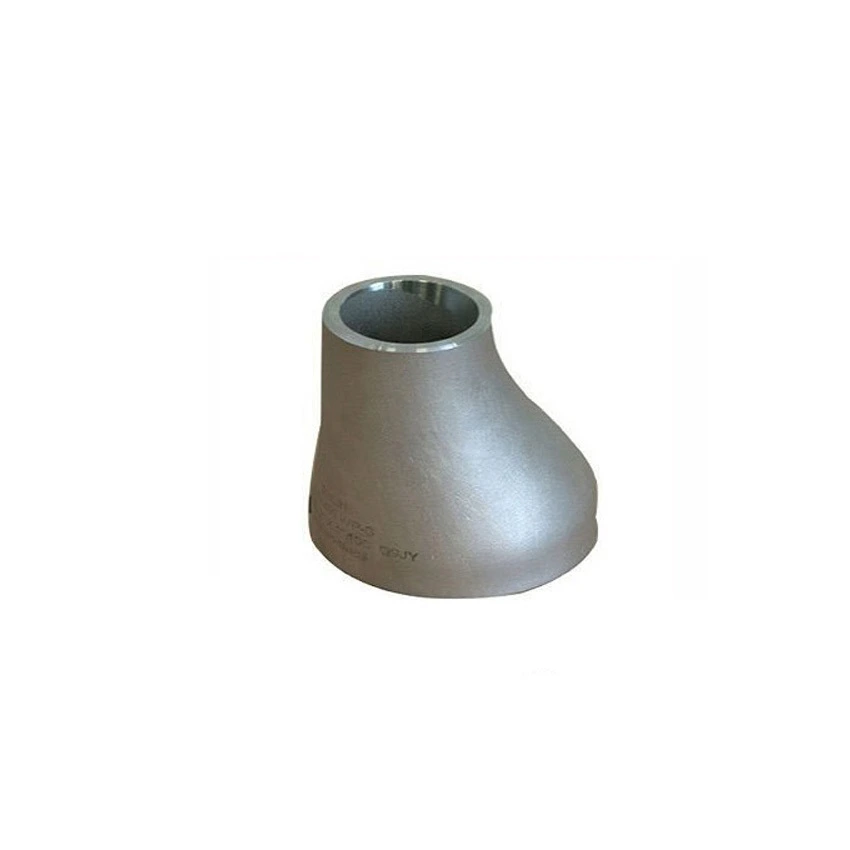

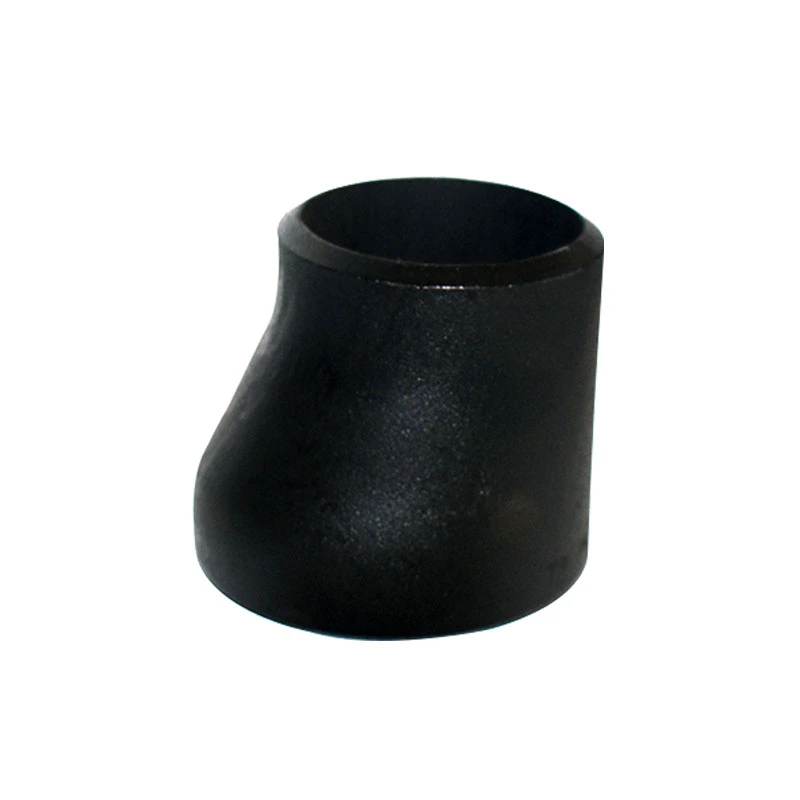

Welded wording needs clarification of the actual body manufacturing route separately from installation welding. Forged naming requires production evidence. The two viewed reducer references, including an offset-looking form, cannot certify supplied angle, alignment, schedule, material or process.
Review delivered ends and Class 150 service
Confirm end preparation and fit to the mating pipe diameters and walls. Hexagon wording and the mounting-hole entry do not provide complete end geometry. Painting requires coating, surface preparation and inspection acceptance rather than a conclusion based on dark appearance.
Class 150 needs the applicable component standard and material-temperature operating basis. State medium composition, pressure, temperature, cycling, flow and external loads. Review the selected subtype and full end/wall drawing alongside material/manufacturing and coating records before accepting the complete joint for service.
Informações técnicas para cada consulta
Prepare os requisitos antes da confirmação final do produto.
A página é o ponto de partida. Desenhos, amostras, interfaces, materiais, quantidades e aceitação são avaliados antes de confirmar estoque ou produção.
Discuta este produto no contexto do seu projeto.
Compartilhe desenho, amostra, referência, quantidade e aplicação. Pontos desconhecidos podem ficar em aberto.
