Galvanized Carbon Steel Tee for Irrigation Pipelines
Para sourcing industrial
Prepare uma RFQ mais clara
Inclua os dados abaixo para que a RELIA entenda a peça e alinhe o próximo passo com você.
- Desenho, amostra ou norma de referência
- Classe do material e processo preferido
- Dimensões, tolerâncias e acabamento superficial
- Aplicação, quantidade-alvo e destino
Prazo de produção, embalagem e condições de envio são confirmados por projeto após o acordo de especificações e termos comerciais.
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPaintingPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesOtherPipe ClassOther
-
ApplicationOtherThread TypesCustomized Size
This galvanized carbon steel tee listing targets agricultural irrigation and water pipelines with an ASTM reference. The table records Painting and the selectable type reads Reducer. Confirm the actual fitting and surface package before accepting a galvanized configuration or selecting a component from the broad size range.
Clarify zinc treatment and any separate paint scope
The Galvanized title and Painting entry do not establish the treatment supplied on each surface. Request the actual zinc-process specification, covered areas, thickness and inspection acceptance, together with any separate painting requirements. Do not assume the two entries describe one combined treatment or a complete protective system.

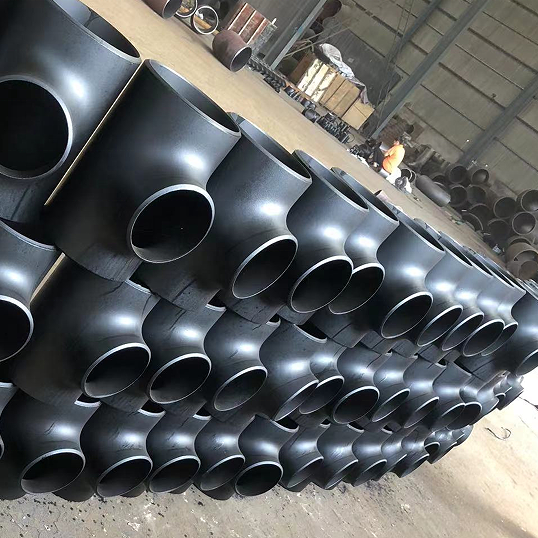

The original image shows dark tee forms but cannot identify zinc coverage, paint chemistry or corrosion performance. Define the internal water and external exposure requirements for the installation. Agree actual coating documentation, surface inspection, handling and preservation rather than accepting protection based on appearance or a general surface label.
Confirm ASTM scope and the ordered tee drawing
Identify the ASTM number, edition and component or material requirements for the project. Request actual grade, condition, traceability and conformity records; Carbon Steel and a234wpb options are not certificates. Obtain production evidence supporting Forged and clarify Welded connection versus construction for the selected supply.
Provide run and branch sizes, bore, diameters, wall, center-to-end and welding end details with tolerances. Confirm Equal geometry and the selected option mapping. Hexagon, Customized Size and Metric fields do not provide measured values, so agree explicit units and dimensional inspection criteria on the approved drawing.
Define irrigation water operating acceptance
State water composition, treatment chemicals, contaminants, solids, pressure, temperature, cycles, transients and loads. High Pressure and Other class leave numerical allowable limits unspecified. Assess the confirmed material, geometry, joint and surface package against the actual duty, then agree material and end inspections, zinc or paint records, marking and delivery.
