Carbon Steel A234 WPB Straight/Reducing Butt-Weld Tee Enquiry
Para sourcing industrial
Prepare uma RFQ mais clara
Inclua os dados abaixo para que a RELIA entenda a peça e alinhe o próximo passo com você.
- Desenho, amostra ou norma de referência
- Classe do material e processo preferido
- Dimensões, tolerâncias e acabamento superficial
- Aplicação, quantidade-alvo e destino
Prazo de produção, embalagem e condições de envio são confirmados por projeto após o acordo de especificações e termos comerciais.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
model numbertee 6046TechnicCasting
-
Connectivitymale femaleshapeEqual
-
head codeRoundOverall Length4 in
-
Height20cmSurface TreatmentPainting
-
PressureHigh PressureSystem of Measurementinch
-
Mounting hole diameter0.2 inPipe FeaturesFlexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features, underground rated
-
Pipe Class1000Applicationpetrochemical industry, Shipbuilding, Construction Engineering, Industry
-
Thread TypesNPTMaterialStainless Steel 304/316;carbon steel
-
Size1/2' ~ 4'ColorBlack
-
StandardASTMTypeButt Welded
-
CertificationISO 9001PackingCarton
-
Working Pressure1.0-1.6Mpa (10-25bar)

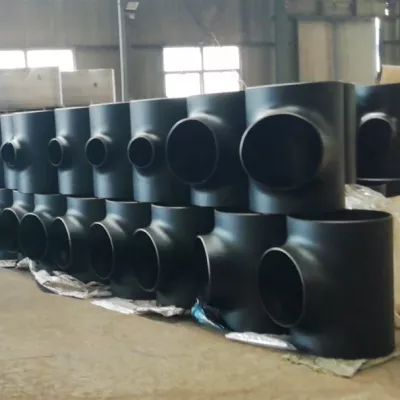

This pipe tee page supports enquiries for an A234 WPB carbon steel butt-weld configuration with straight or reducing geometry. Establish the required pressure and temperature conditions early, then link them to the exact material, wall and branch arrangement. The fitting family alone does not establish a usable service rating.
Request one clearly defined pressure qualification
Provide the design pressure with an explicit unit and the associated design temperature. Ask for the pressure-temperature specification that applies to the tee being considered, including its material grade and wall. A working-pressure label or class number without those conditions is insufficient for selection. Keep operating conditions and any required test conditions clearly identified so that a single figure is not used for different purposes.
Describe the complete run and branch arrangement
Show both run ends and the branch on a drawing. Give their diameters, walls and connection forms separately, and identify whether the required branch is equal or reduced. Define weld preparation at each intended butt-weld connection and clarify any different end requirement. The tee drawing should establish the actual geometry rather than relying on the general appearance of a product photograph.
Tie WPB and construction to the selected tee
State the exact A234 WPB carbon steel requirement and ask for its material documentation. If seamless manufacture is required, include that condition explicitly and obtain confirmation for the same fitting. Stainless Steel and Alloy choices require their own grade specifications and cannot automatically inherit the carbon steel requirement. Provide the service medium and relevant dimensional standard when requesting suitability confirmation. Final selection should follow review of the drawing, material, construction and pressure-temperature evidence for the complete tee configuration.
Informações técnicas para cada consulta
Prepare os requisitos antes da confirmação final do produto.
A página é o ponto de partida. Desenhos, amostras, interfaces, materiais, quantidades e aceitação são avaliados antes de confirmar estoque ou produção.
Discuta este produto no contexto do seu projeto.
Compartilhe desenho, amostra, referência, quantidade e aplicação. Pontos desconhecidos podem ficar em aberto.
