A403 WP316L SCH40 Low-Pressure Casting 90-Degree LR Stainless Steel Elbow Enquiry

• warranty

  1 Year
  customized support

  OEM, odm
• Technic

  CASTING
  Connectivity

  Female
• shape

  Reducing
  head code

  Other
• Overall Length

  4 in
  Height

  4
• Surface Treatment

  Other
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  0.25 in
• Pipe Features

  Flexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features
  Pipe Class

  150
• Application

  Other
  Thread Types

  NPT

This A403 WP316L SCH40 90-degree long-radius elbow enquiry needs an agreed supplied-material specification before purchase. The actual choice is Elbow / 10 mm / Carbon Steel. Select the required component and obtain its material documentation before accepting the title's stainless or grade references.

Resolve material and resistance requirements

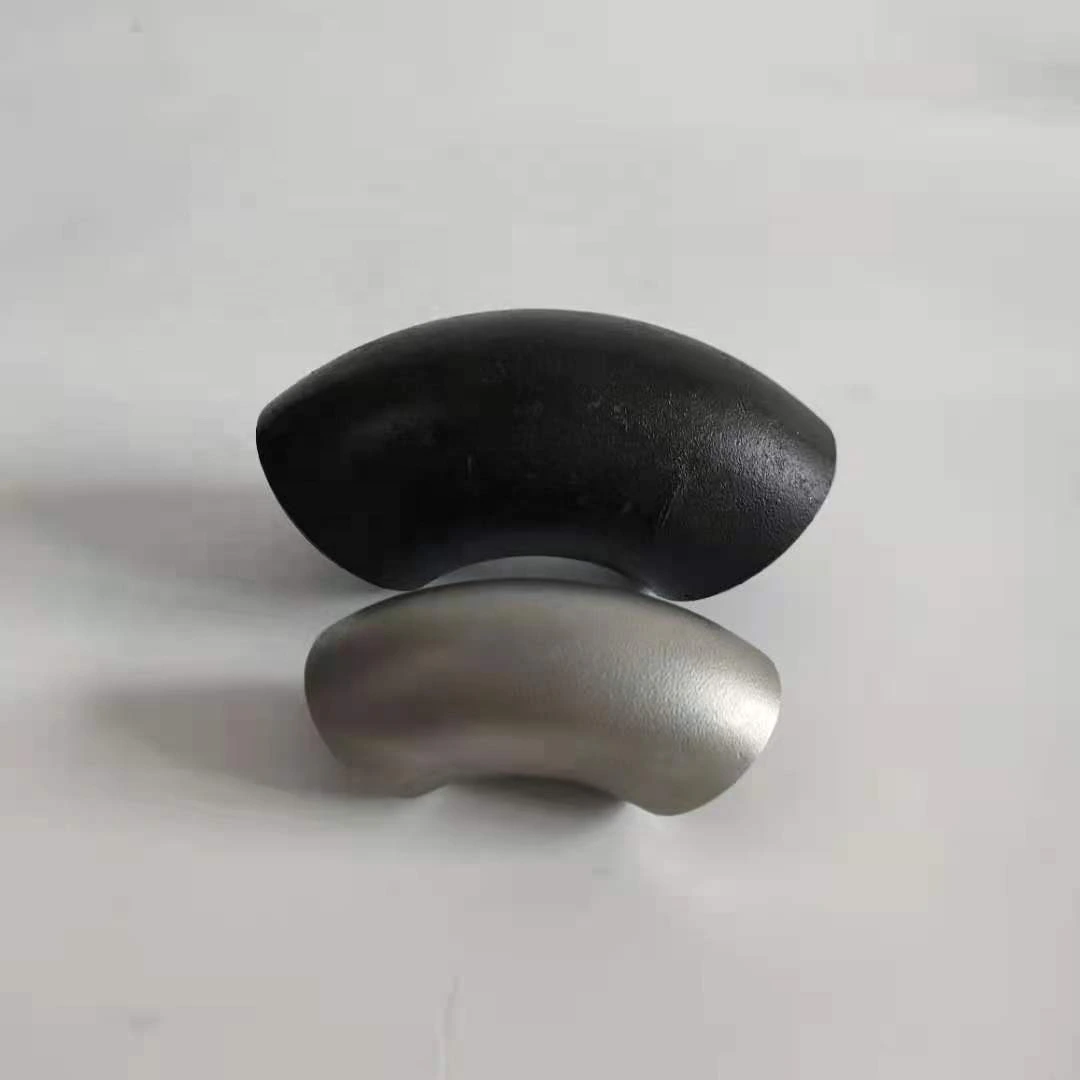

Request the accepted material designation, edition, grade, product condition and inspection traceability. Casting wording requires evidence appropriate to that selected material and production route. Dark or bright appearance in the reference images cannot establish composition, grade or manufacturing compliance.

Define the actual fluid and any relevant concentration, temperature and exposure conditions. Flexible, corrosion-resistant, chemical-resistant and UV-resistant labels provide no quantified performance on their own. State the acceptance criteria required by the project instead of assuming suitability for an unspecified application.

Dimension the SCH40 long-radius elbow

Identify what the 10 mm label measures and show both ends on a drawing. Specify the requested 90-degree angle, centerline radius, center-to-end dimensions, bore, wall and tolerances. SCH40 needs the accepted nominal size and dimensional standard before a wall value can be established.

Reducing shape wording requires separate inlet and outlet dimensions. The 4 in overall length, unitless height 4 and 0.25-inch mounting-hole entry describe other roles; do not substitute them for pipe-end sizes or invent the missing height unit. Define female/NPT features and mating interfaces by the relevant end.

Set a measurable operating duty

Provide pressure, temperature, cycling, environmental exposure and mechanical loads. Class 150 naming needs its governing standard and material-temperature basis, while low-pressure wording gives no numerical limit. Confirm the intended application, installation and inspection requirements, requested OEM or ODM scope, and the stated one-year warranty terms with the quotation.
