ASTM A234 WPB Carbon Steel Concentric Reducer for Construction Enquiry

• warranty

  3 Years
  customized support

  OEM
• Technic

  Other
  Connectivity

  Other
• shape

  Other
  head code

  Other
• Overall Length

  1/2" x 1" - 20" x 24"
  Height

  1/2" x 1" - 20" x 24"
• Surface Treatment

  Other
  Pressure

  Low Pressure
• System of Measurement

  inch
  Mounting hole diameter

  1/2" x 1" - 20" x 24"
• Pipe Features

  No additional Features
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  Other

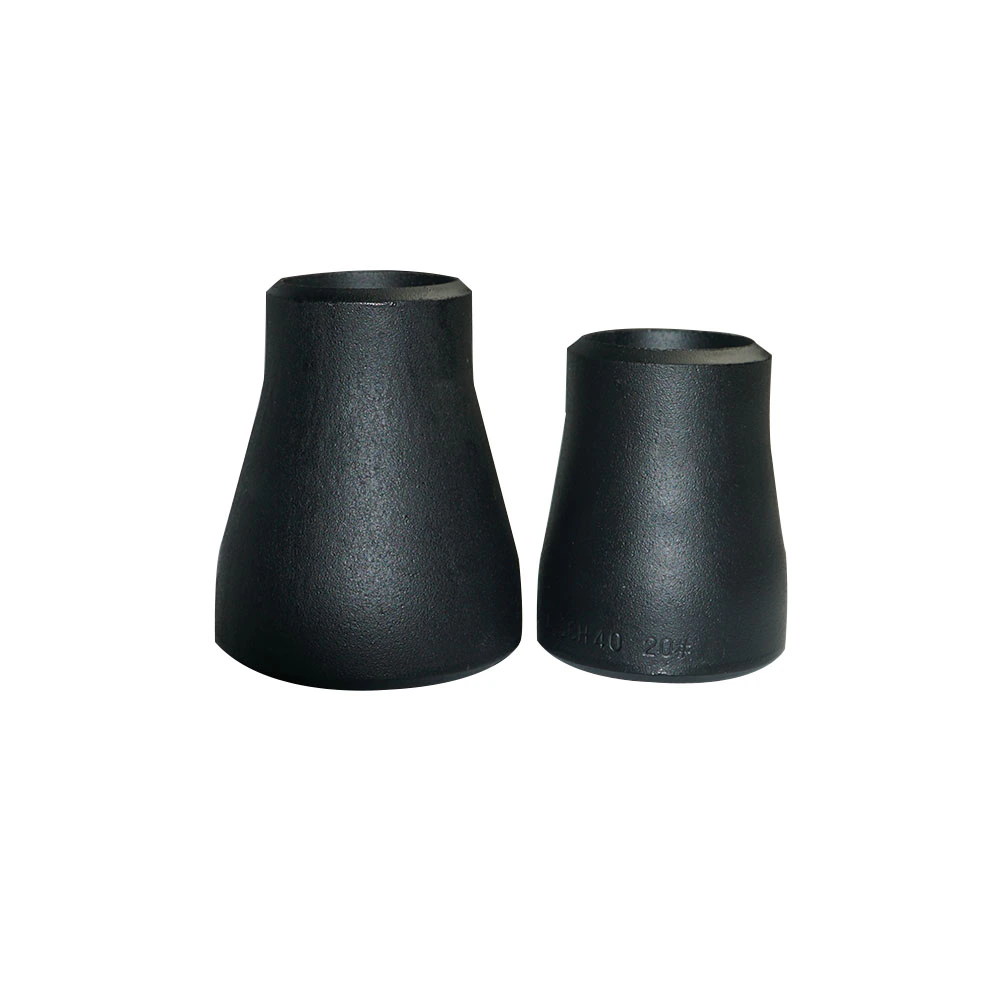

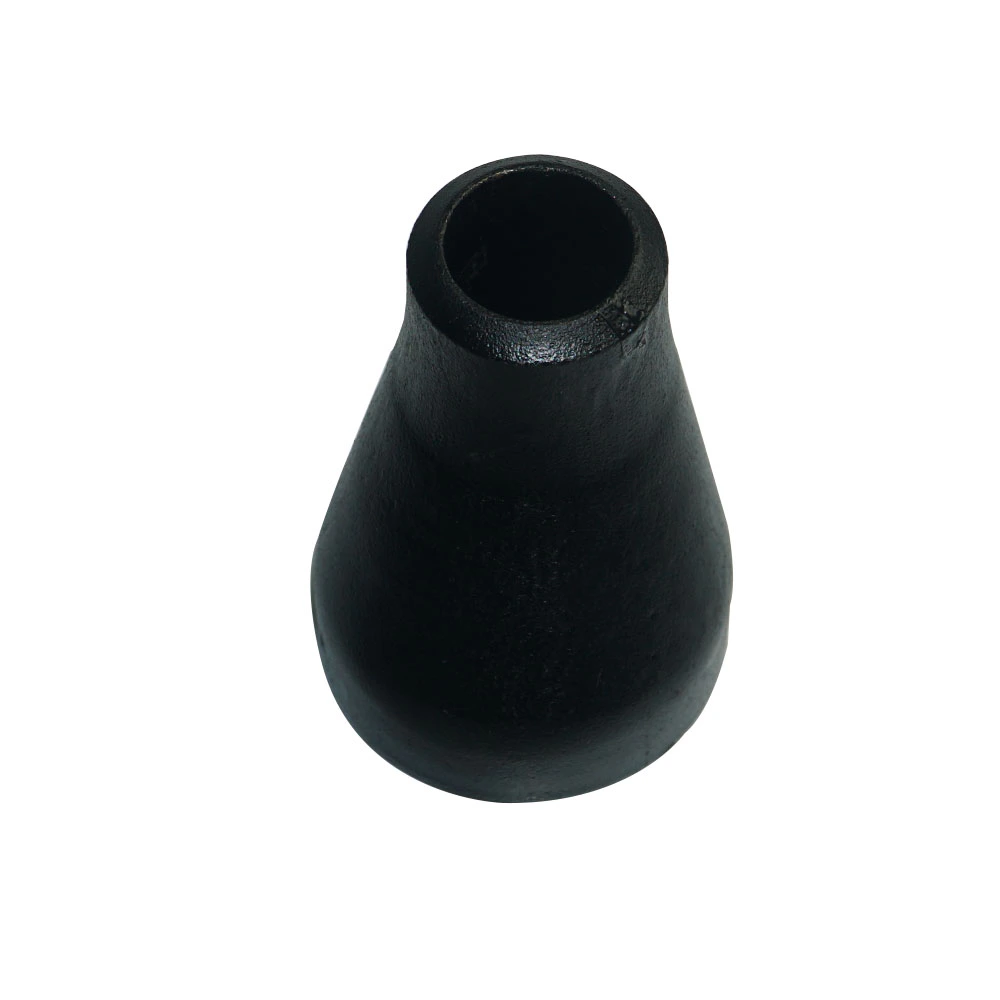

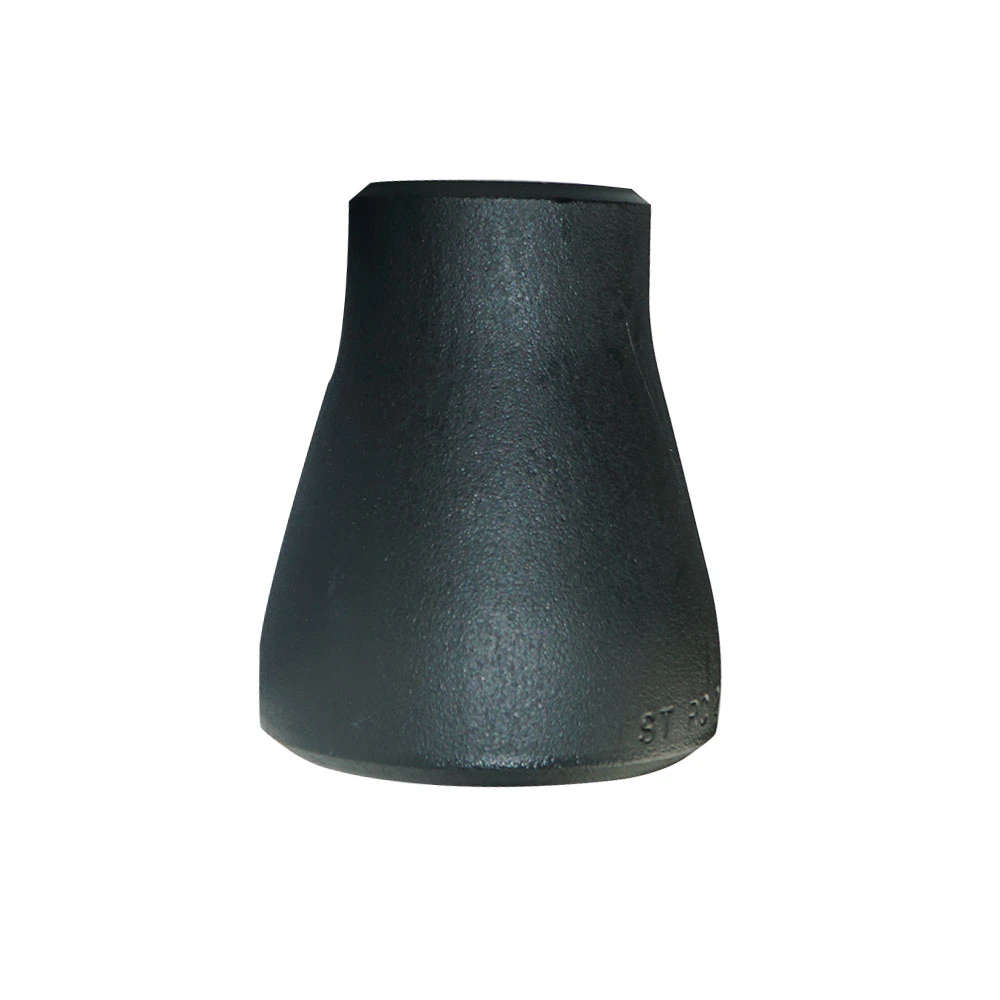

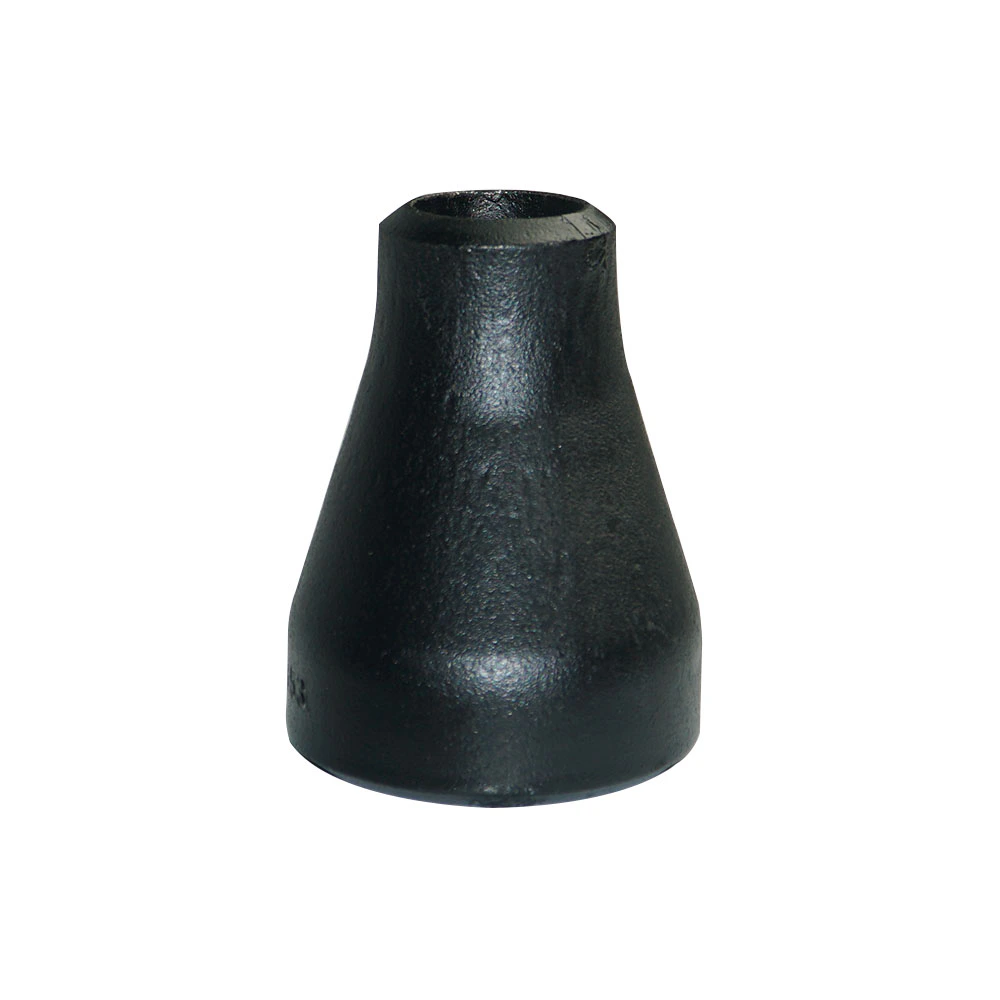

This carbon steel pipe fitting enquiry is presented as an ASTM A234 WPB concentric reducer for construction engineering. Confirm the actual supplied component and accepted transition drawing before using it to connect different pipe sizes.

Accept the concentric transition and its complete end geometry

The sole selection is labelled Flange / 1/2-inch x 1-inch to 20-inch x 24-inch / Carbon Steel. Obtain accepted component identification; a reducer request needs its own full drawing rather than an assumed flange or transition form.

For concentric reducer supply, define both end diameters and their nominal or outside-diameter basis, bores, walls, transition length, centerline alignment and tolerances. Specify actual end preparation. A flange request requires construction, bore, thickness, facing and drilling instead. Tapered photographs cannot certify the supplied subtype, alignment or dimensions.

Confirm measured values and the ASTM material evidence

The inch-marked pair range is one option, rather than discrete available sizes. Its repetition under overall length, height and mounting-hole diameter does not establish actual measurements. Confirm the ordered size and every relevant dimension against the accepted drawing.

Request the exact carbon steel product specification, selected grade and traceable certificate supporting any ASTM A234 WPB requirement. Agree actual manufacturing and inspection records. Define joining ends and mating parts explicitly; no weld preparation or thread form is established by Other wording. Specify finish or coating requirements without inferring chemistry from dark appearance.

Assess construction service with a documented operating basis

Low-pressure and Not Rated wording supplies no numerical working envelope. Construction Engineering does not certify a particular medium. Define actual fluid composition, temperature, pressure and cycling for the complete accepted joint.

Send accepted identity, exact-size transition or flange drawing, grade certificate, manufacturing/end/finish requirements and inspection criteria with full duty. Brand wording and ASTM naming do not independently establish manufacturer, origin, material compliance or operating capacity.
