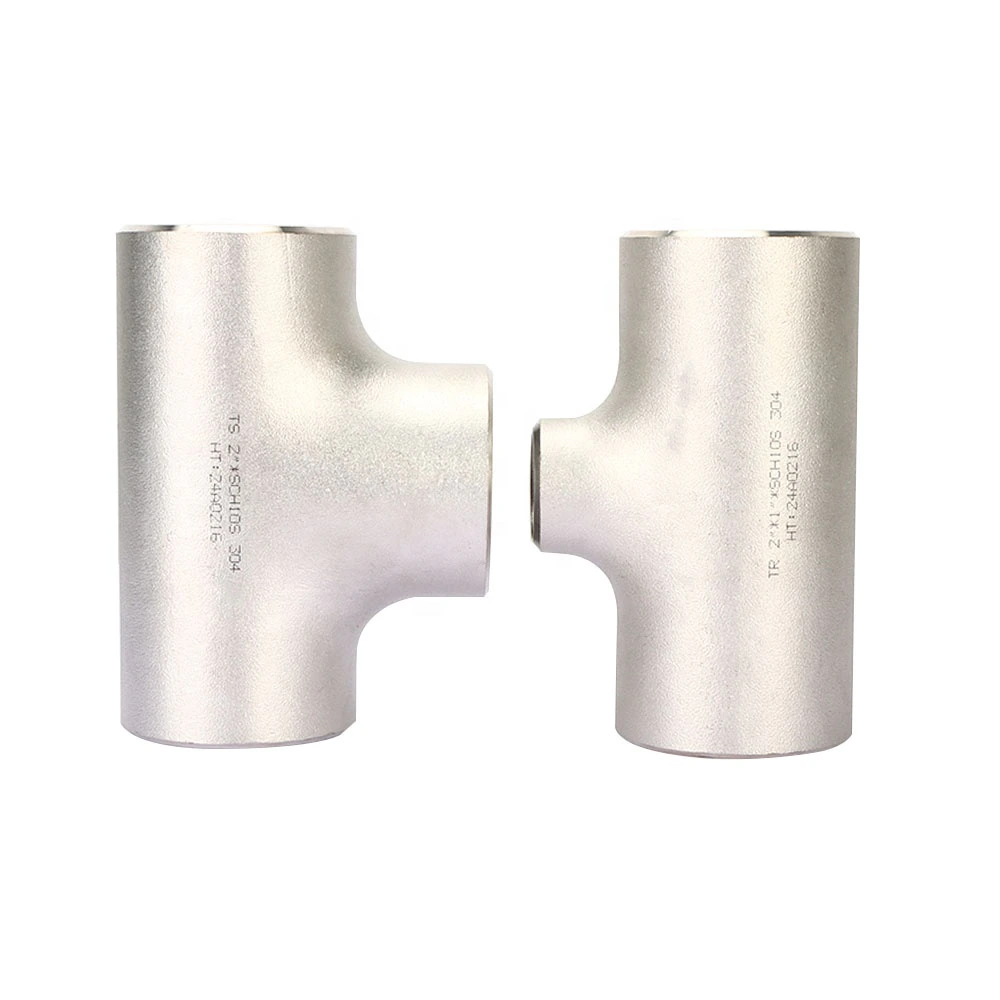

ASME B16.9 WP304L Stainless Steel Equal Tee SCH5S
Para sourcing industrial
Prepare uma RFQ mais clara
Inclua os dados abaixo para que a RELIA entenda a peça e alinhe o próximo passo com você.
- Desenho, amostra ou norma de referência
- Classe do material e processo preferido
- Dimensões, tolerâncias e acabamento superficial
- Aplicação, quantidade-alvo e destino
Prazo de produção, embalagem e condições de envio são confirmados por projeto após o acordo de especificações e termos comerciais.
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPlainPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesCustomized SizePipe Class1000
-
ApplicationShipbuilding, Oil Field, Offshore, Water System, Natural GasThread TypesCustomized Size
This ASME B16.9 WP304L stainless steel equal-tee listing uses SCH5S and ambiguous “1 2inch” size wording. Actual choices instead list Carbon Steel or a234wpb with type Reducer. Resolve the supplied material and fitting shape before treating the title as an accepted procurement specification.
Confirm WP304L material and the actual tee geometry
Request component identity, the governing material document and edition, full grade, condition and traceability. Neither the stainless title nor the carbon-steel options supplies a material certificate. Do not substitute one material for the other without supplier confirmation and accepted records.
The table says Equal, while actual options say Reducer. Agree the delivered shape on a drawing with run/branch sizes, bores, outside diameters, center-to-end lengths, branch arrangement and tolerances. Clarify the Hexagon field and generic mounting-hole/thread entries against that component.
Resolve the size notation and SCH5S wall
Ask what “1 2inch” means instead of assuming a half-inch or two-inch nominal size. Confirm individual availability; the shared half-inch-to110-inch label is not a continuous supply guarantee. Allocate customized length/height values and actual wall dimensions/tolerances to the selected drawing.
Identify the B16.9 edition and accepted dimensional requirements. Confirm SCH5S and mating pipe wall, body manufacturing and evidence for FORGED. Welding attachment and welded-body construction need separate allocation. Agree end preparation and welding/inspection; Plain finish does not establish corrosion performance.
Establish project duty beyond the class label
Pipe Class1000 lacks a stated governing numerical basis, and High Pressure is qualitative. Specify medium, pressure, temperature, cycling, loads and compatibility for the intended shipbuilding, offshore, oilfield, water or gas project. Obtain fitting/joint approval and agree inspection, material/manufacturing/dimensional records, marking, supply, quotation and warranty/OEM terms.
Informações técnicas para cada consulta
Prepare os requisitos antes da confirmação final do produto.
A página é o ponto de partida. Desenhos, amostras, interfaces, materiais, quantidades e aceitação são avaliados antes de confirmar estoque ou produção.
Discuta este produto no contexto do seu projeto.
Compartilhe desenho, amostra, referência, quantidade e aplicação. Pontos desconhecidos podem ficar em aberto.
