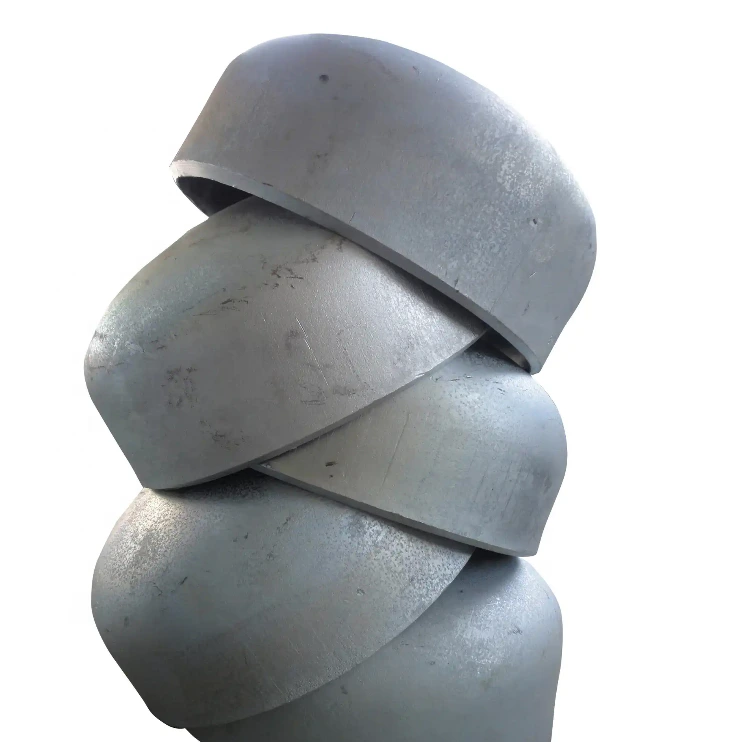

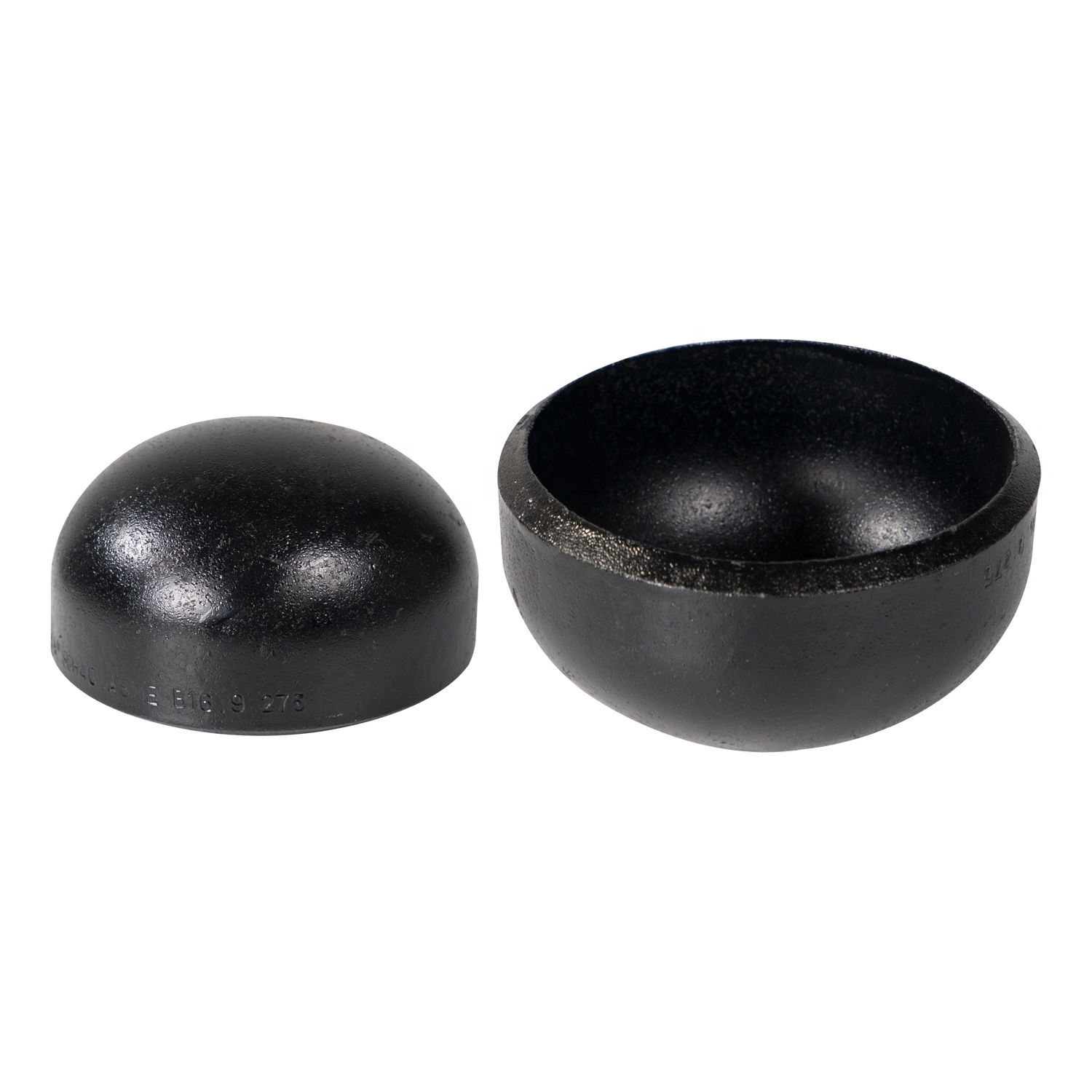

A234 Carbon Steel Pipe End Cap for Oil Pipelines

• warranty

  1 Year
  customized support

  OEM, OBM, ODM
• Technic

  Machining
  Connectivity

  Flange
• shape

  Round
  head code

  Hexagon
• Overall Length

  4 in
  Surface Treatment

  Painting
• Pressure

  Low Pressure
  System of Measurement

  inch
• Mounting hole diameter

  0.25 in
  Pipe Features

  Flexible, Corrosion-resistant, No additional Features, Uv Resistant, Chemical Resistant, underground rated
• Pipe Class

  150
  Application

  Agricultural Irrigation, Automotive Repair, Heating Systems, Power Industry, Construction Engineering, Shipbuilding, petrochemical industry, Metallurgical Industry, home appliance installation, building water supply and drainage, fire protection systems, oil & gas industry, electrical wiring protection, shipbuilding & marine engineering

This A234 carbon steel pipe end cap is listed with WPB/WPC alternatives, B16.9 and oil-related title wording. Large Diameter and Heavy Wall Thickness are also mentioned without actual diameter or wall values. Request a selected dimensional and material specification before relying on those descriptions for supply.

Translate the diameter and wall descriptions into dimensions

The only actual variant is Cap / 10 mm / Carbon Steel. Clarify the size meaning and obtain nominal size, outside diameter, wall and tolerances. The broad title wording does not identify a schedule or prove availability of a particular large or heavy-wall cap.

Flange connectivity is recorded with four-inch length, quarter-inch mounting hole, round shape, hexagon head and inch measurement system. Obtain a drawing allocating these entries and defining flange face, drilling, mating component and sealing requirements. A length or mounting-hole value is distinct from pipe diameter and wall thickness.

Select the material designation and conformity package

WPB and WPC appear together without separate grade options. Specify one complete designation and condition, governing A234 and B16.9 documents, editions and applicable component scope. Request certificates, traceability and manufacturing records addressing the machining entry; no additional construction route is established here.

Painting needs coating type, preparation, thickness and acceptance criteria. Require evidence for the intended corrosion or chemical exposure, and for any UV, flexible or underground requirements. The general feature list does not establish protective performance for every material, fluid and environment.

Define the oil-service and inspection requirements

Supply oil composition, pressure, temperature, cycling, external exposure and mechanical loads. Obtain the selected material, coating, joint and rating basis before acceptance. Low Pressure and Class 150 provide no numerical operating limits here; agree dimensional checks, examination/testing and documentary requirements for the actual project instead of relying on the broad application list.
