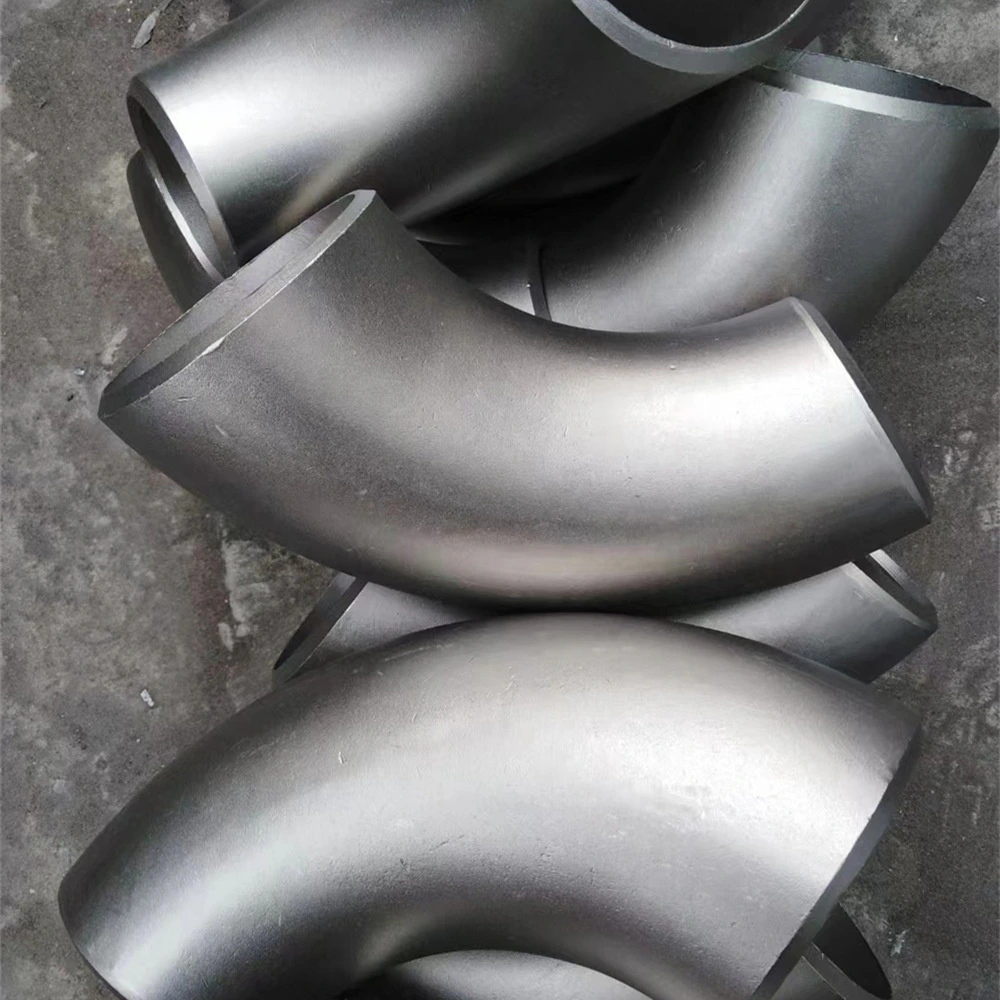

ASTM A234 WPB Carbon Steel 90° LR Elbow

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This ASTM A234 WPB carbon steel elbow listing describes a90-degree long-radius component for construction piping. The actual catalogue choice is Carbon Steel/Elbow with a half-inch-to12-inch range. Establish the individual size and approved drawing before specifying the component for a project.

Resolve the end connection before installation

The table records Welding connectivity and an NPT thread entry. Those fields do not establish one accepted end design. Request a drawing identifying the actual connection, end preparation and mating pipe interface; do not assume both arrangements are supplied on the same elbow.

Likewise, the Hexagon head code needs clarification against the selected component. Confirm90-degree angle, long-radius geometry, center-to-end dimensions, bore, outside diameter, wall thickness/schedule and tolerances. No dimensional standard or numerical schedule is established here, so agree the actual governing specification.

Verify material, manufacture and individual dimensions

Obtain the full ASTM A234 WPB designation, condition, traceability and material certificates. Request manufacturing evidence for seamless and forged wording. Define the smooth finish and inspection criteria without treating appearance or a generic corrosion-resistant entry as fluid-specific performance approval.

The size option is a range rather than an individual selection. Overall Length, Height and Mounting hole diameter repeat that range; they cannot determine actual elbow dimensions or prove a hole feature. Use the accepted drawing to allocate dimensions and confirm individual supply.

Approve service conditions for the piping system

Low Pressure and Not Rated provide no accepted numerical duty. Specify fluid, pressure, temperature, cycling, loads and corrosion allowance. Confirm pipe/wall compatibility, installation and attachment procedure, alignment and inspection. Agree certificates, marking and quotation scope before procurement for the actual construction project.
