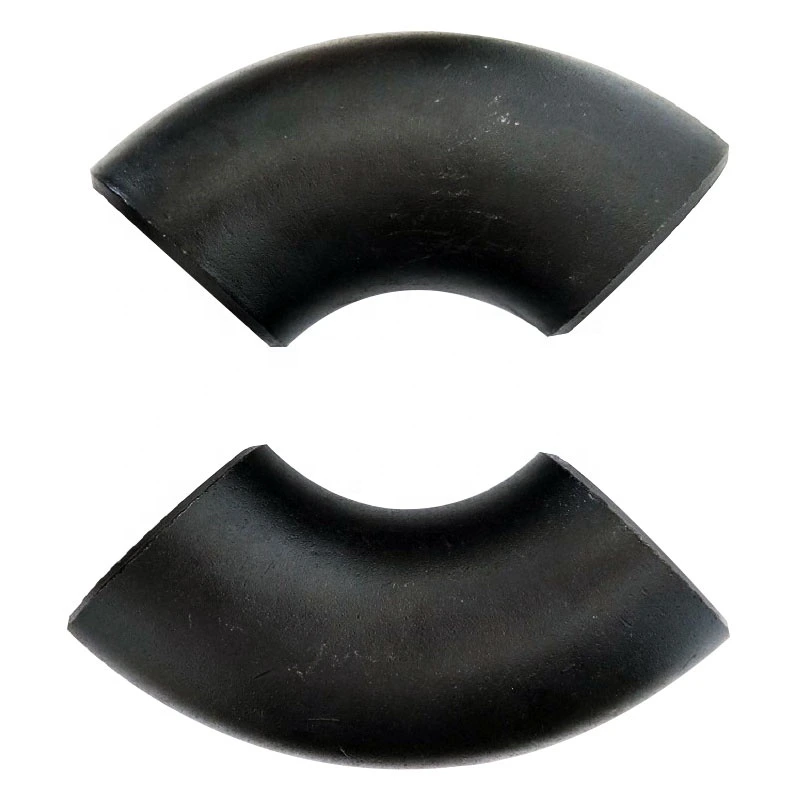

90 Degree Forged Elbow Pipe Fitting for Construction

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This 90-degree forged elbow pipe fitting enquiry has inconsistent material information. The title names 304/316 stainless steel, while the actual variant specifies Carbon Steel. Resolve the supplied material before procurement; neither the title nor the option alone establishes the certified grade for the intended enquiry.

Confirm stainless or carbon steel before specification

Request supplier confirmation, the full material designation, governing document, condition, heat traceability and certificates. The 304/316 title references and carbon-steel option are not interchangeable. Images cannot certify those grades, so surface appearance should not be used to settle the discrepancy.

The title also records forged and welded wording. Obtain manufacturing evidence and clarify whether welded describes the production route or intended joining. ASME and ANSI appear without exact document numbers; agree the applicable material and dimensional specifications instead of adding an unrecorded standard.

Allocate the 90-degree geometry and actual ends

Select the nominal size from the half-inch-to-12-inch context and request outside diameters, bores, wall, radius and center-to-end dimensions. No schedule or long/short radius is recorded. Length, height and mounting-hole fields repeat the size range; obtain actual measurements and clarify whether a hole exists.

Welding and NPT entries need an accepted end-detail drawing, matching pipe and joining procedure. Do not infer butt-weld preparation from Welding alone. Resolve Hexagon against actual geometry, and specify the smooth finish and inspection without treating corrosion-resistant wording as proof of coating or compatibility.

Approve construction duty after material reconciliation

Low Pressure and Not Rated leave numerical limits unconfirmed. State medium, pressure, temperature, exposure, cycling and loads, then obtain system acceptance. Agree joining, alignment, support, inspection, marking, material/process/dimensional records, warranty terms and quotation scope for the confirmed elbow.
