48-Inch ANSI B16.9 A234 WPB Carbon Steel Welding Tee Enquiry
Voor industriële inkoop
Bereid een duidelijke RFQ voor
Neem onderstaande gegevens op zodat RELIA het onderdeel begrijpt en de volgende stap kan bespreken.
- Tekening, monster of referentienorm
- Materiaalkwaliteit en voorkeursproces
- Maten, toleranties en oppervlakteafwerking
- Toepassing, doelvolume en bestemming
Productietijd, verpakking en verzendvoorwaarden worden per project bevestigd nadat specificaties en handelsvoorwaarden zijn overeengekomen.
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPlainPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesOtherPipe ClassOther
-
ApplicationOtherThread TypesCustomized Size
For this 48-inch ANSI B16.9 A234 WPB carbon steel welding tee enquiry, establish what the title’s size describes. Confirm whether it refers to the run, branch or another dimension, and obtain individual supply confirmation. The actual size option is a shared half-inch-to110-inch label rather than a detailed availability list.
Approve the large-size run and branch arrangement

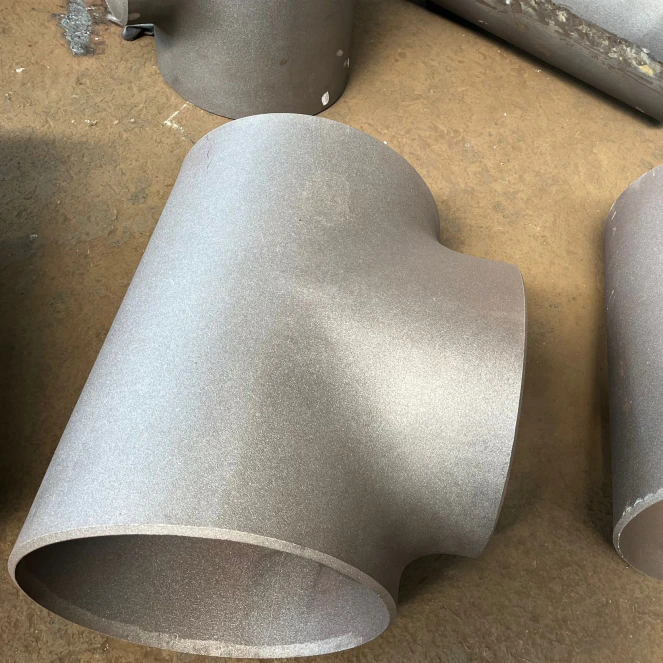

The table says Equal, while both actual variants use Reducer. Reference images show tee forms, including visibly smaller branches, without a reliable scale. Ask the supplier to identify the delivered shape and provide both nominal sizes, bores, outside diameters, center-to-end dimensions, orientation and tolerances.
Clarify the Hexagon field and customized length/height entries on that drawing. Generic mounting-hole and thread fields should not add unsupported interfaces. Identify the governing B16.9 document and edition and confirm its agreed dimensional scope for the requested large-size component.
Specify actual wall and traceable carbon steel
Carbon Steel and a234wpb are the two actual material labels. Confirm the full material specification, grade, condition and accepted traceability documents. No wall schedule or numerical thickness is recorded; provide actual wall and tolerance at each end before matching the fitting to pipework.
Request manufacturing evidence for the table’s FORGED wording and clarify the actual body route. Welding connectivity does not establish seam condition. Agree end preparation, mating pipe fit, alignment, welding and installation inspection. Plain finish and light/dark photographs do not establish protective coating performance.
Confirm the duty of the completed welded connection
The qualitative High Pressure entry gives no numerical capability, with Pipe Class and Application listed as Other. Specify medium, pressure, temperature, cycling, loads and compatibility. Obtain fitting/joint acceptance and agree material/manufacturing/dimensional records, marking, individual-size supply, quotation scope and warranty/OEM terms.
Technische informatie voor elke productaanvraag
Bereid de eis voor vóór de definitieve productbevestiging.
De productpagina is het startpunt. Tekeningen, monsters, interfaces, materialen, aantallen en acceptatie-eisen worden beoordeeld vóór voorraadmatch of maatwerkproductie.
Bespreek dit product binnen uw project.
Deel tekening, monster, referentie, doelaantal en toepassing. Onbekende punten kunnen openblijven voor beoordeling.
