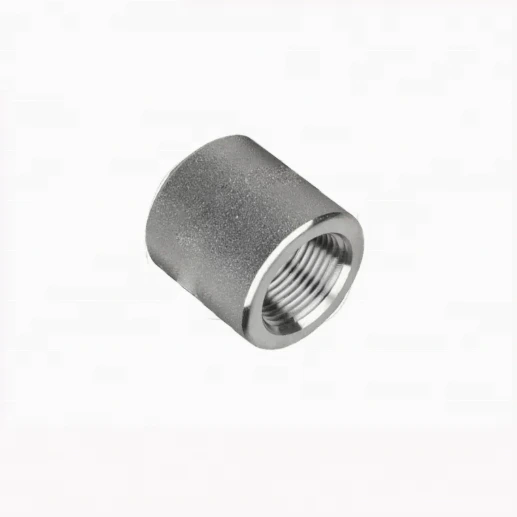

Cast Carbon Steel NPT Full/Half Coupling

• warranty

  1 year
  customized support

  OEM, ODM
• Technic

  Casting
  Connectivity

  Other
• shape

  Reducing
  head code

  Other
• Overall Length

  4 in
  Surface Treatment

  Smooth
• Pressure

  Low Pressure
  System of Measurement

  inch
• Mounting hole diameter

  0.26 in
  Pipe Features

  Flexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features, underground rated
• Pipe Class

  3000
  Application

  Agricultural Irrigation, Automotive Repair, Heating Systems, Power Industry, Construction Engineering, Shipbuilding, petrochemical industry
• Thread Types

  NPT

This cast carbon steel NPT coupling is listed with full/half configuration wording and A105 material references. The single variant is a generic 10 mm coupling. Confirm the selected arrangement and supply documents before treating the title as a complete dimensional or conformity specification.

Allocate A105 and casting requirements to the order

Specify the full material designation, condition and governing document. Verify how the A105 reference relates to the actual casting route and selected production scope, supported by traceability, manufacturing and inspection records. Do not infer conformity or incompatibility from the two labels alone.

Identify the B16.11 document and edition and the requirements applicable to this component. Obtain the selected material and production acceptance package rather than treating the general standard reference as certification. No additional material or finish option is established by the available variant.

Choose full or half configuration and NPT geometry

Provide a drawing showing the required connection count, nominal ends, wall thickness and tolerances. Clarify the Reducing entry and verify availability of the chosen full or half arrangement. The generic Coupling option does not distinguish both configurations for the order.

Allocate the 10 mm label, 4 in length and 0.26 in hole to actual features and dimensional conventions. Define installation clearance, complete NPT designation, engagement, mating components, sealing and examination. Agreement on the drawing and thread criteria is needed before confirming fit.

Set the rating and exposure acceptance package

Confirm the Class 3000 basis at the selected material and temperature without equating it to a stand-alone operating pressure. Agree measurable Smooth finish and delivery protection. Provide medium, numerical duty, cycling, corrosion exposure and loads; clarify applicable features and any buried use. Obtain relevant resistance or flexibility evidence and document material/joint acceptance with the selected geometry, casting, threads and testing requirements.
