DIN 2616 Carbon Steel Butt-Weld Concentric Reducer Enquiry

• warranty

  1 year
  customized support

  OEM
• model number

  reducer 6034
  Technic

  Casting
• Connectivity

  male female
  shape

  Equal
• head code

  Round
  Overall Length

  5.8in
• Height

  5
  Surface Treatment

  Smooth
• Pressure

  Low Pressure
  System of Measurement

  inch
• Mounting hole diameter

  0.17 in
  Pipe Features

  underground rated, No additional Features, Uv Resistant, Chemical Resistant, Corrosion-resistant
• Pipe Class

  150
  Application

  petrochemical industry, Shipbuilding, Construction Engineering, Power Industry, Heating Systems
• Thread Types

  NPT

This carbon steel concentric reducer enquiry starts with the two pipes that the transition must join. Provide their actual specifications and the DIN 2616 butt-weld requirements for the project. Confirm the selected reducer from a paired-end drawing so that the change in size, centerline arrangement and joining details can be evaluated together.

Use the adjoining pipes as the dimensional starting point

Record which pipe forms the large end and which forms the small end. Include each nominal designation, outside diameter and wall, then show the required alignment and transition length on the installation drawing. Ask for the corresponding reducer dimensions rather than selecting from one diameter label alone. The end pair must remain explicit, particularly when checking a replacement against existing pipework.

Check concentric geometry and the required weld ends

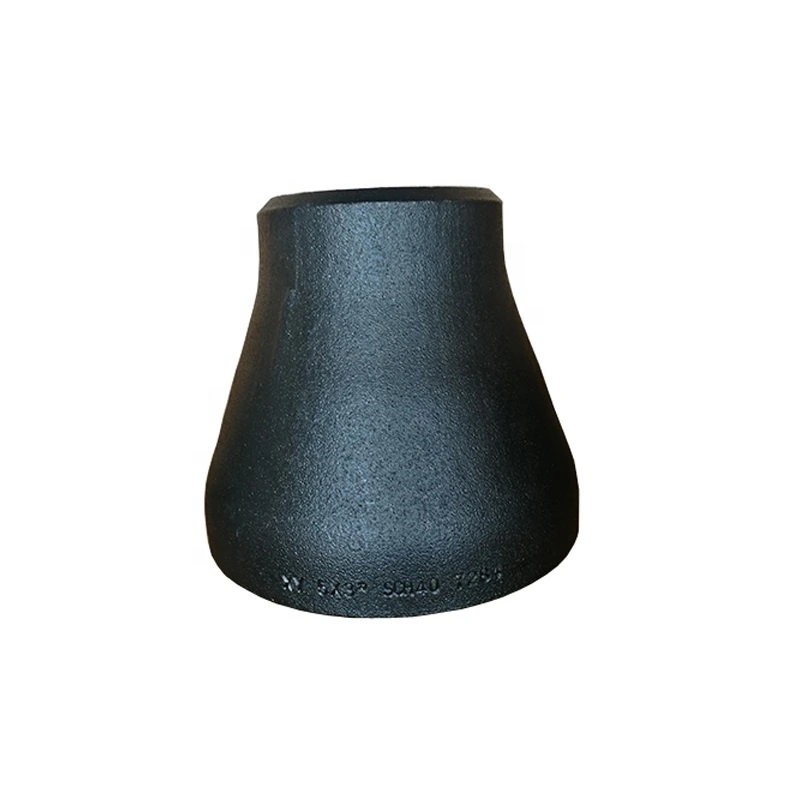

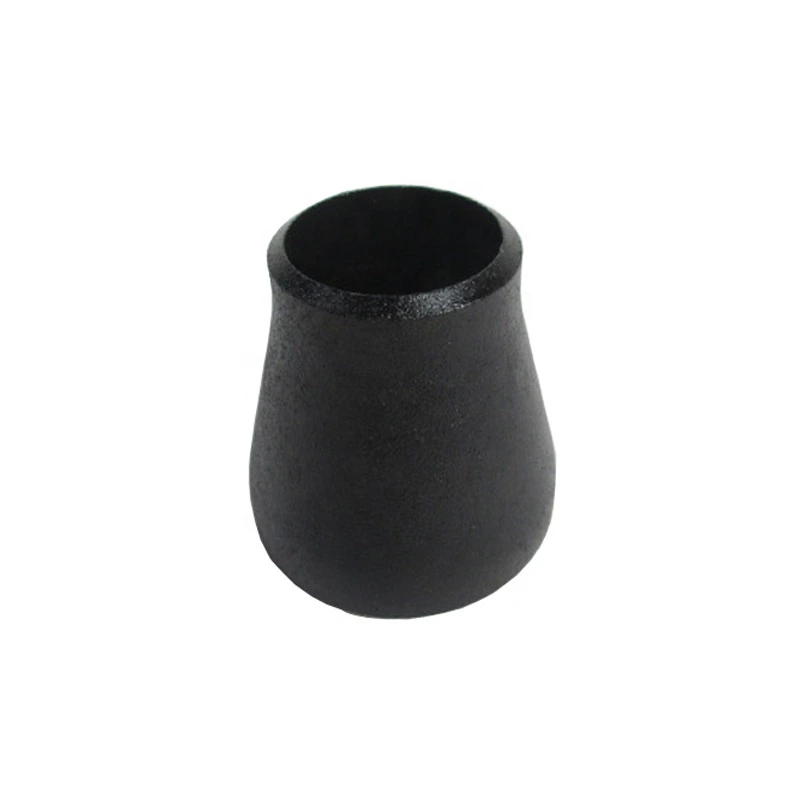

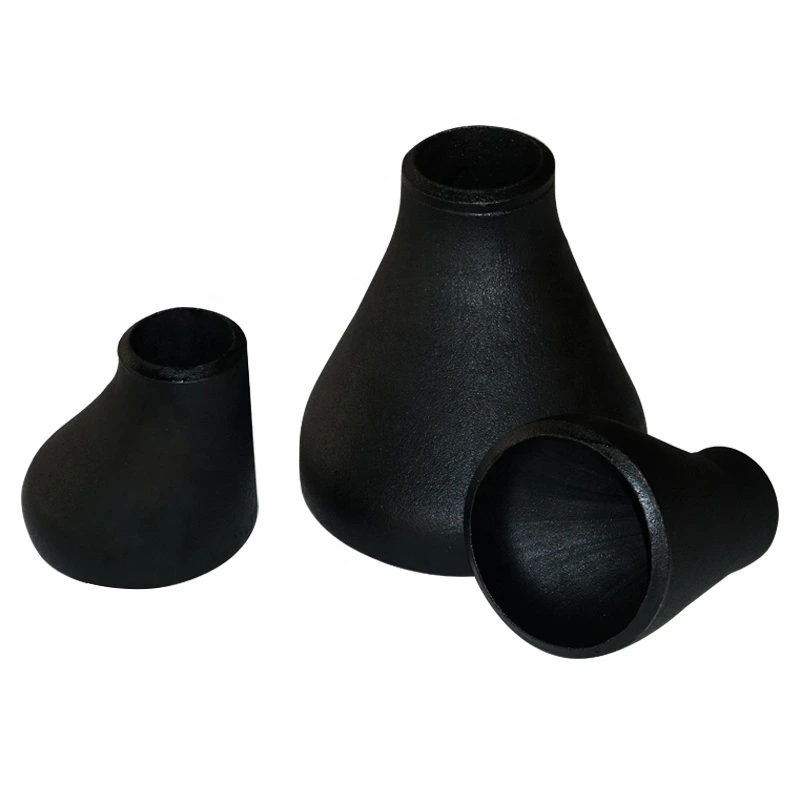

Request confirmation of the common-centerline arrangement and the actual end preparation under the required DIN 2616 edition. Compare both ends with the pipe dimensions and joining procedure. A tapered product photograph can help identify the component family but does not establish exact alignment, wall or connection geometry. Similar reducer names also do not demonstrate that two configurations have the same fit or a different service advantage.

Complete the carbon steel material assessment

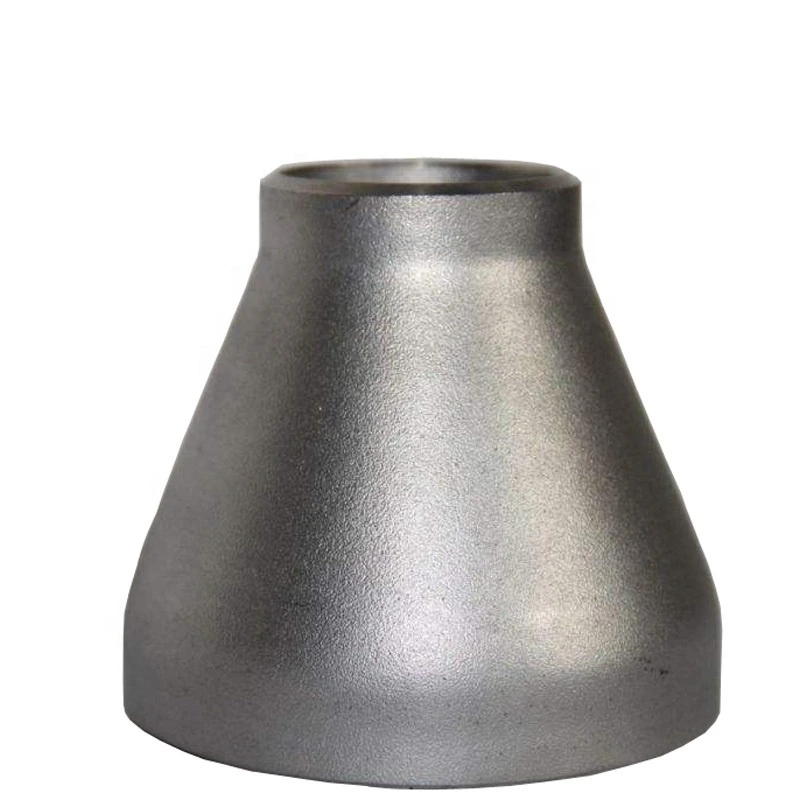

Specify the exact Carbon Steel grade and required construction, then obtain the selected part's material and dimensional documentation. If a Stainless Steel option is considered, define that requirement separately. State the intended medium, pressure and temperature so the applicable qualification can be reviewed. Before accepting the transition, confirm that the pipe pair, reducer drawing, material and operating scope refer to the same configuration. Recheck both ends whenever an adjoining pipe specification changes, rather than assuming that the original transition remains suitable.
