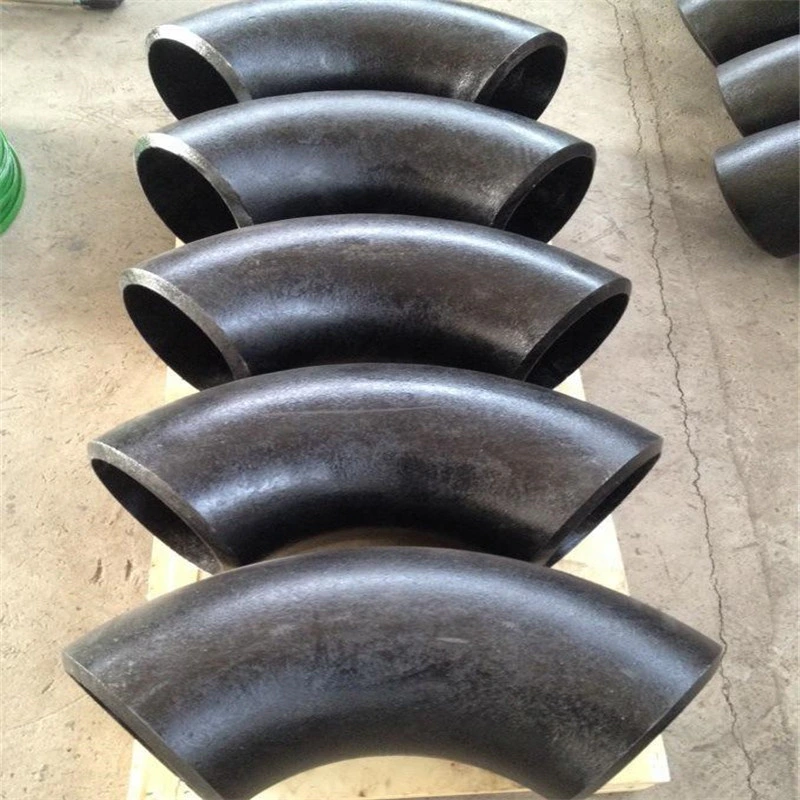

A234 WPB Carbon Steel 45°/90° Reducing Elbow

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This A234 WPB carbon steel reducing elbow listing describes45-degree and90-degree alternatives for construction piping. The sole catalogue choice is a Carbon Steel/Elbow range from half-inch to12-inch. Specify the required angle and reducing-end pair; neither is separately selected by the current variant.

Define both ends of the reducing elbow

Request a drawing identifying the larger and smaller nominal sizes, outside diameters, bores and wall transitions. Confirm actual radius, center-to-end dimensions and tolerances for the chosen angle. The title supplies no long-radius designation or numerical wall schedule, so those requirements need explicit agreement.

Check end preparation and mating pipe compatibility on both sides. Welding connectivity and an NPT thread entry coexist in the table without establishing the supplied arrangement. Resolve the actual ends rather than assuming a hybrid fitting. Clarify the Hexagon entry against the component drawing.

Confirm WPB material and manufacturing records

Obtain the full ASTM A234 WPB designation, condition, traceability and accepted material certificates. Request evidence supporting forged construction. No dimensional standard or seamless process is explicitly recorded here. Define smooth-surface inspection without treating corrosion-resistant wording as approval for a particular fluid.

The range repeated under Overall Length, Height and Mounting hole diameter does not identify actual reducing geometry or prove a hole feature. Allocate dimensions through the approved drawing and confirm availability of the individual angle, end-size pair and wall combination.

Agree conditions for the assembled piping

Low Pressure and Not Rated leave numerical service limits unspecified. State medium, pressure, temperature, cycling, loads and corrosion compatibility. Obtain approval for the unequal pipe interfaces and completed system. Agree joining, alignment, inspection, marking, certificates and quotation scope before procurement.
