Carbon Steel Branch Outlet for Industrial Piping

• warranty

  1 year
  customized support

  OEM, ODM
• Technic

  Casting
  Connectivity

  Other
• shape

  Reducing
  head code

  Other
• Overall Length

  4 in
  Surface Treatment

  Smooth
• Pressure

  Low Pressure
  System of Measurement

  inch
• Mounting hole diameter

  0.26 in
  Pipe Features

  Flexible, Corrosion-resistant, Chemical Resistant, Uv Resistant, No additional Features, underground rated
• Pipe Class

  3000
  Application

  Agricultural Irrigation, Automotive Repair, Heating Systems, Power Industry, Construction Engineering, Shipbuilding, petrochemical industry
• Thread Types

  NPT

This cast steel listing describes a reducing branch outlet for industrial piping, while its actual variant says Coupling with a 10 mm size entry. Welding appears in the title and NPT in the table. Confirm the supplied fitting form and connection arrangement before adopting a branch outlet specification.

Establish the actual branch or coupling geometry

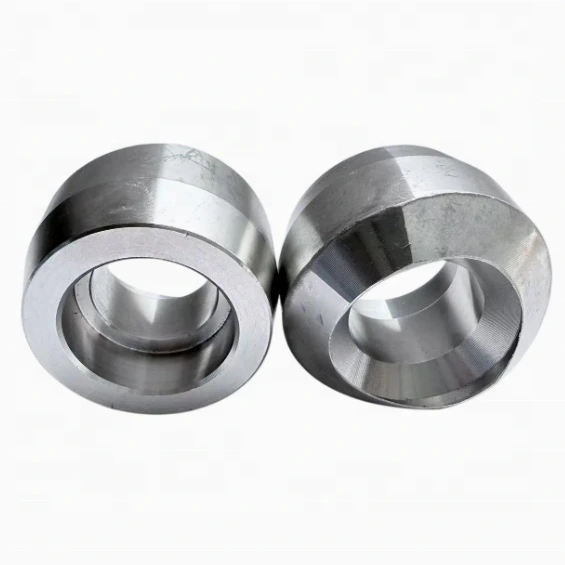

Request a drawing showing the contact geometry, openings and every connection. Identify run and branch dimensions if an outlet is supplied, or the actual coupling ends if that selection applies. The inspected image shows annular machined forms without verifying a branch-contact interface, thread or exact size.

Allocate welding and threaded requirements to the confirmed ends, including preparation, designation and inspection. Do not treat the title and table as a complete connection drawing. Obtain the relevant B16.11 edition and selected geometric and manufacturing scope for the offered configuration.

Define the dimensional roles and available size

The title uses half-inch to 24-inch wording, the variant records 10 mm, and the table lists 4 in overall length plus a 0.26 in mounting-hole field. Clarify what each dimension measures and agree units, tolerances and actual offered size rather than assuming an equivalent range or interchangeable measurements.

Specify the selected bore, wall and relevant contact or end dimensions. Casting and carbon steel references require actual material grade, condition, manufacturing and traceability records. Smooth does not establish a protective coating, and the broad corrosion, chemical, UV and underground labels do not verify tested exposure performance.

Confirm the Class 3000 and industrial duty basis

Class 3000 is not a stated operating pressure; Low Pressure gives no numerical limit. Provide the medium, temperature, pressure, cycling and mechanical loads for material, joint and rating assessment. Agree tests and project acceptance for the resolved fitting geometry before relying on the broad listed industrial applications.
