45-Degree Forged Carbon Steel Elbow for Construction, 1/2–12 Inch Enquiry

• warranty

  3 Years
  customized support

  OEM
• Technic

  FORGED
  Connectivity

  Welding
• shape

  Bend
  head code

  Hexagon
• Overall Length

  1/2" - 12"
  Height

  1/2" - 12"
• Surface Treatment

  smooth
  Pressure

  Low Pressure
• System of Measurement

  INCH
  Mounting hole diameter

  1/2" - 12"
• Pipe Features

  corrosion resistant
  Pipe Class

  Not Rated
• Application

  Construction Engineering
  Thread Types

  NPT

This forged carbon steel elbow enquiry concerns a 45-degree direction change for construction engineering. The actual Elbow selection uses one 1/2-inch to 12-inch range and Carbon Steel. Accept the exact bend drawing and supplied connection before choosing it for your pipe layout.

Define the bend angle and the measured installation envelope

Specify exact pipe size and its nominal or outside-diameter basis, both end bores, wall thicknesses and tolerances. Confirm the required angle, bend radius, center-to-end dimensions and orientation. The title's 45-degree wording needs selected drawing acceptance.

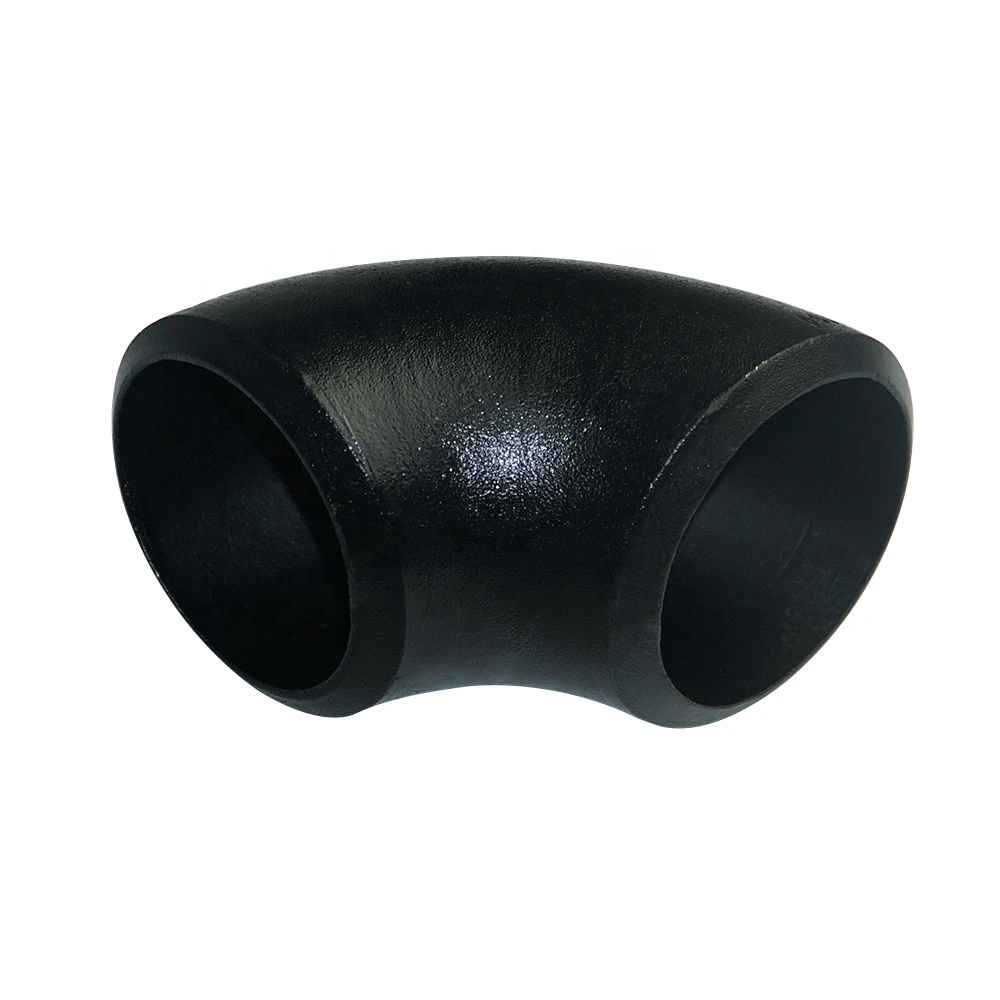

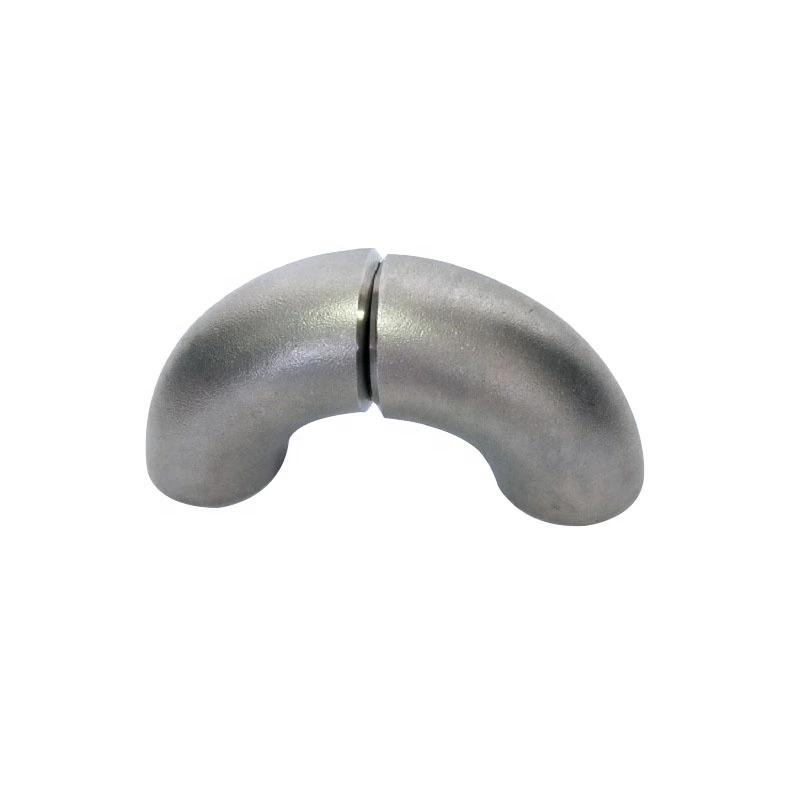

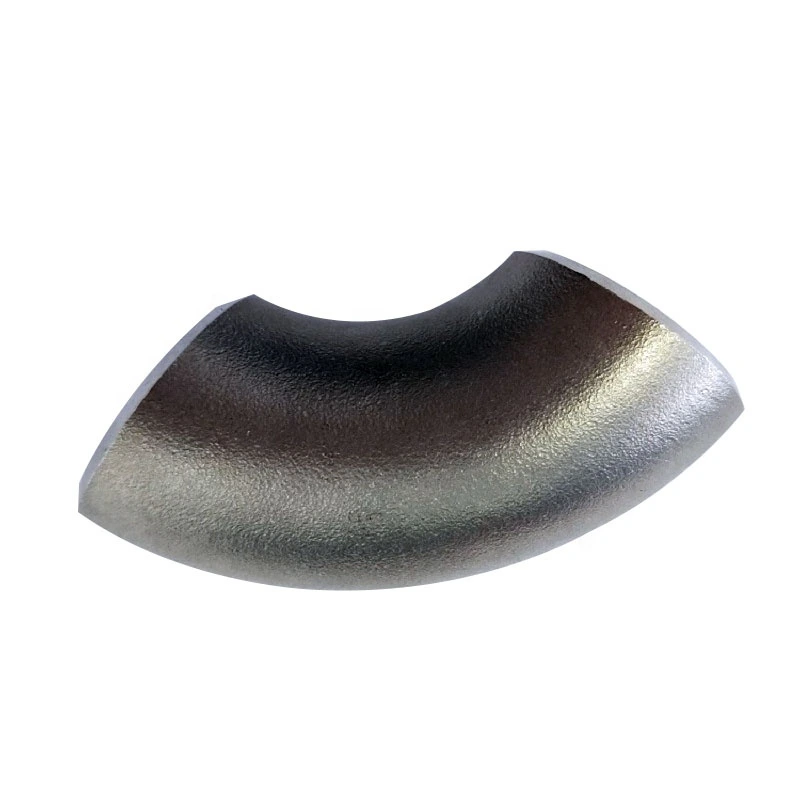

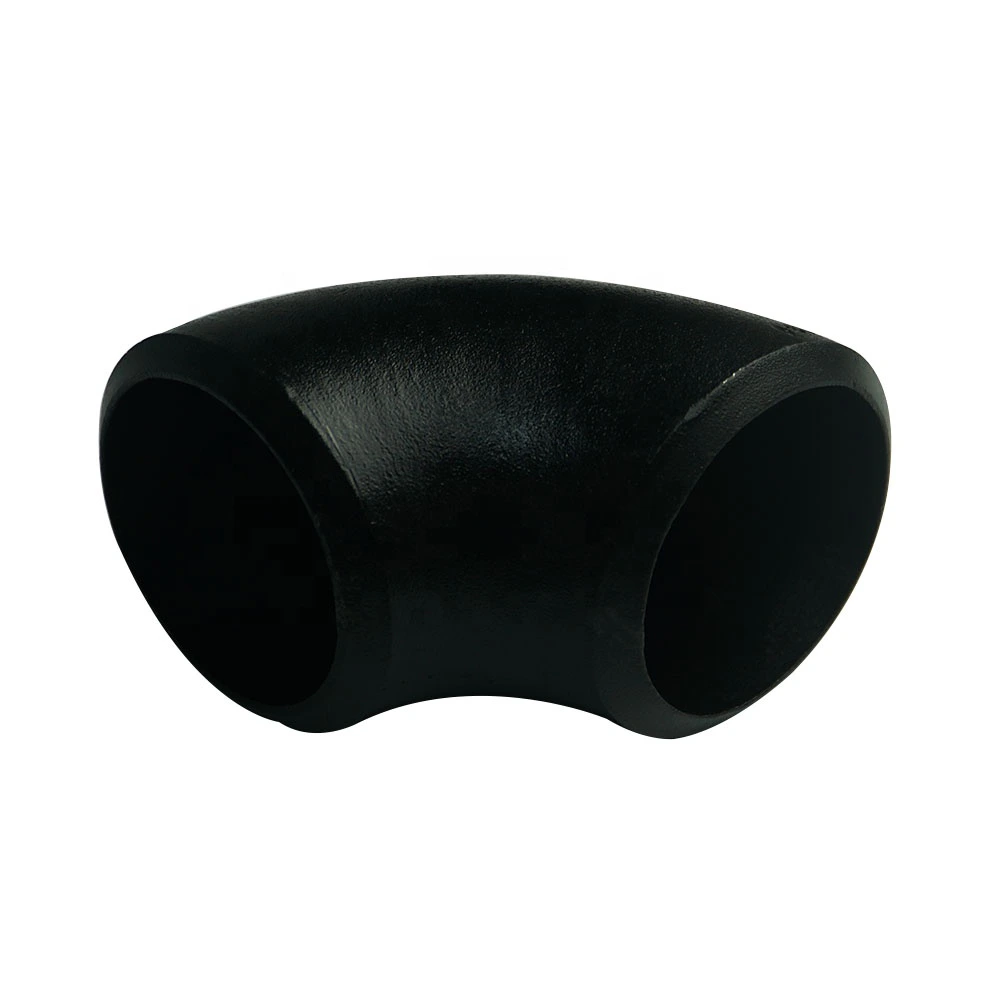

The broad size range is also repeated for overall length, height and mounting-hole diameter. Obtain actual measured values for the ordered part rather than applying one range to every dimension. Elbow photographs assist form comparison without certifying angle, radius, grade or dimensions.

Accept one actual connection with its inspection requirements

Confirm the supplied end construction and mating parts. For welding, specify end preparation, pipe-wall matching, procedure and inspection. For an NPT request, define thread sizes, gender, engagement, gauging and compatibility. Accept the actual selected arrangement before installation.

Carbon Steel is the only selectable material; stainless wording does not add a material variant. Request an exact product specification, grade and traceable certificate. Agree the forged manufacturing route and records. Bend and Hexagon wording does not complete geometry, while smooth finish does not specify measured roughness or coating chemistry.

Evaluate low-pressure and corrosion requirements together

No certified pressure-temperature envelope is supplied. Low-pressure wording does not identify a numerical operating limit, and corrosion resistance requires evidence for the actual fluid and environment. Provide medium composition, temperature, pressure, cycling and exposure for the complete accepted joint.

Send the exact-size bend drawing, actual connection details, material certificate, forging and finish requirements and inspection criteria with the full duty. Construction Engineering is an enquiry context rather than independent approval for every medium or installation.
