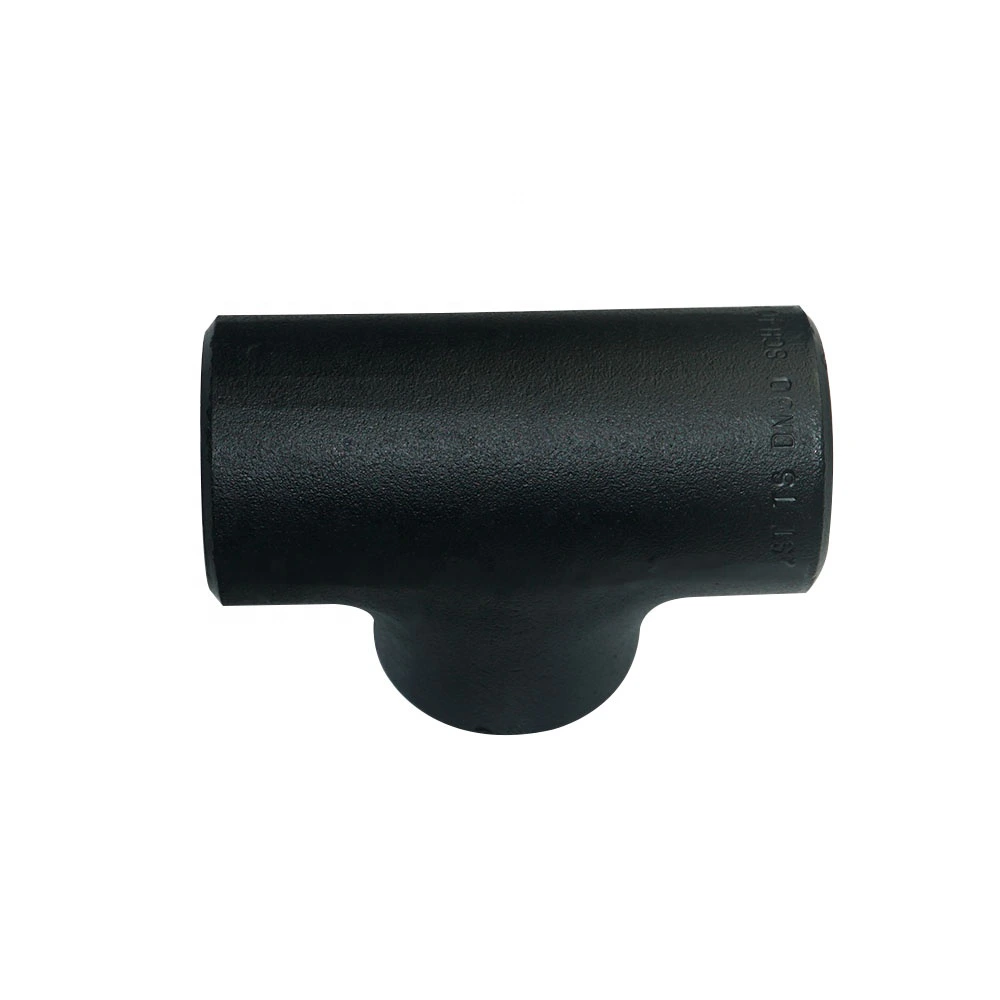

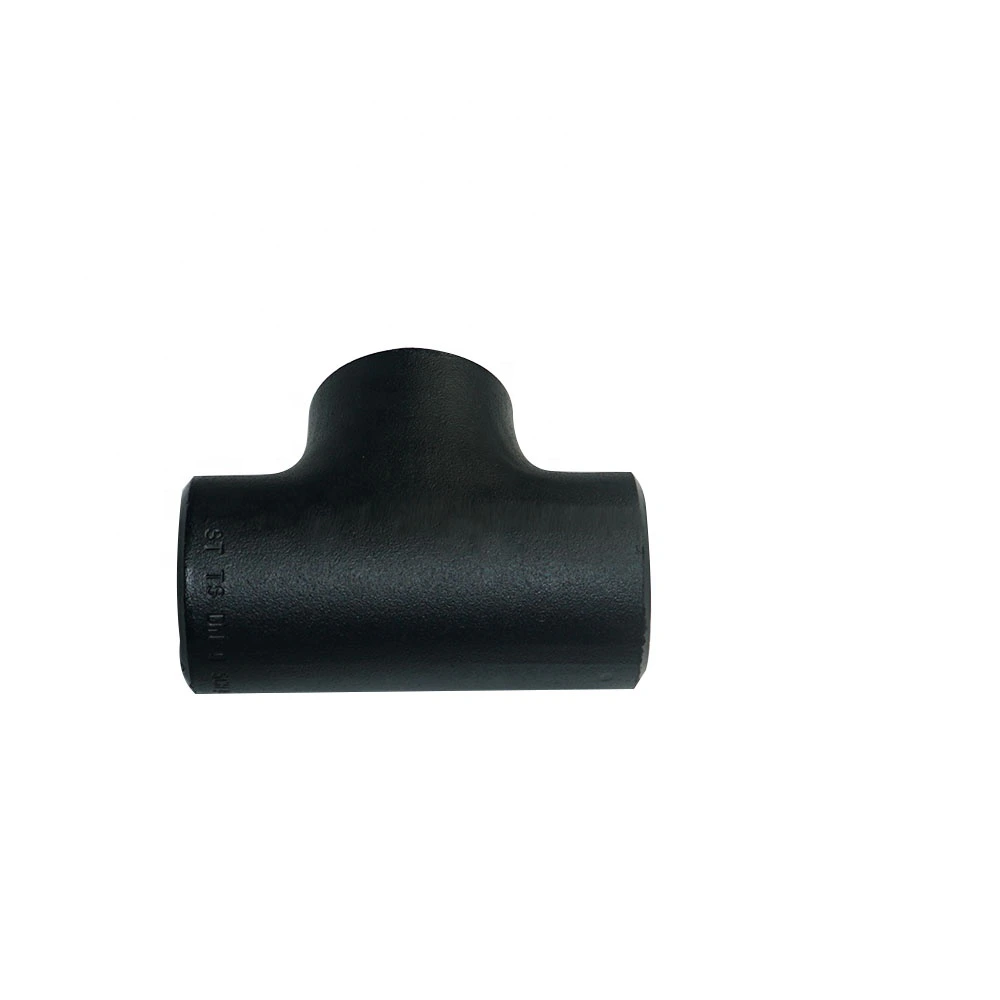

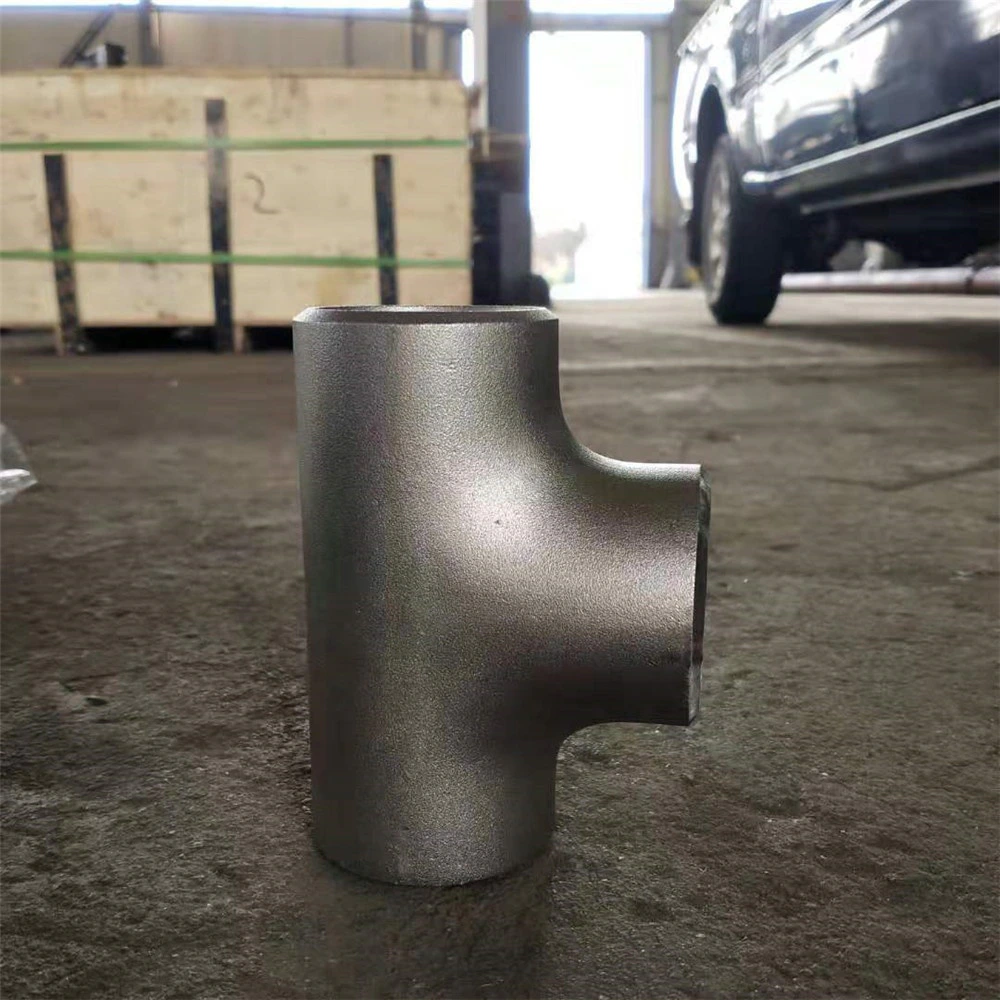

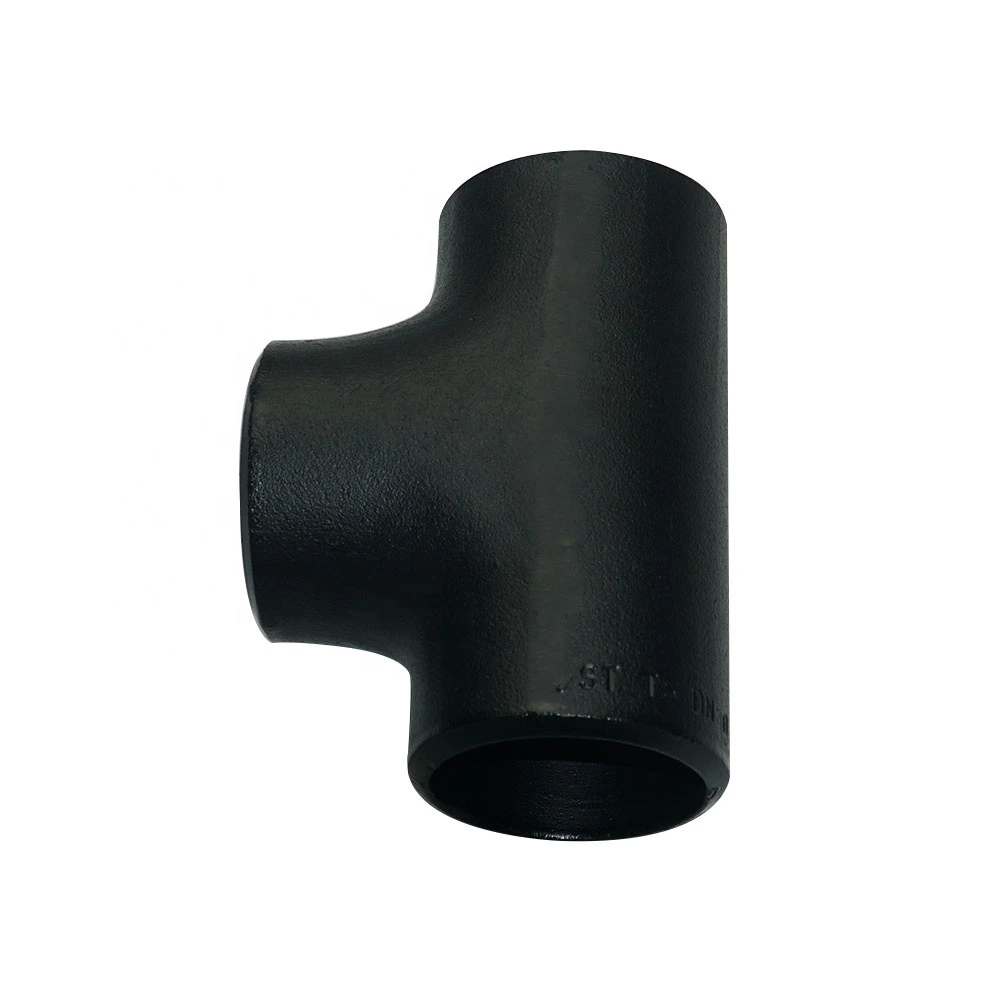

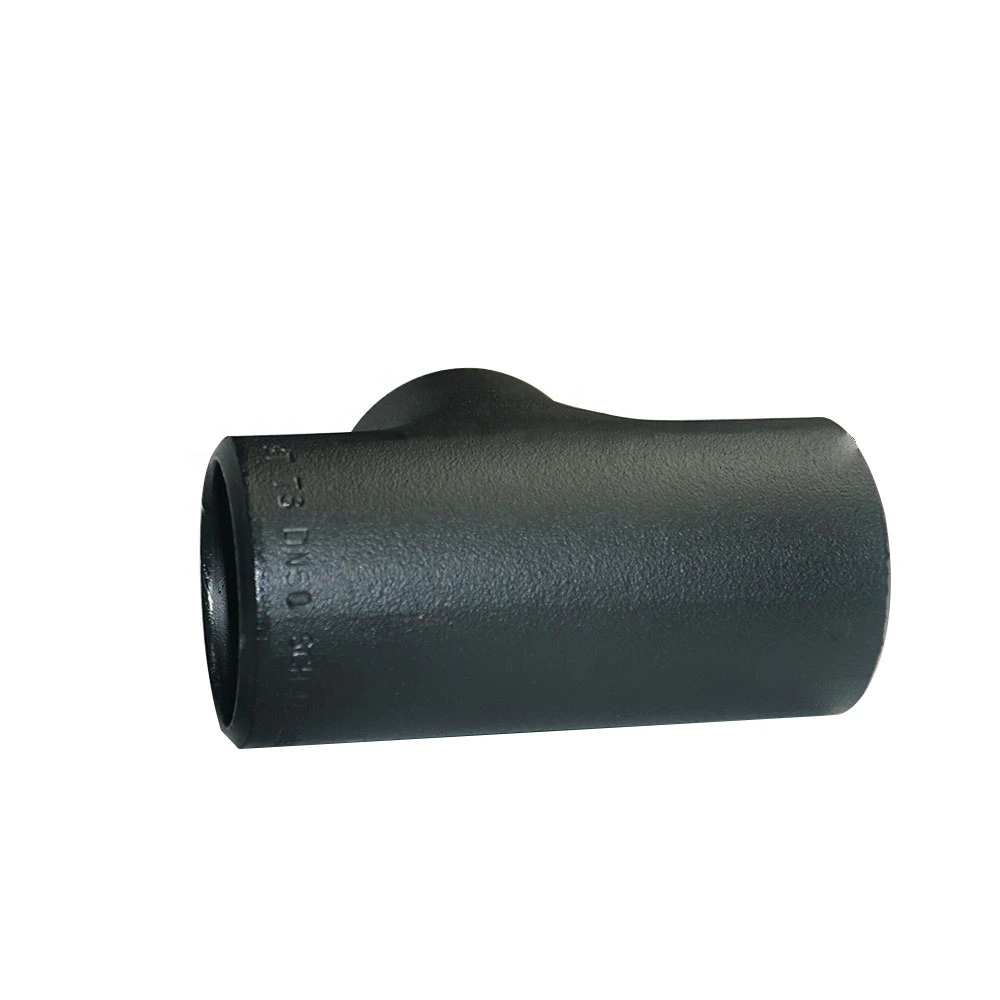

24-Inch SCH40 Carbon Steel Equal Butt Weld Tee
산업 소싱용
명확한 RFQ 준비
RELIA가 부품을 이해하고 다음 단계를 논의할 수 있도록 아래 정보를 포함하세요.
- 도면, 샘플 또는 참고 표준
- 재질 등급 및 선호 공정
- 치수, 공차 및 표면 처리
- 용도, 목표 수량 및 목적지
생산 일정, 포장 및 운송 조건은 사양과 거래 조건 합의 후 프로젝트별로 확정됩니다.
-
warranty1 Yearcustomized supportOEM
-
TechnicFORGEDConnectivityWelding
-
shapeEqualhead codeHexagon
-
Overall LengthCustomized SizeHeightCustomized Size
-
Surface TreatmentPlainPressureHigh Pressure
-
System of MeasurementMetricMounting hole diameterCustomized Size
-
Pipe FeaturesOtherPipe ClassOther
-
ApplicationOtherThread TypesCustomized Size
This 24-inch SCH40 carbon steel equal butt-weld tee enquiry has inconsistent catalogue family information. The title and table describe a tee/Equal context, but both actual variants are labelled Reducer. Confirm the ordered component and accepted drawing before using the selected option for procurement.
Allocate the 24-inch tee and SCH40 requirement
Ask which configuration the supplier actually offers and obtain its run/branch geometry. Existing Reducer labels remain unchanged. The shared half-inch-to110-inch range does not separately select a 24-inch tee or establish availability of every run/branch combination; identify all nominal ends explicitly.
Confirm outside diameters, bores, equal or reducing dimensions, actual wall thickness, center-to-end measurements and tolerances. Allocate SCH40 to the selected size through accepted records. It is a wall reference rather than a numerical pressure guarantee. Agree butt-weld preparation and matching pipe-wall requirements.
Complete custom fields and material traceability
Length, height, mounting-hole diameter and thread fields state Customized Size. Request actual dimensions and connection details; those entries do not establish a hole feature or thread standard. Clarify Hexagon against the drawing. No exact dimensional standard is recorded, so agree the governing specification explicitly.
Obtain full carbon steel designation, condition, traceability and certificates, with WPB allocation where the a234wpb option is selected. Request records supporting SMLS/seamless and forged wording. Define inspection of the plain surface rather than assuming a protective coating or a certified process from appearance.
Approve oil or irrigation service individually
High Pressure and Other class leave numerical duty unconfirmed. State the actual medium, pressure, temperature, cycling, loads and compatibility. Obtain system acceptance after family/geometry reconciliation, then agree joining, alignment, inspection, marking, material/process/dimensional records, individual supply and quotation scope.
모든 제품 문의에 필요한 기술 정보
최종 제품 확정 전에 요구사항을 준비하세요.
제품 페이지는 출발점입니다. 재고 매칭 또는 맞춤 생산 확정 전에 도면, 샘플, 인터페이스, 소재, 수량, 검수 요구사항을 검토합니다.
프로젝트 상황에 맞춰 이 제품을 상담하세요.
도면, 샘플, 참조품, 목표 수량, 용도 정보를 공유하세요. 미확정 항목은 검토 상태로 둘 수 있습니다.
