Large Displacement Flexible Stainless Steel 304 316 Bellow Metal Expansion Joint with Flanges Connection
산업 소싱용
명확한 RFQ 준비
RELIA가 부품을 이해하고 다음 단계를 논의할 수 있도록 아래 정보를 포함하세요.
- 도면, 샘플 또는 참고 표준
- 재질 등급 및 선호 공정
- 치수, 공차 및 표면 처리
- 용도, 목표 수량 및 목적지
생산 일정, 포장 및 운송 조건은 사양과 거래 조건 합의 후 프로젝트별로 확정됩니다.
상품 설명
-
warranty1 yearcustomized supportOEM, ODM
-
model numberBEJTechnicForged
-
ConnectivityFlangeshapeEqual
-
head codeRoundOverall LengthAccording to requirements
-
HeightAccording to requirementsSurface TreatmentAccording to requirements
-
System of MeasurementinchMounting hole diameterAccording to requirements
-
Pipe FeaturesFlexiblePipe ClassAccording to requirements
-

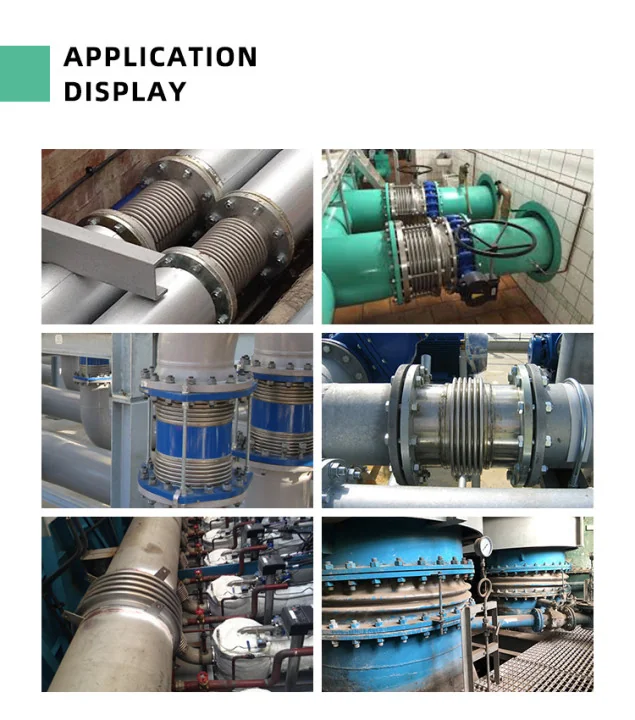

Applicationbuilding water supply and drainage, natural gas pipeline installation, plumbing & water supply, natural gas & petroleum industry, oil & gas industry, water supply and drainage systemsProduct nameBellow Metal Expansion Joint with Flanges Connection
-
Working PressurePN10 - PN40Maximum Temperature-10℃ - +300℃
-
Applicable mediaWater, hot water, steam, oil, air, etcFlange StandardsANSI, DIN, JIS, etc
-
Nominal diameterDN50 - DN3000Flange materialStainless steel 304, 316,etc.
-
Bellows materiaStainless steel 304,316,etc.Axial compention dosage± 3.5 mm
-
ManufacturerYes, factory add: Gongyi City,China
