Name: GOST 12820 Steel Pipe Flanges | Welded/Plate Enquiry
SKU: 191284014191284006191284229
Price: 5.60 USD
Availability: InStock

Surface Treatment

Polished

model number

4056
Application

Industrial Equipment

Bolt Hole Diameter

1/2"
Bolt Hole Quantity

4

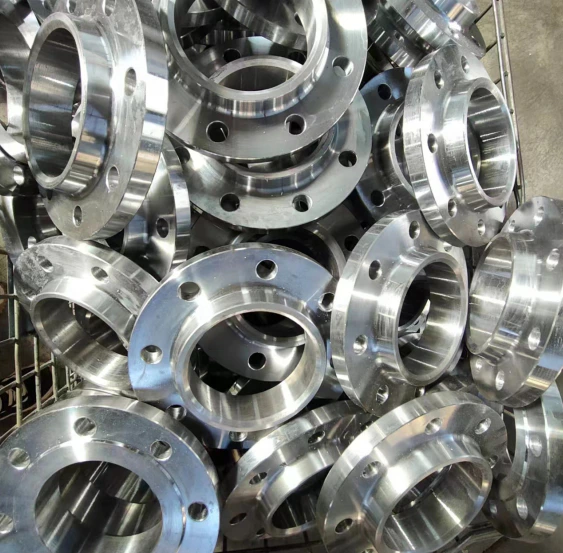

This GOST 12820 steel pipe-flange listing uses welded/plate wording for an industrial equipment enquiry. Model4056 and Polished are table references. Establish the actual component being quoted before assigning construction or conformity: the reference images include necked forms and a separate flange with visible internal bore threads.

Resolve welded, plate and actual type choices

Thirty-six catalogue combinations span four materials and nine flange types. Plate appears in the title rather than as a separate selectable type. Choose the actual material/type and agree its attachment; the threaded reference image does not establish that all configurations are welded.

Specify full material designation, grade, condition and traceability. The common half-inch-to120-inch label does not establish continuous size availability. Confirm the individual requested nominal size, measurement convention and supply, and reconcile the title terminology with the selected component drawing.

Define the GOST dimensional and bolting requirements

Identify the GOST 12820 document, edition and applicable size, construction, material and class provisions. No numerical pressure class is recorded. Obtain bore/pipe interface, outside diameter, thickness, hub/neck or plate configuration, attachment details, facing dimensions and tolerances for the actual component.

Allocate the table’s four half-inch bolt-hole entries to the selected drawing. Confirm bolt circle and actual hole count/diameter rather than extending these entries across all variants or photographs. Agree which surfaces are polished and how finish is inspected; no corrosion or hygiene performance follows from that wording.

Agree the complete connection and acceptance evidence

State medium, pressure, temperature, cycling and external loads. Confirm material/sealing compatibility, mating flange, gasket, fasteners and applicable welding or threaded attachment requirements. Agree alignment, installation inspection, material/manufacturing/conformity documents, marking and confirmed individual-size supply before accepting the quotation.
