PN16 Flange for Industrial Piping
산업 소싱용
명확한 RFQ 준비
RELIA가 부품을 이해하고 다음 단계를 논의할 수 있도록 아래 정보를 포함하세요.
- 도면, 샘플 또는 참고 표준
- 재질 등급 및 선호 공정
- 치수, 공차 및 표면 처리
- 용도, 목표 수량 및 목적지
생산 일정, 포장 및 운송 조건은 사양과 거래 조건 합의 후 프로젝트별로 확정됩니다.
-
warranty1 yearcustomized supportOEM, ODM, OBM
-
TechnicForgedConnectivityWelding
-
shapeEqualhead codeHexagon
-
Surface TreatmentPaintingMounting hole diameter0.26 in
-
Pipe Class150SizeCustomized Size
-
Product nameElbow
This ASME SA182 F316 PN16 flange enquiry requires a documented material and conformity package. Clarify the carbon-steel reference and any applicable PED requirements before ordering. Listing terminology does not establish supplied certification, an accepted material allocation or numerical operating capability.
Request evidence for the named component
Select one of the fifteen actual Flange choices: each 10 mm, 12 mm, 14 mm, 50 mm and 30 mm label is offered with Stainless Steel, Alloy or Carbon Steel. Define the size label's nominal or measured role, then specify material designation, grade, condition and traceable inspection records.
Identify the applicable SA182 document, edition and component requirements. Do not assume F316 conformity for every material alternative. For PED-related requirements, obtain the relevant documents, product scope, identifiers, responsible issuing parties where applicable and evidence linking the supplied item to those records. Review the actual coverage before accepting a certification claim.
Define the flange beyond its photographs

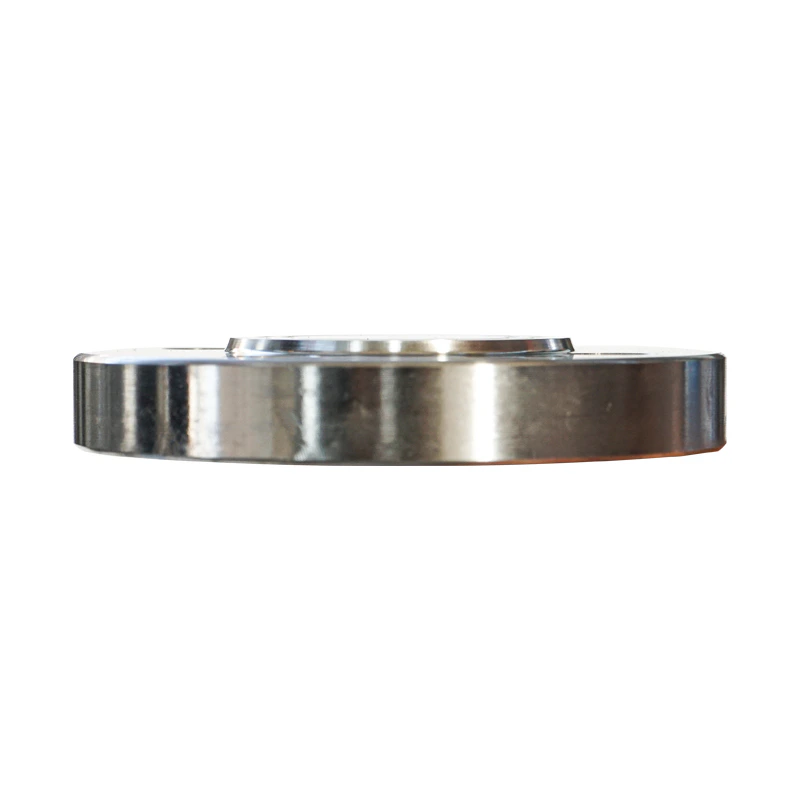

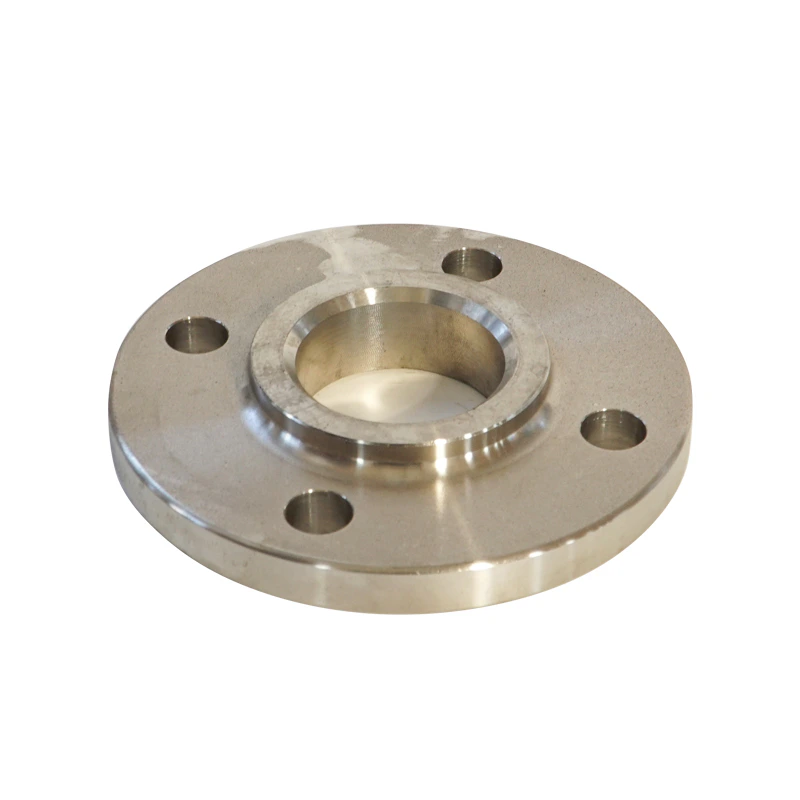

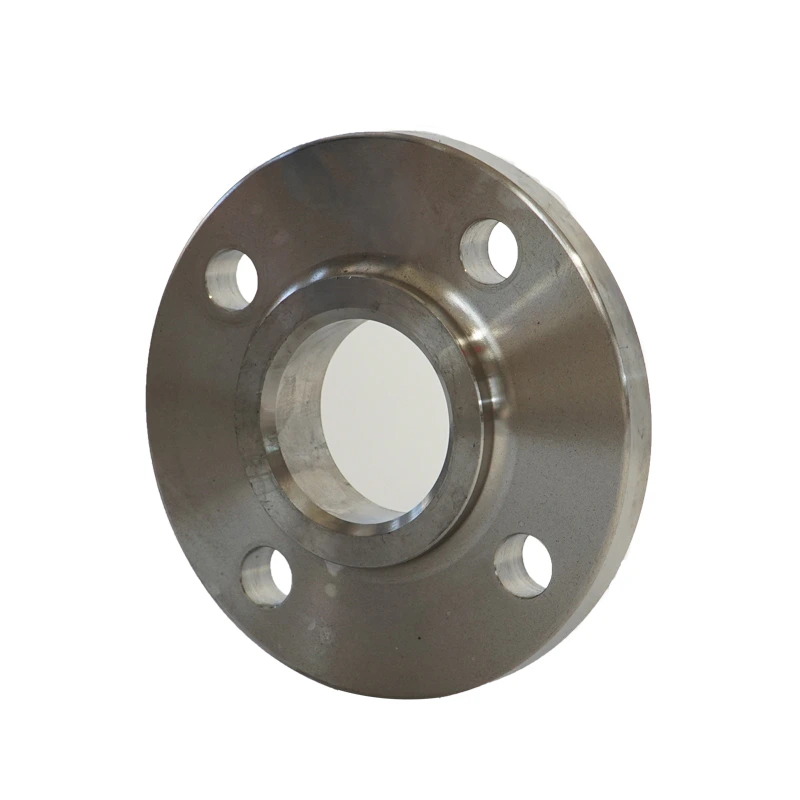

The inspected views show an open-bore drilled component with a raised central annulus and a side profile. They cannot certify grade, production or a standardized facing. Confirm supplied subtype, pipe attachment and mating construction on an approved drawing.
Include bore, outside diameter, thickness, relevant annular geometry, bolt circle, hole quantity and diameters, sealing-face finish and tolerances. The separate 0.26-inch mounting-hole entry is insufficient for complete drilling. Customized Size and Equal/Hexagon wording require acceptance against the agreed geometry.
Agree inspection coverage and actual duty
Obtain relevant forged-production records, component-specific welding requirements and defined painting coverage with functional-surface exclusions. Establish governing material-temperature conditions for PN16 and Class 150 without assumed equivalence. State medium, pressure, temperature, cycling and loads; agree mating flange, gasket, bolting, installation, inspection, OEM/ODM/OBM deliverables and stated one-year warranty terms.
모든 제품 문의에 필요한 기술 정보
최종 제품 확정 전에 요구사항을 준비하세요.
제품 페이지는 출발점입니다. 재고 매칭 또는 맞춤 생산 확정 전에 도면, 샘플, 인터페이스, 소재, 수량, 검수 요구사항을 검토합니다.
프로젝트 상황에 맞춰 이 제품을 상담하세요.
도면, 샘플, 참조품, 목표 수량, 용도 정보를 공유하세요. 미확정 항목은 검토 상태로 둘 수 있습니다.
