ASME B16.5 A105 Carbon Steel Blind Flange Class 300, CNC Machined
산업 소싱용
명확한 RFQ 준비
RELIA가 부품을 이해하고 다음 단계를 논의할 수 있도록 아래 정보를 포함하세요.
- 도면, 샘플 또는 참고 표준
- 재질 등급 및 선호 공정
- 치수, 공차 및 표면 처리
- 용도, 목표 수량 및 목적지
생산 일정, 포장 및 운송 조건은 사양과 거래 조건 합의 후 프로젝트별로 확정됩니다.
-
Surface TreatmentCNC MachinedApplicationConstruction
-
Bolt Hole Diameter1/2"~24"Bolt Hole Quantity6
The ASME B16.5 A105 carbon steel Class 300 blind flange enquiry concerns a closure for a machinery pipe joint. Start with the selected blind geometry and mating assembly so the closure, gasket and fasteners can be assessed together.
Specify the blind closure and selected size
A blind flange requires accepted solid closure geometry, thickness, facing and gasket contact dimensions. Confirm the supplied construction explicitly: the twelve actual variants also include weld-neck, slip-on, socket-weld, lap-joint and threaded forms in Carbon Steel or Stainless Steel.

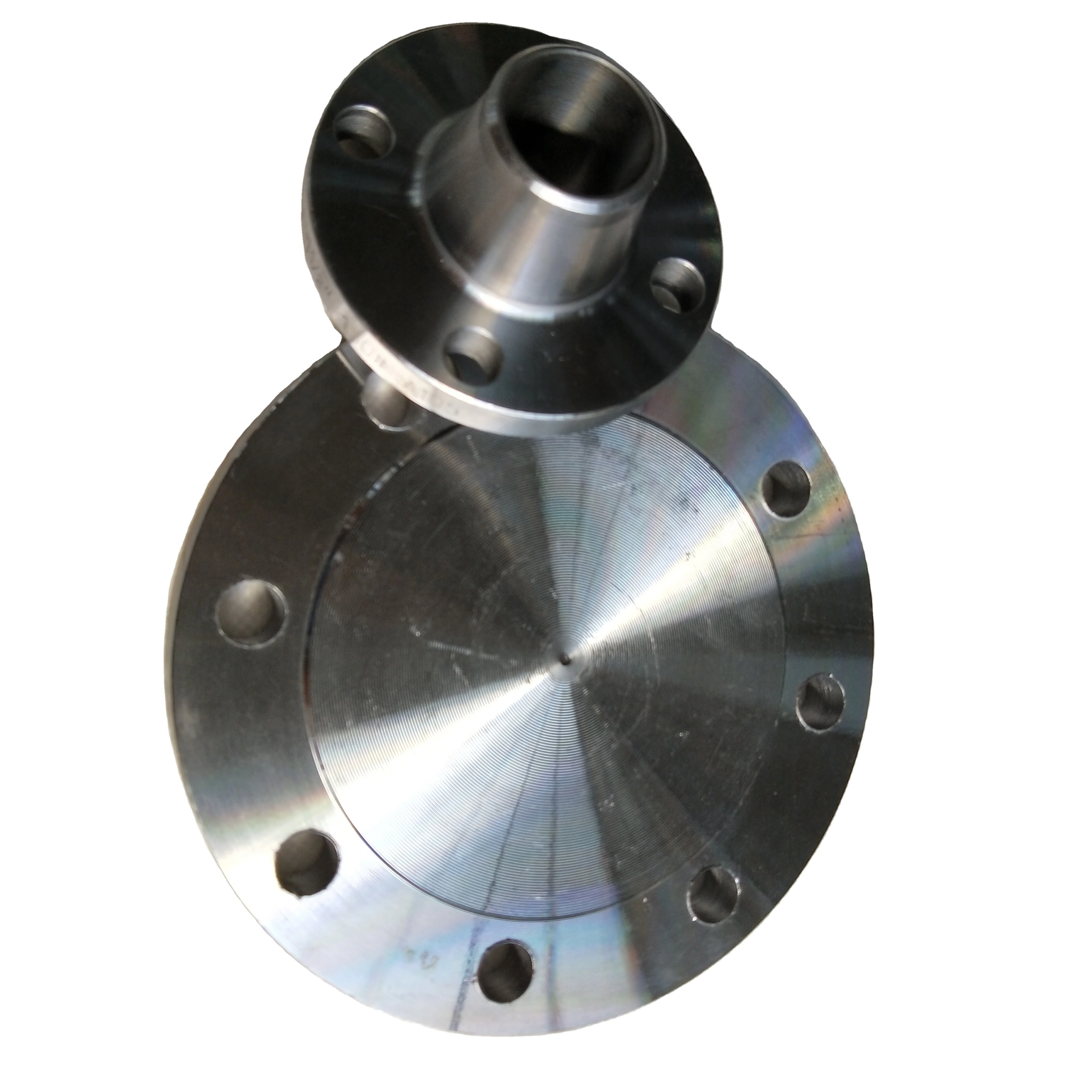

The shared 1/2"~24" size range does not establish discrete available sizes. Two viewed images show a solid blind flange alongside open-bore constructions. These references help distinguish shapes without proving the selected closure's dimensions, grade or pressure class.
Verify drilling instead of assuming six holes
Obtain outside diameter, thickness, facing type and finish, bolt circle, hole quantity, hole diameter and tolerances on the accepted drawing. Six-hole wording and the table quantity 6 cannot establish drilling for every size in the offered range. The repeated Bolt Hole Diameter range also cannot substitute for a measured hole dimension.
Agree the applicable B16.5 edition, scope and selected Class 300 compliance basis. Class 300 is not one constant operating pressure; material and temperature must be considered when accepting the complete joint envelope.
Accept A105 evidence and machinery service
A105 requires the selected carbon steel specification, product form, condition and traceable material/inspection documents. It cannot certify a stainless alternative. CNC-machined surfaces do not independently prove dimensional tolerance, heat treatment or corrosion performance.
For machinery or construction duty, identify medium composition, pressure, temperature, cycling and closure loads. Supply the exact blind/interface drawing, material records, standard/class evidence, surface requirements and mating gasket/fastener details. Evaluate these requirements together before accepting interchangeability or the installed operating conditions.
